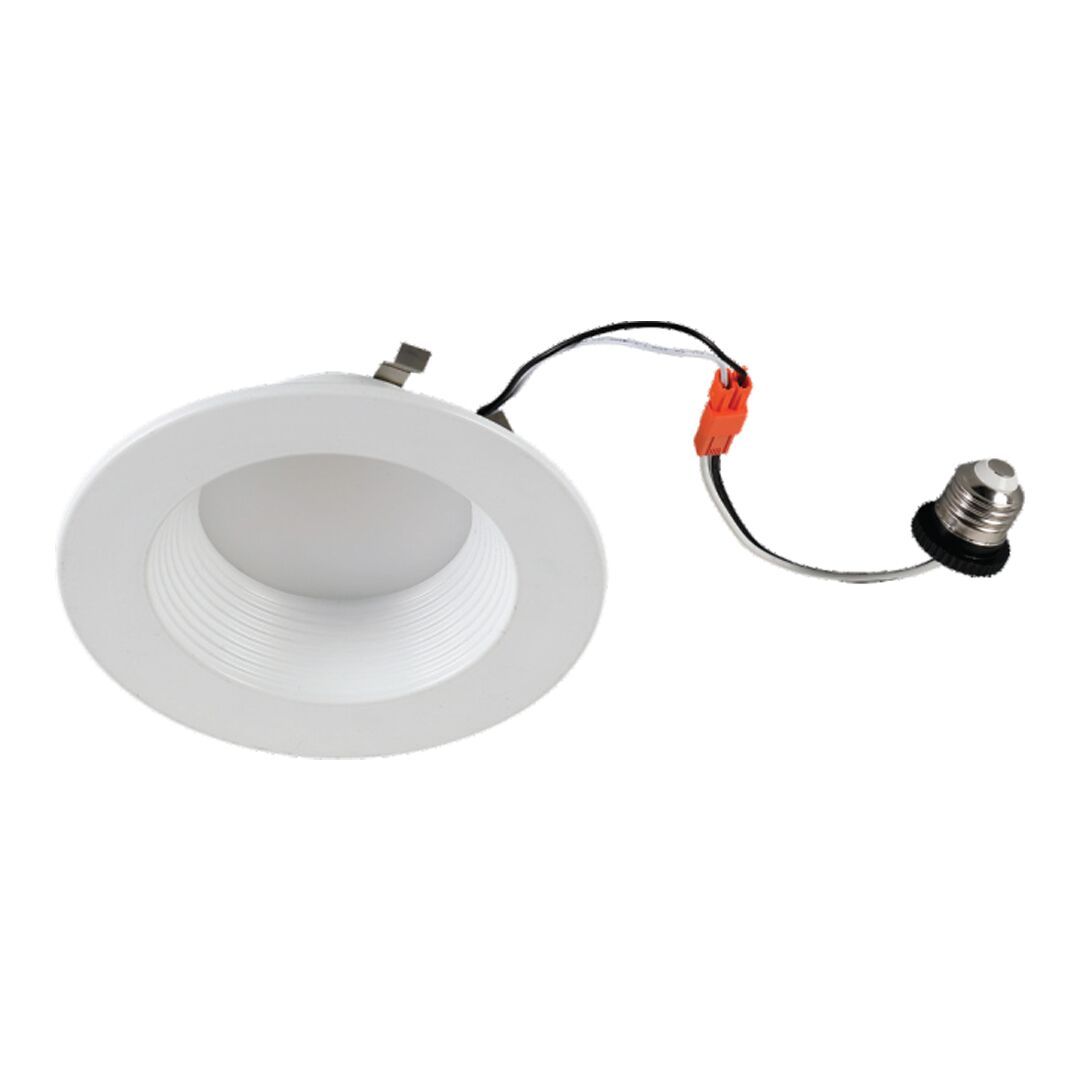

Retrofit Downlight in 6 inches
Wattage: 15W
Max Lumens: 1,470lm
CCT: 2700K/3000K/3500K/4000K/5000K
Features & Benefits
- Selectable CCT for optimal customization
- Operating temperature: -20°C to +45°C
- Rated life of 50,000 hours, offering a 5-year warranty
- ETL Listed for dry and damp locations
Performance Data
| 2700K (80 CRI) | 3000K (80 CRI) | 3500K (80 CRI) | 4000K (80 CRI) | 5000K (80 CRI) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-DLR-15W-MCCT-6 Inch | 15W | 0.200A | 1,076lm | 71.7 lm/W | 1,190lm | 79.3 lm/W | 1,332lm | 88.8 lm/W | 1,470lm | 98.0 lm/W | 1,460lm | 97.3 lm/W |
Product Summary
For Home, Lobby, Common Area, and Offices. Available in Wattages- 15W and Selectable CCT.
The 6-inch Retrofit Downlight combines performance, flexibility, and ease of installation for modern lighting upgrades. Designed to integrate smoothly into existing downlight fixtures, it eliminates the need for structural changes while enhancing visual appeal. With selectable CCT and high efficacy output reaching 1,230 lumens, it supports optimized lighting across commercial interiors. Its aluminum powder-coated housing ensures long-lasting durability, while a 50,000-hour rated life and a 5-year warranty deliver peace of mind.
Application:
Home, Lobby, Common Area, Office, and Shopping Malls
Product Specification
Efficacy 82 lm/W
CCT Options 2700/3000/3500/4000/5000K
CRI 80
Beam Angle 120°
Input Voltage 120 Vac
Power Factor (PF) >0.8
THD <50
Dimming Triac
Operating Temp. -20°C to +45°C
Warranty 5 Years
Finish White
Mounting Retrofit in E26 Lamp holder
Housing Material Aluminum Powder Coated
Lens Type Diffuser
FAQ
Frequently Asked Questions (FAQ's)
What performance can I expect from this 6″ retrofit downlight?
This 6″ retrofit downlight delivers bright, uniform illumination up to ~1,230 lumens at ~82 lm/W. Selectable CCT allows tuning to specific environments like offices, lobbies, or common areas.
Can this downlight be used in damp environments?
Yes, its ETL rating covers use in dry and damp locations, making it suitable for most interior spaces where occasional moisture is present.
What is the lifecycle and warranty?
This LED downlight is rated for up to 50,000 hours of service life with an included 5-year warranty, offering long-term performance and minimal maintenance.
