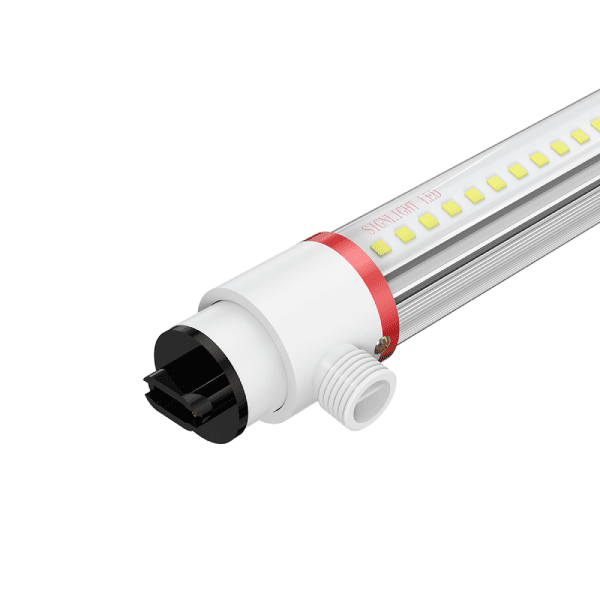

Rapid Lamp Generation 2 – Double-Sided LED Sign Tube Retrofit Kit

Designed for extreme weather conditions, the Gen 2 LED sign tubes are highly durable and water-resistant. Ideal for outdoor billboards, coastal and high-altitude signs. It offers intense brightness, low maintenance, and energy efficiency, making it a cost-effective and sustainable solution.

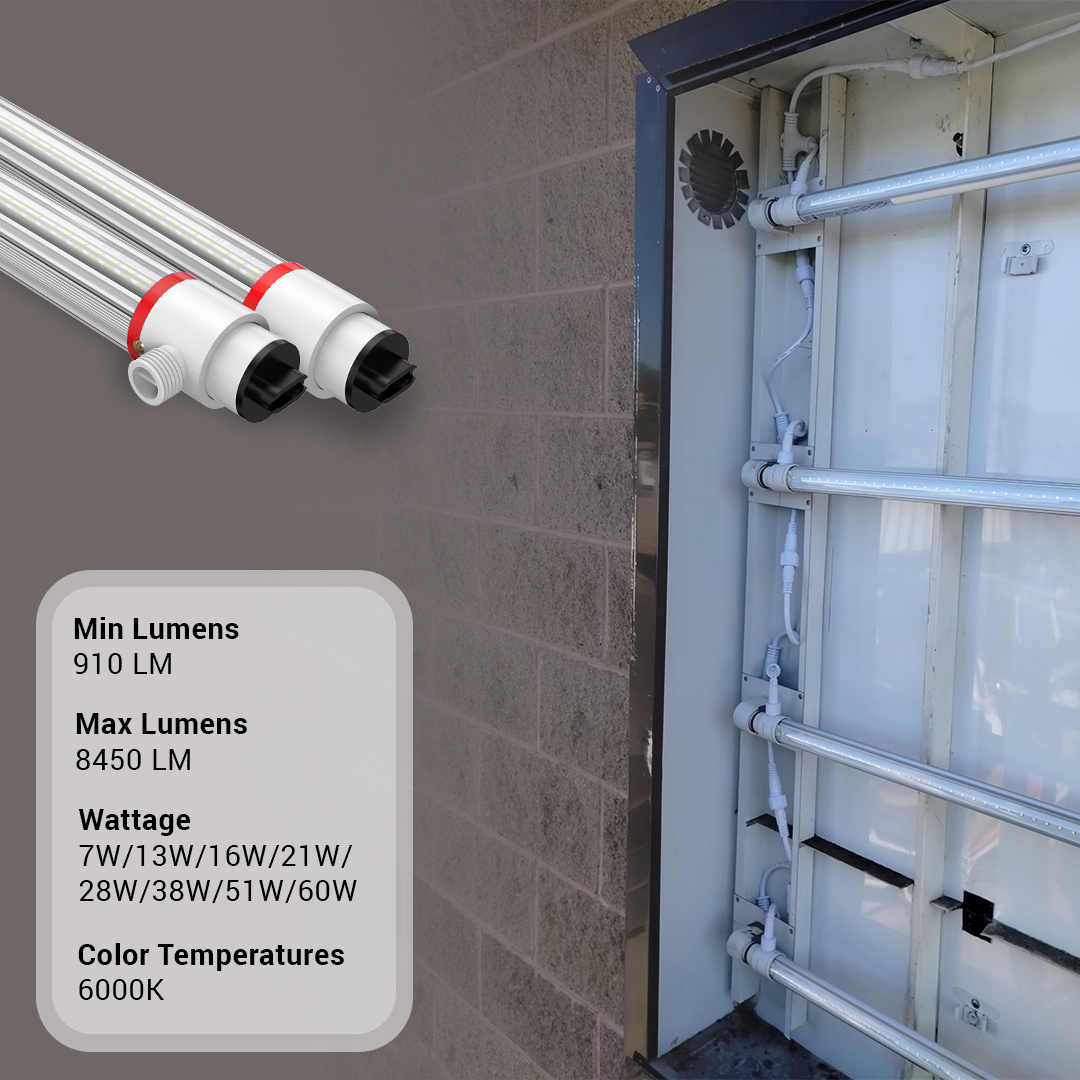

Our patented LED Sign lamps offer better heat dissipation, more vibrant lighting, more durability and significant cost savings over the life of your sign. Easiest install ever. Simply cut the power, remove the old bulbs, cut the power leads to the existing ballast and remove the ballast entirely, insert the new generation 2 patented LED lamps from Havells Lighting. Once done with connecting the power and lamps installed, close the sign case to finish your simple installation. Available in sizes from F-18 to F-120. Our revolutionary design enables you to spend less time on the sign installation and more time making sure your job is right the first time.

Available Sizes:

F18, F24, F30, F36, F42, F48, F60, F64, F72, F84, F96, F108, F117, F120

Category:

Resources & Downloads


Specsheets

Variations

Model Name Tube Size Input Voltage WATTAGE Lumens Cover
2SL07T10XX0450 F18 AC100-277V 7W 910lm Clear -
2SL13T10XX0600 F24 AC100-277V 13W 1560lm Clear -
2SL13T10XX0750 F30 AC100-277V 13W 1690lm Clear -
2SL16T10XX0900 F36 AC100-277V 16W 2080lm Clear -
2SL21T10XX1050 F42 AC100-277V 21W 2700lm Clear -
2SL21T10XX1200 F48 AC100-277V 21W 2730lm Clear -
2SL28T10XX1500 F60 AC100-277V 28W 3640lm Clear -
2SL28T10XX1600 F64 AC100-277V 38W 3640lm Clear -
2SL38T10XX1800 F72 AC100-277V 38W 4750lm Clear -
2SL38T10XX2100 F84 AC100-277V 38W 4750lm Clear -
2SL51T10XX2475 F96 AC100-277V 51W 6630lm Clear -
2SL51T10XX2700 F108 AC100-277V 51W 6630lm Clear -
2SL60T10XX2925 F117 AC100-277V 60W 8450lm Clear -
2SL60T10XX3000 F120 AC100-277V 60W 8450lm Clear -

Features & Specifications


  • Innovative LED Technology in Sign Retrofitting
  • Patented Technology
  • Designed to retrofit any Sign(any size) in less than 30 minutes
  • Retrofit kit-Super bright, efficient LED light, light output over 700lm/ft
  • Lower energy consumption and Maintenance free.
  • Internal Power Supply-No need for any External LED driver or ballast.
  • Heat Dissipation-Super heat dissipation structure, lower luminous decay, longer lifespan

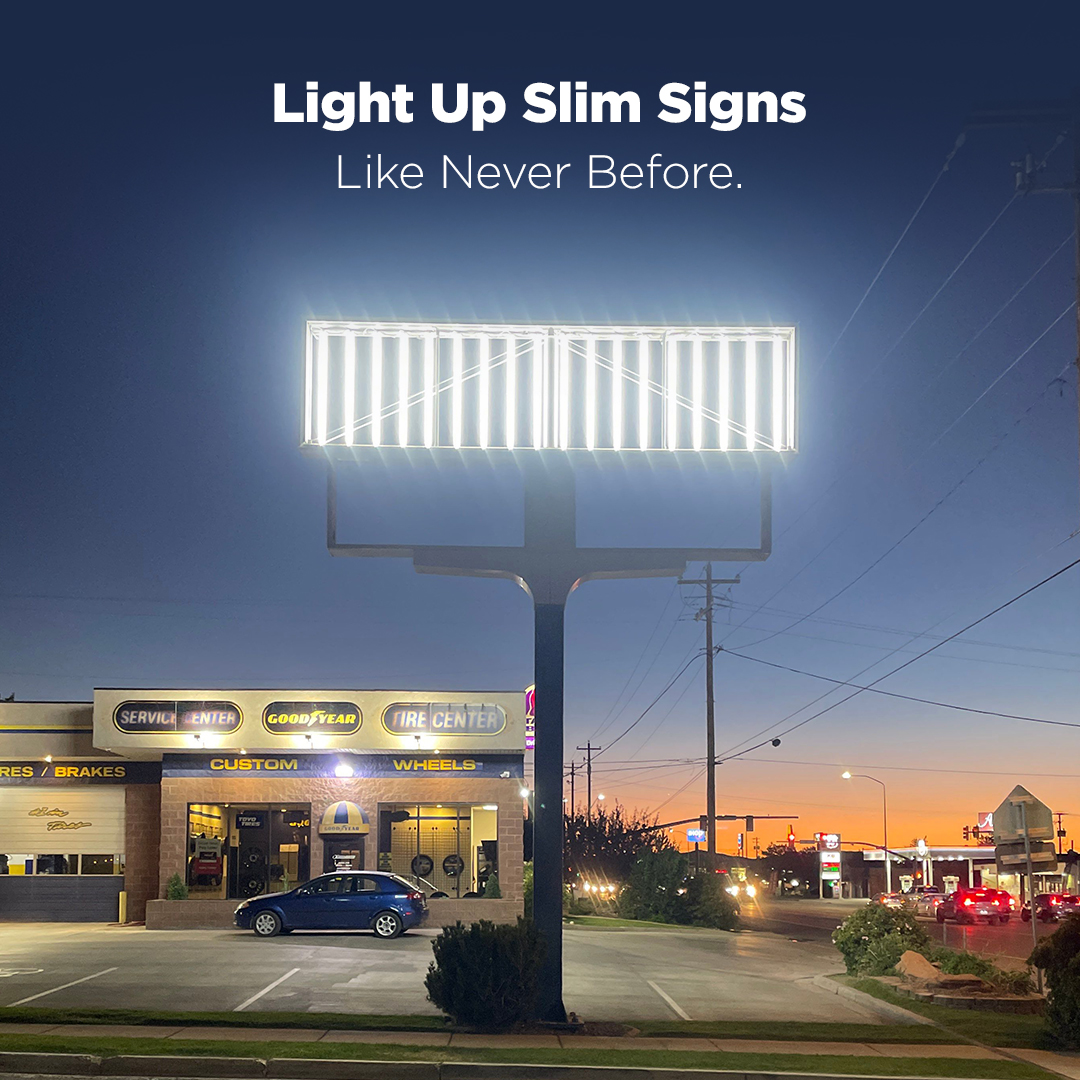

  • Two sides illumination-Circular Tube with two sided LEDs, creates a wider illumination and it’s an ideal solution for Pylon & Monument Signs
  • Multiple Size available for any of the application.
