Linear Highbay

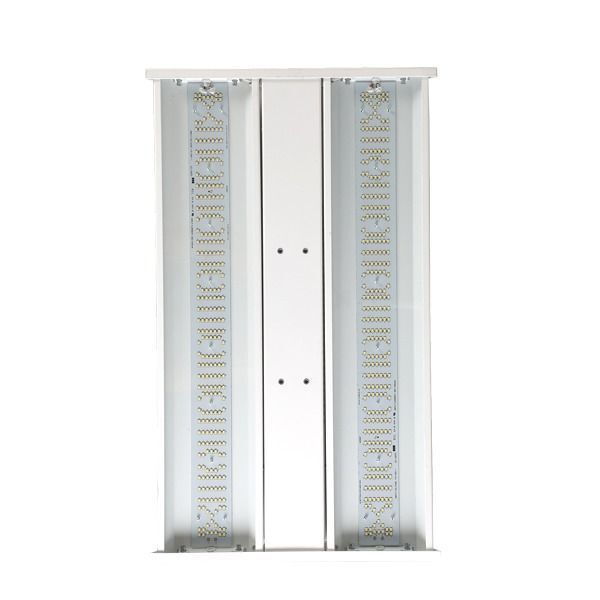

LED Linear High Bay Gen 1

Our industrial-style LED Linear High Bay lights, perfect for high ceiling spaces, are the best replacements for 2-4-6-8 lamp T5 or T8 highbay fixtures. These are good slim looking fixtures, comes handy with mounting accessories. Additional motion or microwave sensors can be incorporated, and dimming capability can be added based on facility requirements. this is also perfact fit for gym and high ceiling retail and grocery stores. can also be used in garge bays, warehosue, indutrial facility also.

Application :

High Ceiling Retail Area, Warehouses, Factories & assembly lines, Industrial spaces

Category:

Variations

Product Code CRI CCT LUMINOUS FULX (LM) EFFICACY (LPW) WATTAGE LIFE OF PRODUCT
KLHV5K 130W >80 Ra 5000 K 17128 LM 133.3 lm/w 130 50,000 Hrs
KLHV5K 180W >80 Ra 5000 K 22605 LM 125.3 lm/w 180 50,000 Hrs
KLHV5K 210W >80 Ra 5000 K 31691 LM 155.4 lm/w 210 50,000 Hrs
Max Lumens

22605 LM

Min Lumens

17128 LM

Color Temperatures

5000K

Additional Options
5 Years Warranty
dlc listed logo
etl listed logo
Made in India

Features & Specifications


  • Delivers Excellent Illumination.
  • Longlife & Photobiologically Safe LED’s.
  • High-Performance Electronic Driver for Good Reliability of the Product.
  • No Harmful UV & IR Radiations.
  • Environment Friendly as LEDdoes not Contain Mercury.
  • UV-protected Pure Polyester Powder Coating.
  • Clear Toughened Glass for High IK Rating and Maximum Lumen Output.
  • UL Certified Built-in, Electronic LED driver, THD<10%, Over Voltage Protection, Surge Voltage Protection 4kV.
