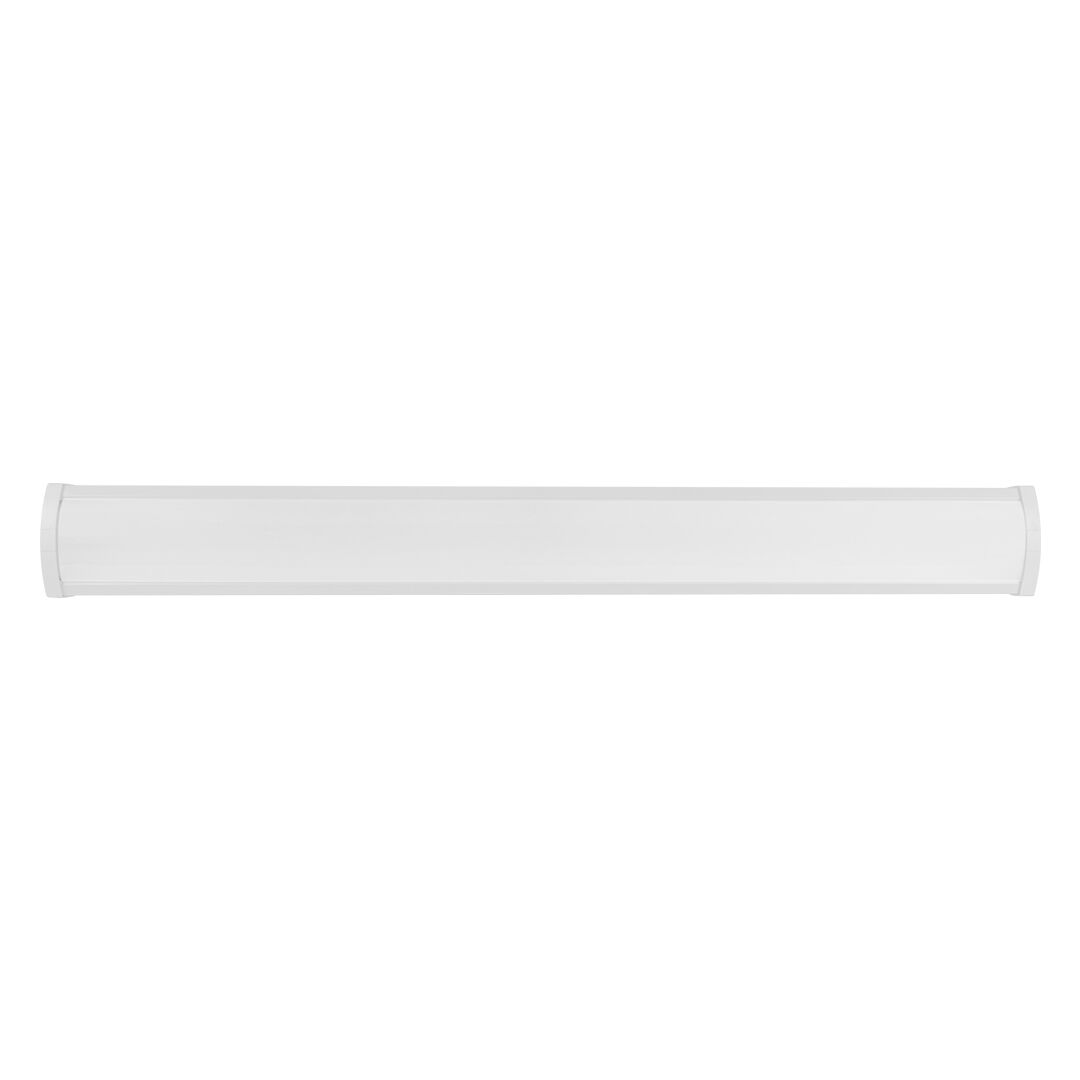

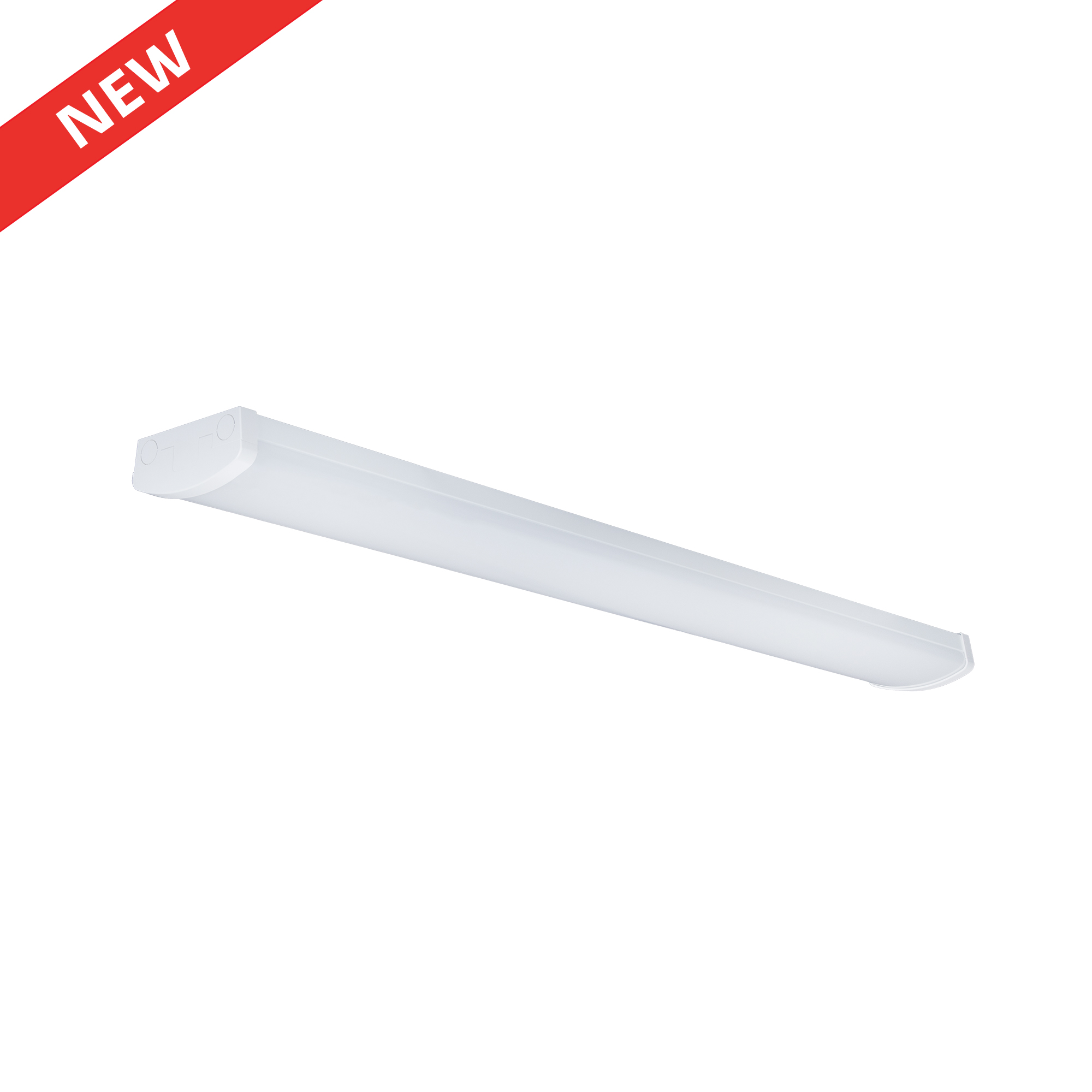

LED Wrap Fixture
Wattage: 38W/31W/24W/17W
Max Lumens: 5,700lm
Features & Benefits
- Selectable On- Site 5 CCT & 4 Wattage with 0-10V Dimming Capability
- Master Box with Individual 4 Packs Inside
- Suitable for Damp and Dry Locations with a 100,000-hour lifespan
- Flexible Mounting for Recessed (Standard), Drywall, Surface, and Suspended
- DLC 6.0 Premium and UL Certified
Performance Data
| 3000K (>80 CRI) | 3500K (>80 CRI) | 4000K (>80 CRI) | 5000K (>80 CRI) | 6500K (>80 CRI) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-WA-4MW-5MCCT-38W-4 Feet | 17W | 0.16A@120V/0.07A@277V | 2,516lm | 148 lm/W | 2,516lm | 148 lm/W | 2,533lm | 149 lm/W | 2,601lm | 153 lm/W | 2,516lm | 148 lm/W |
| 24W | 0.22A@120V/0.10A@277V | 3,528lm | 147 lm/W | 3,528lm | 147 lm/W | 3,552lm | 148 lm/W | 3,648lm | 152 lm/W | 3,528lm | 147 lm/W | |
| 31W | 0.28A@120V/0.12A@277V | 4,526lm | 146 lm/W | 4,526lm | 146 lm/W | 4,557lm | 147 lm/W | 4,681lm | 151 lm/W | 4,526lm | 146 lm/W | |
| 38W | 0.35A@120V/0.15A@277V | 5,510lm | 145 lm/W | 5,510lm | 145 lm/W | 5,548lm | 146 lm/W | 5,700lm | 150 lm/W | 5,510lm | 145 lm/W | |
Product Summary
Perfect for Hallways, stairwells and basements. Available in selectable wattages: 38W, 31W, 24W, and 17W.
The Havells 4ft LED wrap fixture is built for everyday lighting for spaces where reliable lighting matters most. Its durable housing withstands tough environments while spreading light evenly and comfortably. On-site selectable from four wattages (17W / 24W / 31W / 38W) and five CCTs (3000K to 6500K), with dimming capability and 0-10V controls, delivering up to 5,700 lumens. Suitable for dry and damp locations with a 100,000-hour lifespan.
Applications:
Warehouses, Logistics Garages, manufacturing facilities, Retail, Commercial Offices, and Hotels.
