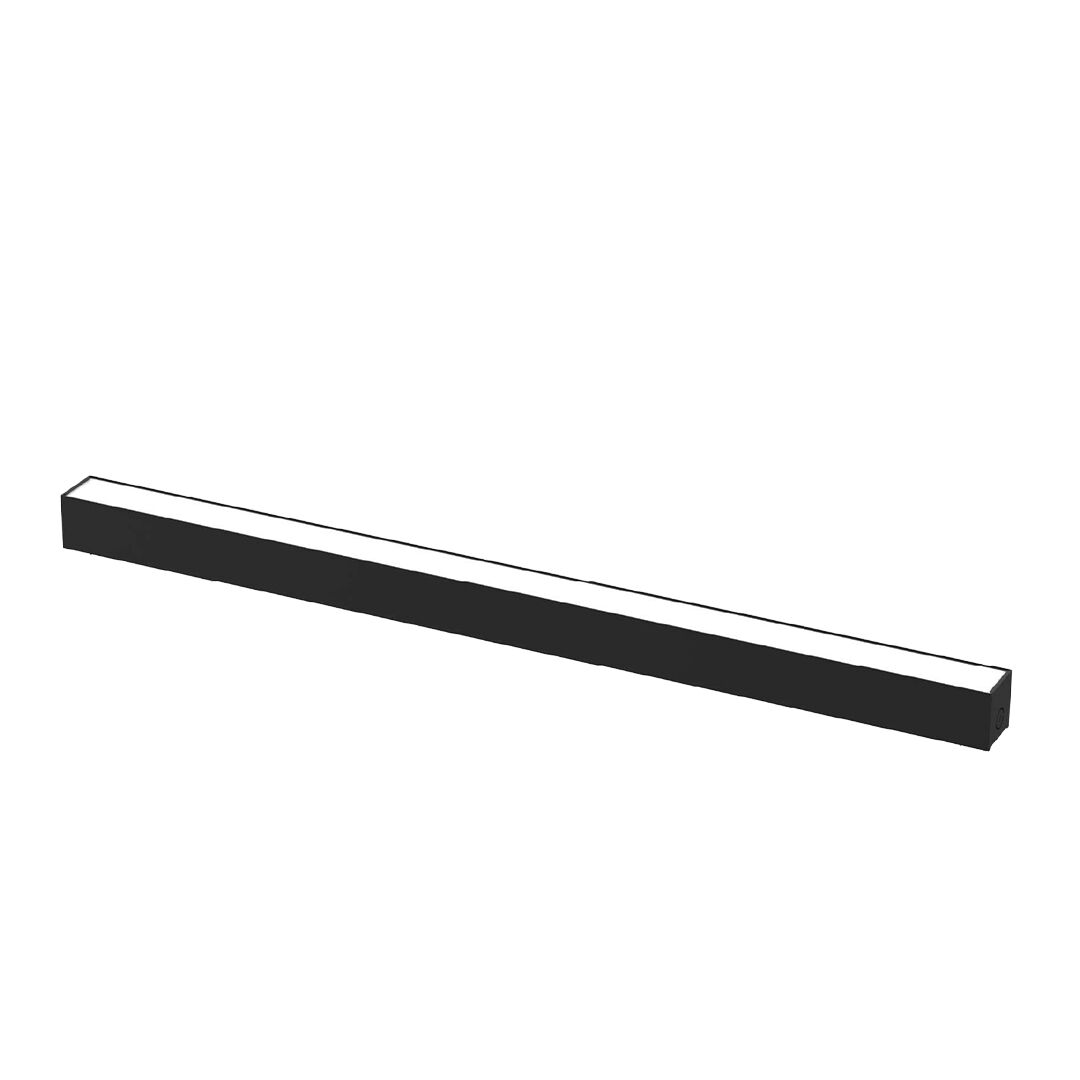

LED Linear Suspended Up & Down Light
Wattage: 55W/70W/85W
Max Lumens: 9,775lm
CCT: 3000K/4000K/5000K
Features & Benefits
- Up & Down Light, Two-sided illumination
- Up to 115 lm/W and 0-10V Dimming
- Selectable Wattage & CCT
- Multiple Mounting Options
Performance Data
| 3000K (80 CRI) | 4000K (80 CRI) | 5000K (80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-SSQ-MW-MCCT-85W-4 Feet-XX | 55W | 0.50A | 5,775lm | 105 lm/W | 6,600lm | 120 lm/W | 6,050lm | 110 lm/W |
| 70W | 0.60A | 7,210lm | 103 lm/W | 8,260lm | 118 lm/W | 7,560lm | 108 lm/W | |
| 85W | 0.72A | 8,500lm | 100 lm/W | 9,775lm | 115 lm/W | 8,925lm | 105 lm/W | |
Product Summary
For educational, retail, and hospitality spaces. Available in 55W/70W/85W wattages
The LED Linear Suspended Up & Down Light delivers efficient, versatile illumination with a sleek architectural design. Featuring selectable wattage and CCT, 0-10V dimming, it offers flexible performance for a variety of commercial and architectural spaces. Available in 4ft and 8ft configurations with multiple mounting and continuous-run options.
Applications:
Educational, Commercial, Hospitality, and Retail spaces.
Product Specification
Efficacy 115 lm/W
Beam Angle 110°
THD <20%
Operating Temp. -20°C to +40°C
Mounting Suspended
CCT (Selectable) 3000K / 4000K / 5000K
Input Voltage 120–277 Vac
Surge Protection 1kV
Warranty 5 Years
Housing Material Aluminum
CRI 80
Power Factor (PF) >0.9
Dimming 0-10V standard
Finish Black or White
Lens Type Up: PC | Down: PS
