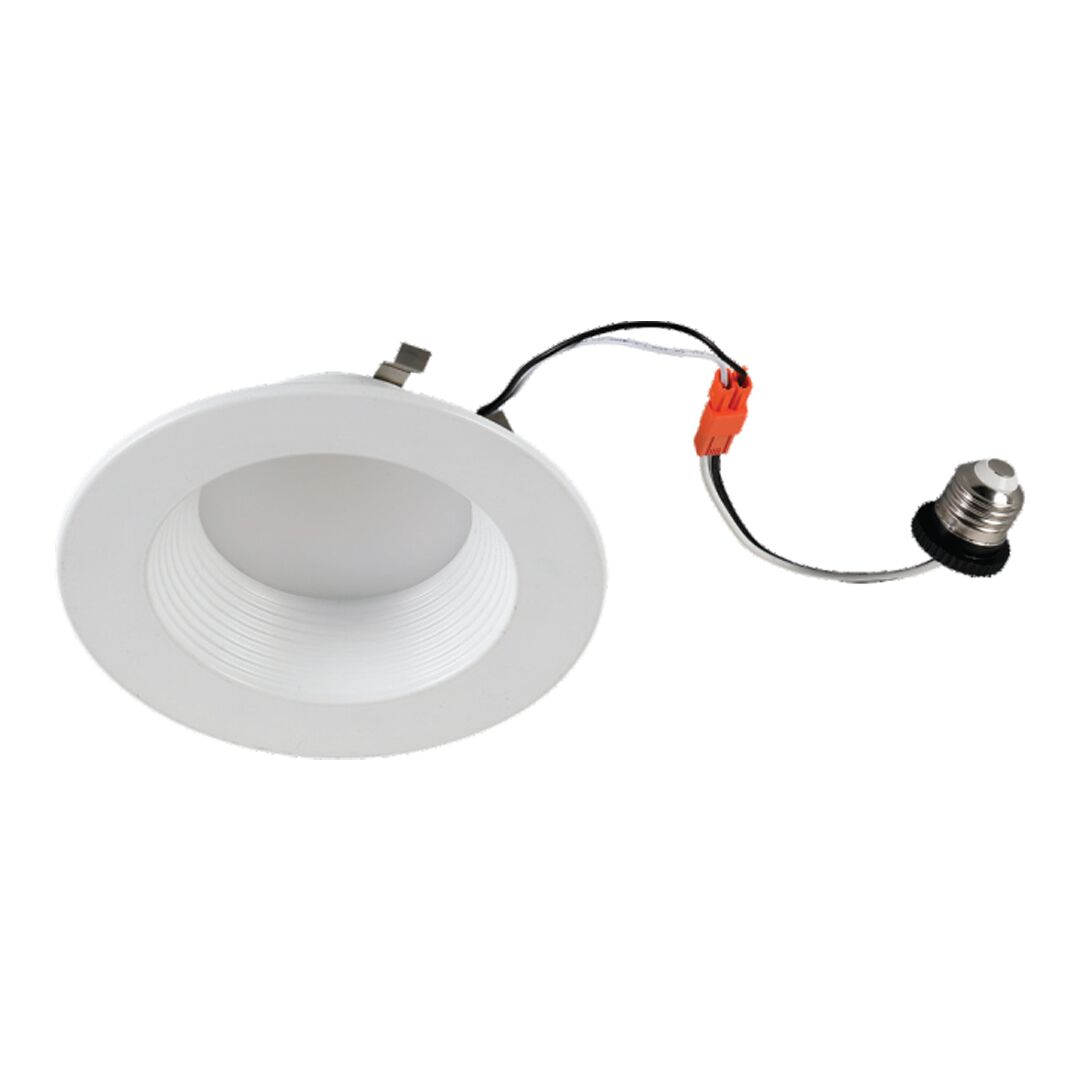

Retrofit Downlight in 4 inches
Wattage: 9W
Max Lumens: 842lm
CCT: 2700K/3000K/3500K/4000K/5000K
Features & Benefits
- Easy Retrofit Installation and Wide 120° Beam Angle
- E26 Adapter Compatible and Triac Dimming Selectable 5CCT
- No Housing Required for New Construction and Retrofit
- 50,000-Hour Rated Life
Performance Data
| 2700K (80 CRI) | 3000K (80 CRI) | 3500K (80 CRI) | 4000K (80 CRI) | 5000K (80 CRI) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-DLR-9W-MCCT-4 Inch | 9W | 0.085A | 635lm | 70.5 lm/W | 717lm | 79.7 lm/W | 808lm | 89.8 lm/W | 840lm | 93.3 lm/W | 842lm | 93.5 lm/W |
Product Summary
For Home, Lobby, Common Area, and Offices. Available in Wattages- 9W and Selectable CCT.
The LED retrofit Downlight provides a simple, energy-efficient way to upgrade existing recessed lighting with modern LED performance. Designed to fit compatible recessed fixtures, it offers selectable color temperature and triac dimming for flexible lighting control. Its clean, low-profile design provides a seamless finish while making it ideal for commercial and residential retrofit applications. With reliable performance and a long service life, it is a practical solution for upgrading existing downlight installations without extensive remodeling.
Application:
Home, Lobby, Common Area, Office, and Shopping Malls
Product Specification
Efficacy
82 lm/W
CCT Options
2700/3000/3500/4000/5000K
CRI
80
Beam Angle
120°
Input Voltage
120 Vac
Power Factor (PF)
>0.8
THD
<50
Dimming
Triac
Operating Temp.
-20°C to +45°C
Warranty
5 Years
Finish
White
Mounting
Retrofit in E26 Lamp holder
Housing Material
Aluminum Powder Coated
Lens Type
Diffuser
FAQ
Frequently Asked Questions (FAQ's)
What is the 4-inch retrofit downlight?
A retrofit downlight designed to replace existing 4 inch ceiling can fixtures with an LED module and driver. It fits into existing cut-outs without major remodeling and upgrades lighting to modern, efficient LED performance.
What performance can I expect from this LED downlight?
This 4 inch LED retrofit delivers bright, uniform illumination with selectable colour temperatures and optimized efficiency. It produces consistent light output suitable for general commercial and residential applications.
What safety features does this LED retrofit offer?
LED retrofit downlights run cooler, reducing fire risk. They contain no mercury and offer stable operation, flicker-free light and secure wiring when installed to electrical standards.
