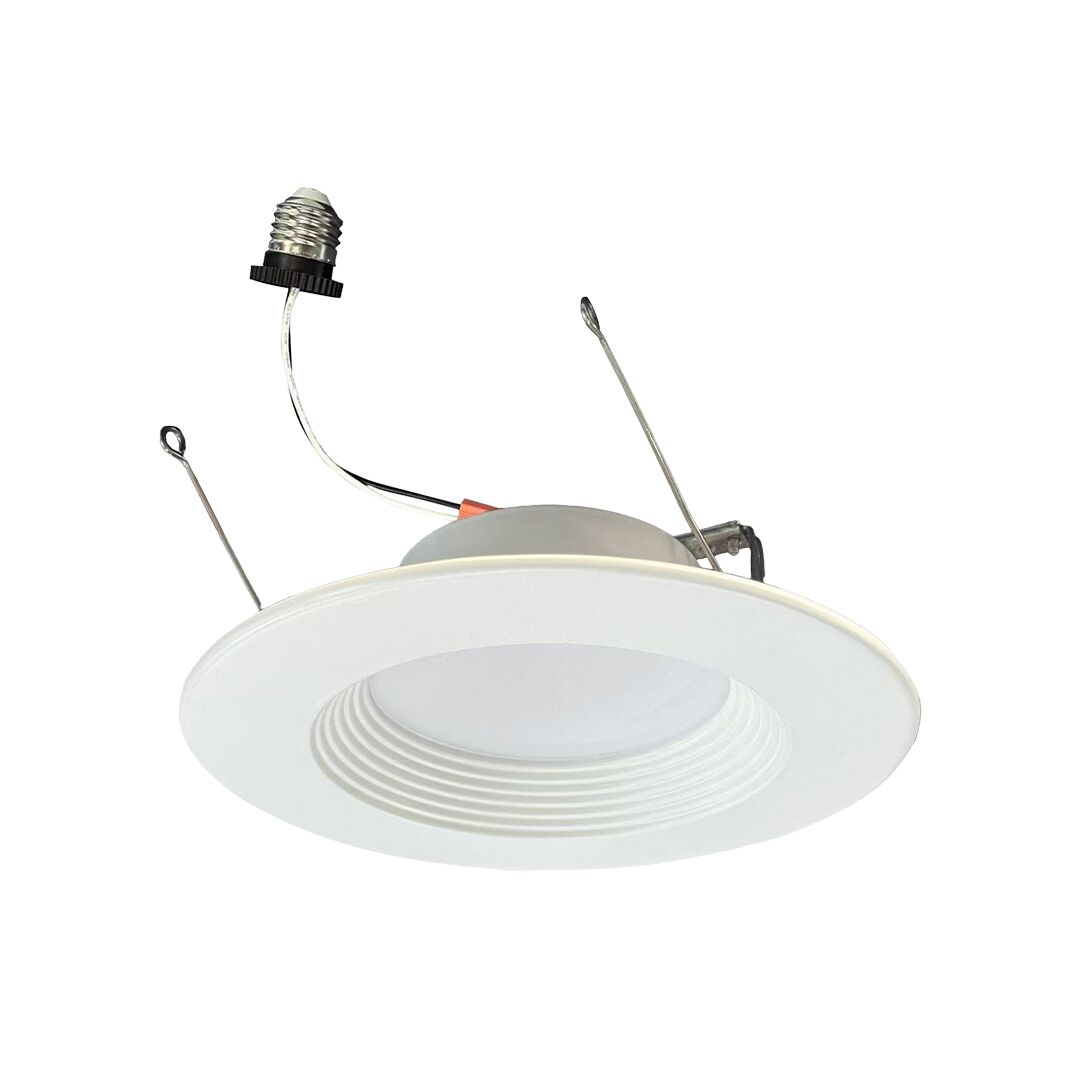

Retrofit Downlight Gen 2 in 6 inches
Wattage: 9W/12W/15W
Max Lumens: 1,230lm
CCT: 2700K/3000K/3500K/4000K/5000K
Features & Benefits
- On-Field Selectable Wattage & CCT and Wide 120° Beam Angle
- E26 Retrofit Installation
- TRIAC Dimming and 90 CRI
- 50,000-Hour Rated Life
Performance Data
| 2700K (90 CRI) | 3000K (90 CRI) | 3500K (90 CRI) | 4000K (90 CRI) | 5000K (90 CRI) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-DLR-MW-MCCT-15W-6 Inch | 9W/12W/15W | 0.138A | 1,050lm | 70 lm/W | 1,125lm | 75 lm/W | 1,230lm | 82 lm/W | 1,230lm | 82 lm/W | 1,125lm | 75 lm/W |
Product Summary
for Home, Lobby, Common Area, and Offices. Available in Wattages- 9W/12W/15W
The LED Retrofit Downlight Gen 2 provides a simple, modern upgrade for existing recessed lighting. Designed to fit compatible recessed fixtures, it offers selectable wattage and color temperature for flexible lighting performance across different applications. Its clean, low-profile design creates a seamless finish appearance, while TRIAC dimming provides convenient lighting control. With high color rendering and a long rated life, the Retrofit Downlight Gen 2 delivers reliable, energy-efficient illumination.
Applications:
Home, Lobby, Common Area, Office, and Shopping Malls
Product Specification
Efficacy
82 lm/W
CCT Options
2700/3000/3500/4000/5000K
CRI
90
Beam Angle
120°
Input Voltage
120 Vac
Power Factor (PF)
>0.8
THD
NA
Dimming
Triac
Operating Temp.
-20°C to +45°C
Warranty
5 Years
Finish
White
Mounting
Retrofit in E26 Lamp holder
Housing Material
Metal
Lens Type
Polystyrene
FAQ
Frequently Asked Questions (FAQ's)
Can this 6″ downlight directly replace older fixtures?
Yes, the Retrofit Downlight Gen 2 is specifically designed for direct replacement of existing 6″ downlights, eliminating the need for new housings or ceiling modifications.
What safety advantages do LED retrofit downlights offer?
LEDs operate at lower temperatures, contain no mercury, and emit no UV or IR radiation. This improves occupant safety, reduces fire risk compared to older lamps, and makes disposal more environmentally responsible.
Is it suitable for continuous daily operation?
Yes, the downlight is built for extended daily usage in offices, retail, and institutional spaces. Reliable driver design and thermal control ensure stable performance even under frequent switching and long operating hours.
