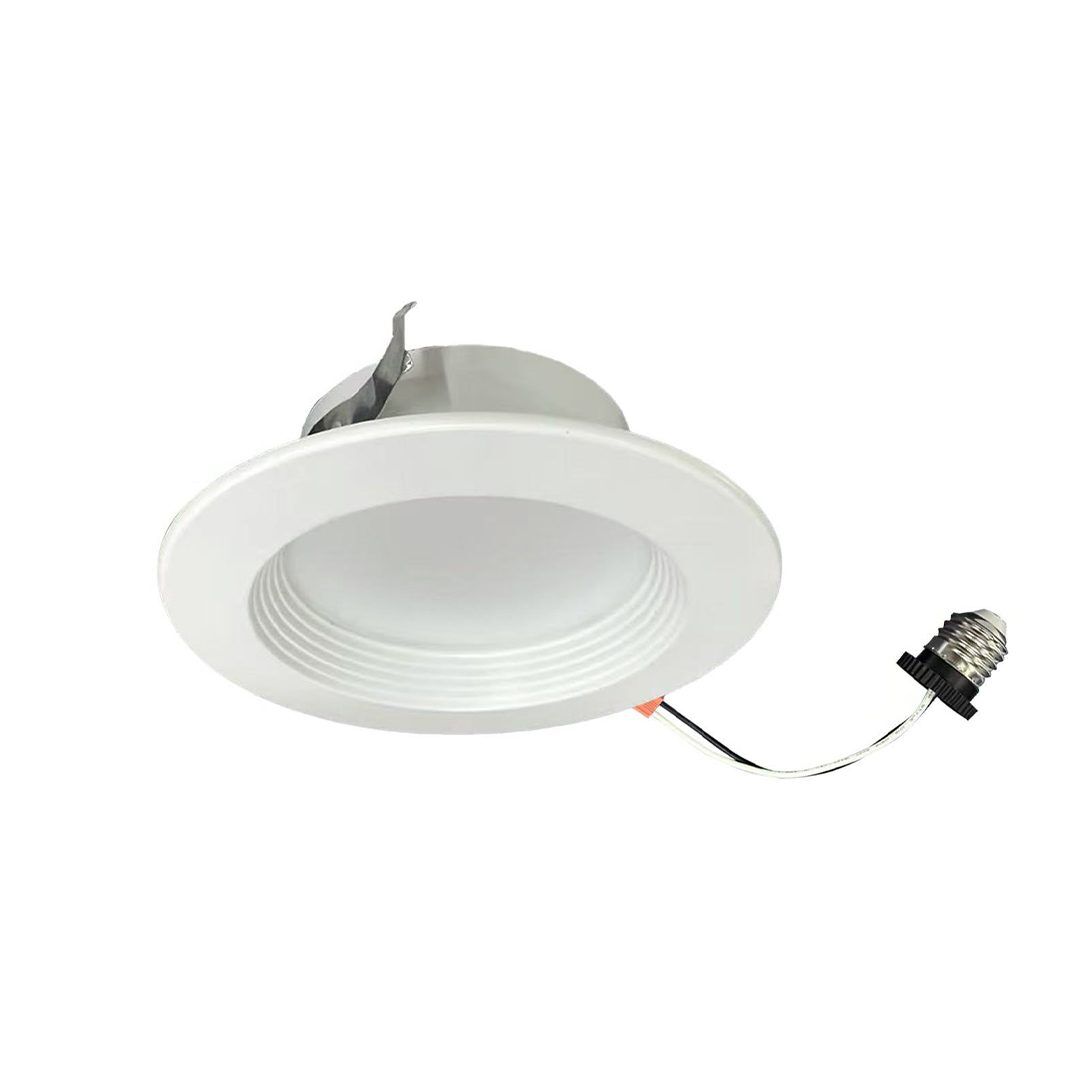

Retrofit Downlight Gen 2 in 4 inches
Wattage: 5W/7W/9W
Max Lumens: 738lm
CCT: 2700K/3000K/5000K/4000K/5000K
Features & Benefits
- On-Field Selectable Wattage & CCT and Wide 120° Beam Angle
- E26 Retrofit Installation
- TRIAC Dimming and 90 CRI
- 50,000-Hour Rated Life
Performance Data
| 2700K (90 CRI) | 3000K (90 CRI) | 3500K (90 CRI) | 4000K (90 CRI) | 5000K (90 CRI) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-DLR-MW-MCCT-9W-4 Inch | 5W/7W/9W | 0.083A | 630lm | 70 lm/W | 675lm | 75 lm/W | 738lm | 82 lm/W | 738lm | 82 lm/W | 675lm | 75 lm/W |
Product Summary
for Home, Lobby, Common Area, and Offices. Available in Wattages- 5W/7W/9W
The LED Retrofit Downlight Gen 2 provides a simple, modern upgrade for existing recessed lighting. Designed to fit compatible recessed fixtures, it offers selectable wattage and color temperature for flexible lighting performance across different applications. Its clean, low-profile design creates a seamless finish appearance, while TRIAC dimming provides convenient lighting control. With high color rendering and a long rated life, the Retrofit Downlight Gen 2 delivers reliable, energy-efficient illumination.
Applications:
Home, Lobby, Common Area, Office, and Shopping Malls
Product Specification
Efficacy
82 lm/W
CCT Options
2700/3000/3500/4000/5000K
CRI
90
Beam Angle
120°
Input Voltage
120 Vac
Power Factor (PF)
>0.8
THD
NA
Dimming
Triac
Operating Temp.
-20°C to +45°C
Warranty
5 Years
Finish
White
Mounting
Retrofit in E26 Lamp holder
Housing Material
Metal
Lens Type
Polystyrene
FAQ
Frequently Asked Questions (FAQ's)
What performance can I expect from this 4″ Retrofit Downlight Gen 2?
The downlight offers up to 738 lumens output with high efficacy (about 82 lm/W), ideal for general and accent lighting. Variable wattage (5W/7W/9W) helps balance brightness and energy use.
Does it offer selectable color temperature options?
The Gen 2 model supports multiple color temperatures (2700K–5000K), letting users tailor light warmth for ambience, task lighting, or commercial spaces.
What is the expected lifecycle of this product?
With a rated life of up to 50,000 hours and a 5-year warranty, the downlight ensures long service with consistent output and minimal replacements.
