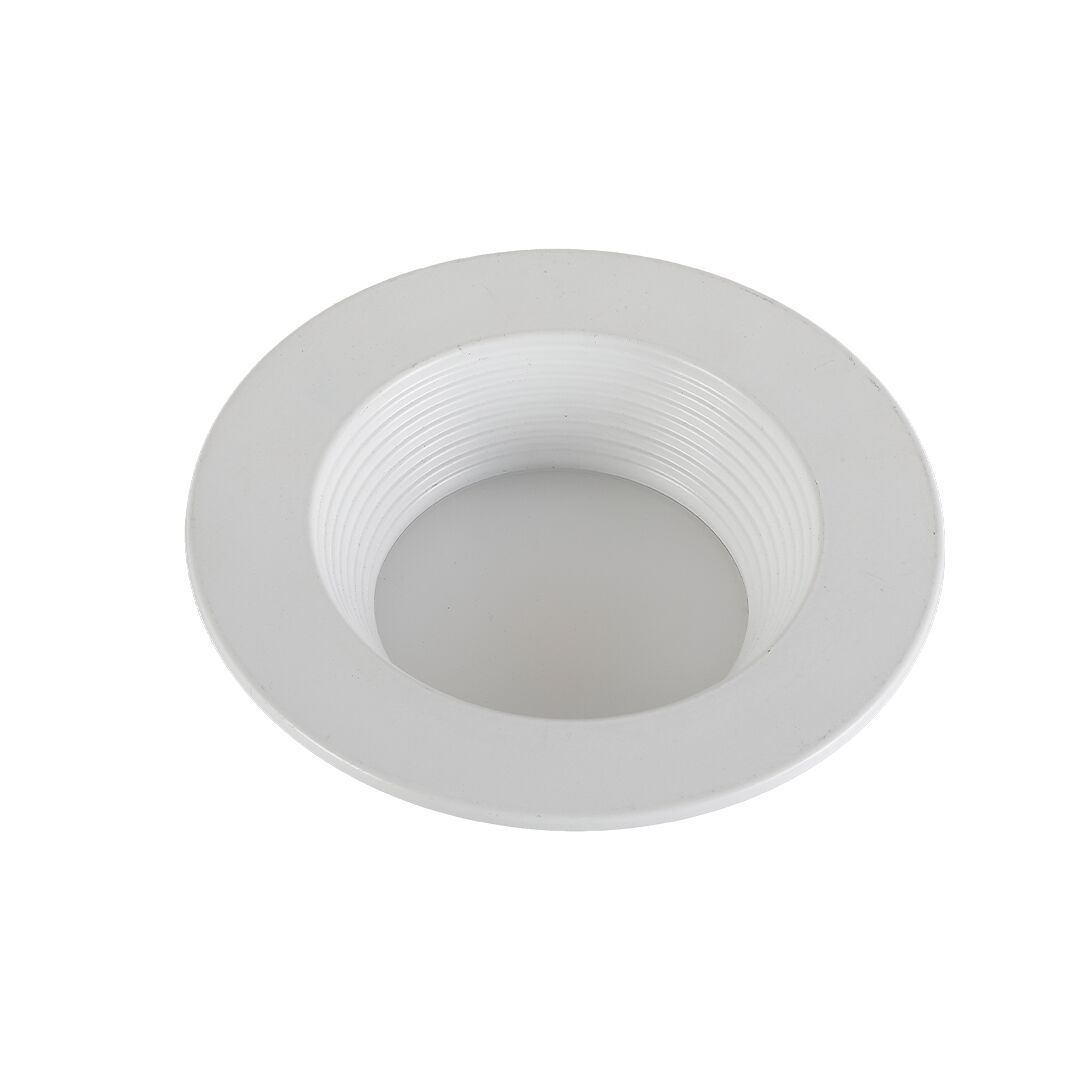

Retrofit Downlight in 6 inches
Wattage: 15W
Max Lumens: 1,470lm
CCT: 2700K/3000K/3500K/4000K/5000K
Features & Benefits
- Easy Retrofit Installation and Wide 120° Beam Angle
- E26 Adapter Compatible and Triac Dimming Selectable 5CCT
- No Housing Required for New Construction and Retrofit
- 50,000-Hour Rated Life
Performance Data
| 2700K (80 CRI) | 3000K (80 CRI) | 3500K (80 CRI) | 4000K (80 CRI) | 5000K (80 CRI) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-DLR-15W-MCCT-6 Inch | 15W | 0.200A | 1,076lm | 71.7 lm/W | 1,190lm | 79.3 lm/W | 1,332lm | 88.8 lm/W | 1,470lm | 98.0 lm/W | 1,460lm | 97.3 lm/W |
Product Summary
For Home, Lobby, Common Area, and Offices. Available in Wattages- 15W and Selectable CCT.
The LED retrofit Downlight provides a simple, energy-efficient way to upgrade existing recessed lighting with modern LED performance. Designed to fit compatible recessed fixtures, it offers selectable color temperature and triac dimming for flexible lighting control. Its clean, low-profile design provides a seamless finish while making it ideal for commercial and residential retrofit applications. With reliable performance and a long service life, it is a practical solution for upgrading existing downlight installations without extensive remodeling.
Application:
Home, Lobby, Common Area, Office, and Shopping Malls
Product Specification
Efficacy 82 lm/W
CCT Options 2700/3000/3500/4000/5000K
CRI 80
Beam Angle 120°
Input Voltage 120 Vac
Power Factor (PF) >0.8
THD <50
Dimming Triac
Operating Temp. -20°C to +45°C
Warranty 5 Years
Finish White
Mounting Retrofit in E26 Lamp holder
Housing Material Aluminum Powder Coated
Lens Type Diffuser
FAQ
Frequently Asked Questions (FAQ's)
What performance can I expect from this 6″ retrofit downlight?
This 6″ retrofit downlight delivers bright, uniform illumination up to ~1,230 lumens at ~82 lm/W. Selectable CCT allows tuning to specific environments like offices, lobbies, or common areas.
Can this downlight be used in damp environments?
Yes, its ETL rating covers use in dry and damp locations, making it suitable for most interior spaces where occasional moisture is present.
What is the lifecycle and warranty?
This LED downlight is rated for up to 50,000 hours of service life with an included 5-year warranty, offering long-term performance and minimal maintenance.
