Rapid Lamp Gen Z

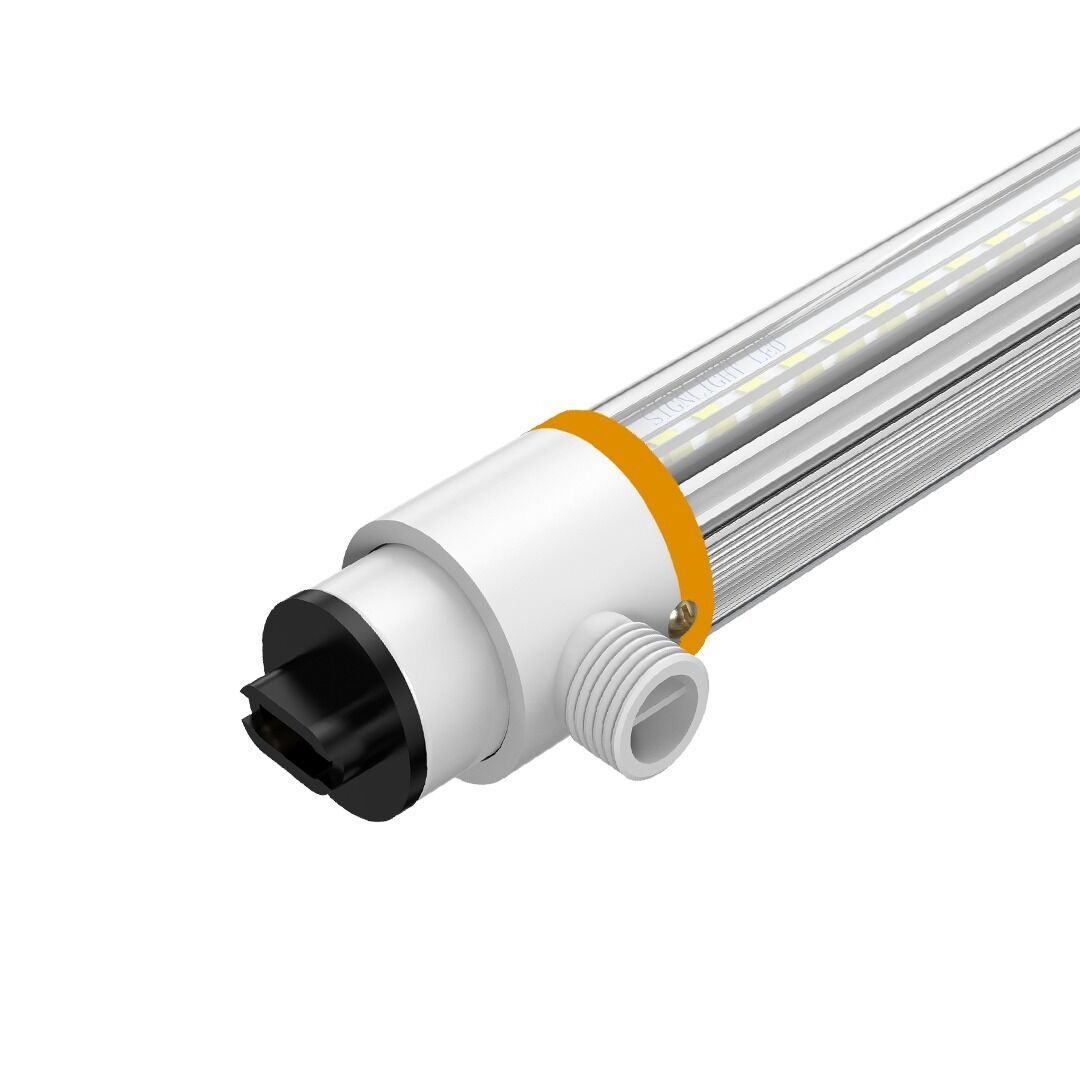

The Rapid Lamp Gen Z is designed to simplify outdoor sign retrofitting with a driver-free design and powerful double-sided illumination. Its circular tube with LEDs on both sides delivers wide, shadow-free lighting, making it ideal for pylon and monument signs. Built for durability, the lamp performs reliably in extreme outdoor temperatures while maintaining consistent brightness and long service life. With its patented technology and simple retrofit design, installers can upgrade signage quickly and efficiently.

Available Sizes:

F18, F24, F30, F36, F42, F48, F60, F64, F72, F84, F96, F108, F117, F120

Category:

Resources & Downloads


Specsheets

Variations

Model Number TUBE SIZE INPUT VOLTAGE WATTAGE LUMENS COVER
ZSL07T10XX0450 F18 100-277 Vac 7W 910lm Clear
ZSL13T10XX0600 F24 100-277 Vac 13W 1560lm Clear
ZSL13T10XX0750 F30 100-277 Vac 13W 1690lm Clear
ZSL16T10XX0900 F36 100-277 Vac 16W 2080lm Clear
ZSL21T10XX1050 F42 100-277 Vac 21W 2700lm Clear
ZSL21T10XX1200 F48 100-277 Vac 21W 2730lm Clear
ZSL28T10XX1500 F60 100-277 Vac 28W 3640lm Clear
ZSL28T10XX1600 F64 100-277 Vac 38W 3640lm Clear
ZSL38T10XX1800 F72 100-277 Vac 38W 4750lm Clear
ZSL38T10XX2100 F84 100-277 Vac 38W 4750lm Clear
ZSL51T10XX2475 F96 100-277 Vac 51W 6630lm Clear
ZSL51T10XX2700 F108 100-277 Vac 51W 6630lm Clear
ZSL60T10XX2925 F117 100-277 Vac 60W 8450lm Clear
ZSL60T10XX3000 F120 100-277 Vac 60W 8450lm Clear
Max Lumens

8450lm

Min Lumens

910lm

Color Temperatures

6,000K

UL Logo
SAM Logo
Wet Location

Features & Specifications


  • Driver-free design with internal power supply eliminates the need for external drivers or ballasts
  • Double-sided LED illumination provides wide and uniform lighting coverage
  • Patented retrofit technology allows installation in less than 30 minutes
  • High output performance delivering over 700 lumens per foot
  • Designed for pylon signs, monument signs, and outdoor signage applications
  • Efficient heat dissipation structure reduces luminous decay and extends lifespan
  • Available in multiple sizes to support different sign configurations
