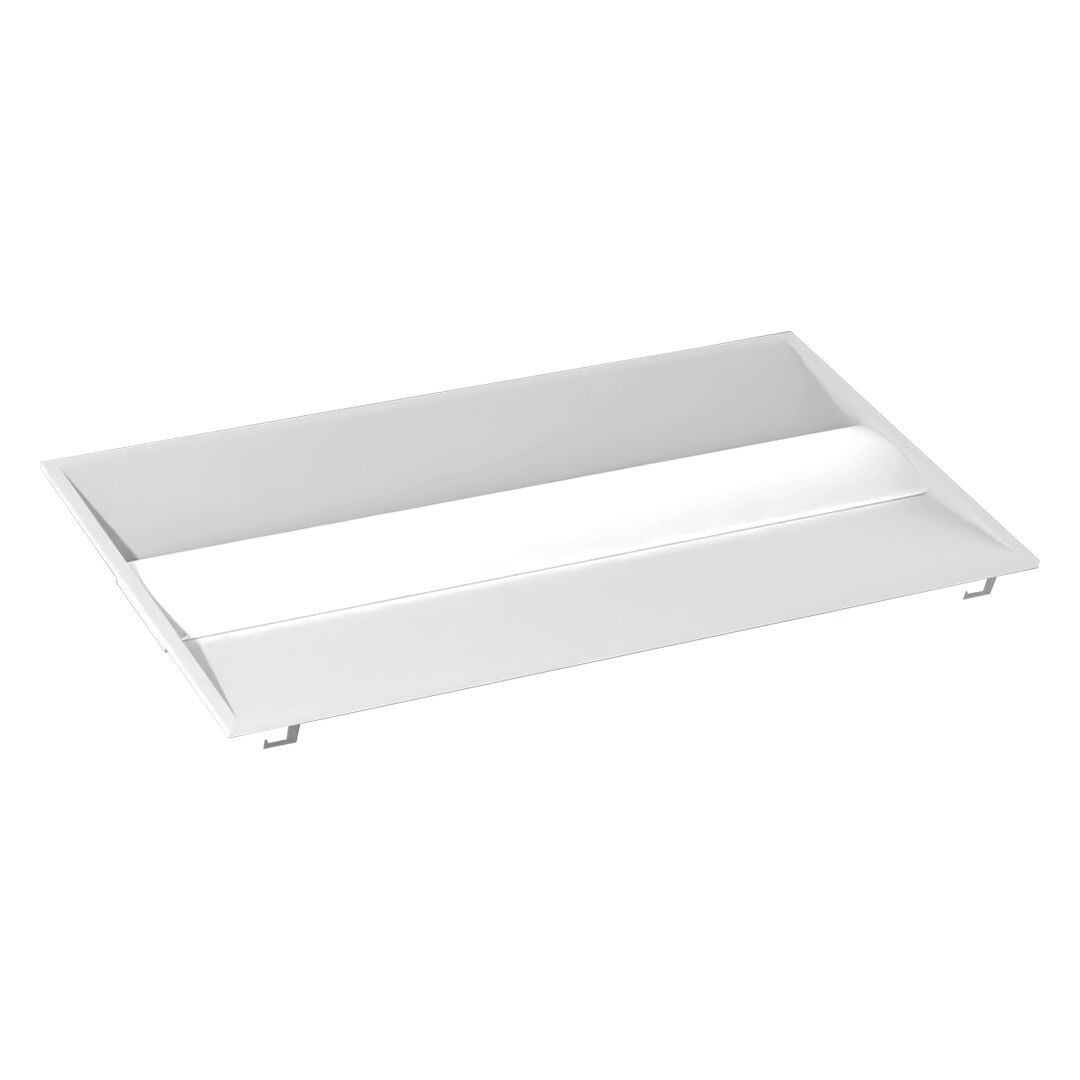

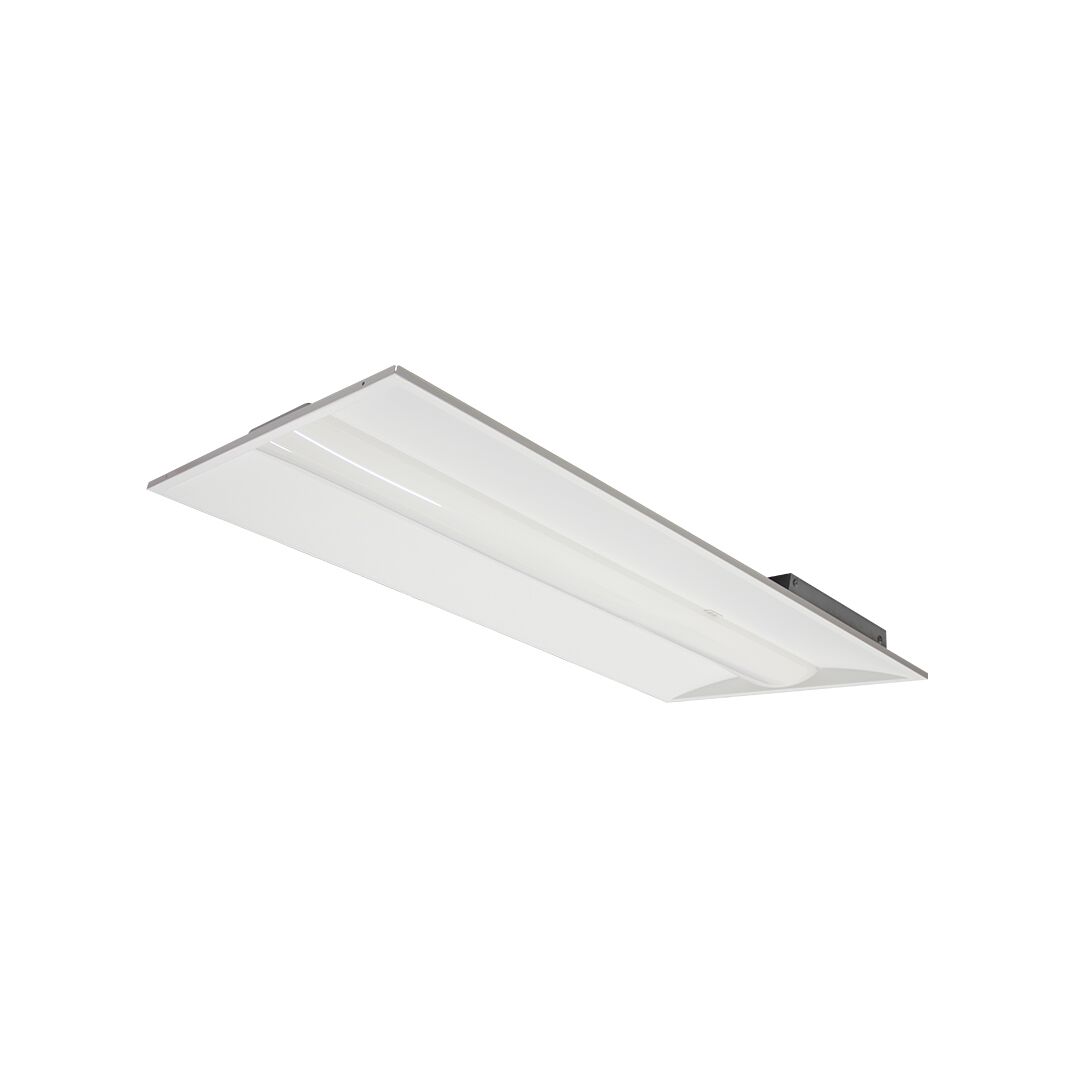

Troffer Center Basket Light 2X4
Wattage: 50W/40W/30W
Max Lumens: 6,500lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Selectable Wattages & CCT- 30W/40W/50W.
- NEC Earthquake Clip and 0–10V Dimming Compatibility
- High Efficacy – Up to 135 lm/W
- 50,000-Hour Rated Life
Performance Data
| 3500K (>80CRI) | 4000K (>80CRI) | 5000K (>80CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-TR-2x4-MW-MCCT TROFFER | 30W | 0.458A | 3,930lm | 131 lm/W | 4,080lm | 136 lm/W | 3,990lm | 130 lm/W |
| 40W | 5,120lm | 128 lm/W | 5,320lm | 133 lm/W | 5,200lm | 130 lm/W | ||
| 50W | 6,250lm | 125 lm/W | 6,500lm | 130 lm/W | 6,350lm | 127 lm/W | ||
Product Summary
Available in Selectable Wattages & CCT- 30W/40W/50W.
The Havells Troffer Centre Basket Light combines clean architectural styling with the flexibility needed for modern commercial lighting projects. Selectable wattage and color temperature allow a single fixture to adapt to different lighting requirements, helping simplify product selection. Its center basket design delivers balanced, comfortable illumination, while the thoughtfully engineered construction supports straightforward installation and long-term reliability.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Modern work spaces, and Hospital premises.
Product Specification
Efficacy 130 lm/W
CCT Options 3500K/4000K/5000K
CRI ≥80
Beam Angle 120°
Input Voltage 120-277 Vac
Power Factor (PF) ≥0.9
THD <20%
Dimming 0-10V standard
Operating Temp -20℃ to +45℃
Warranty 5 Years
Finish White
Mounting Recessed Ceiling
Housing Material Metal+ Aluminum Powder Coated
Lens Type PC Lens, 120 degree HB Grade
