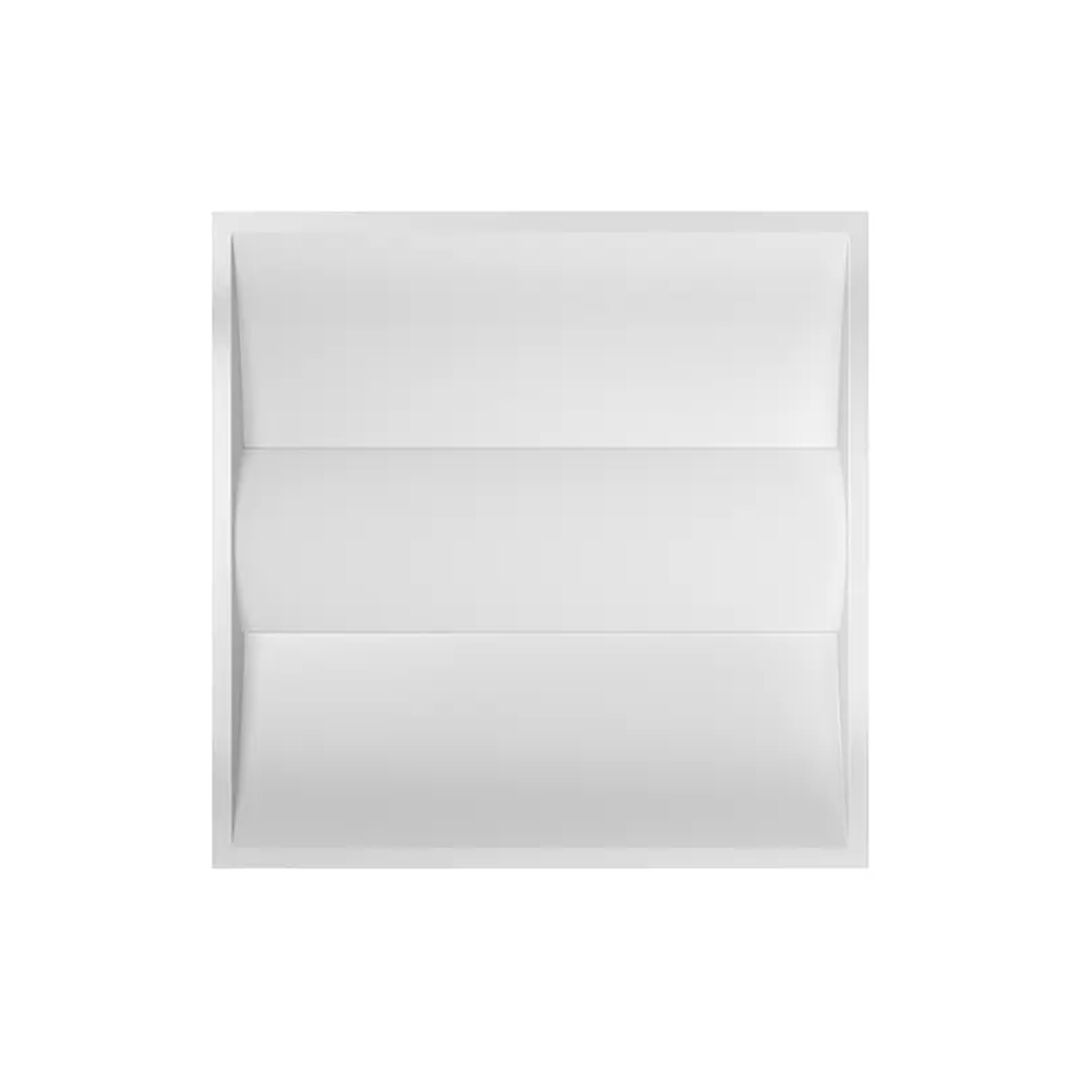

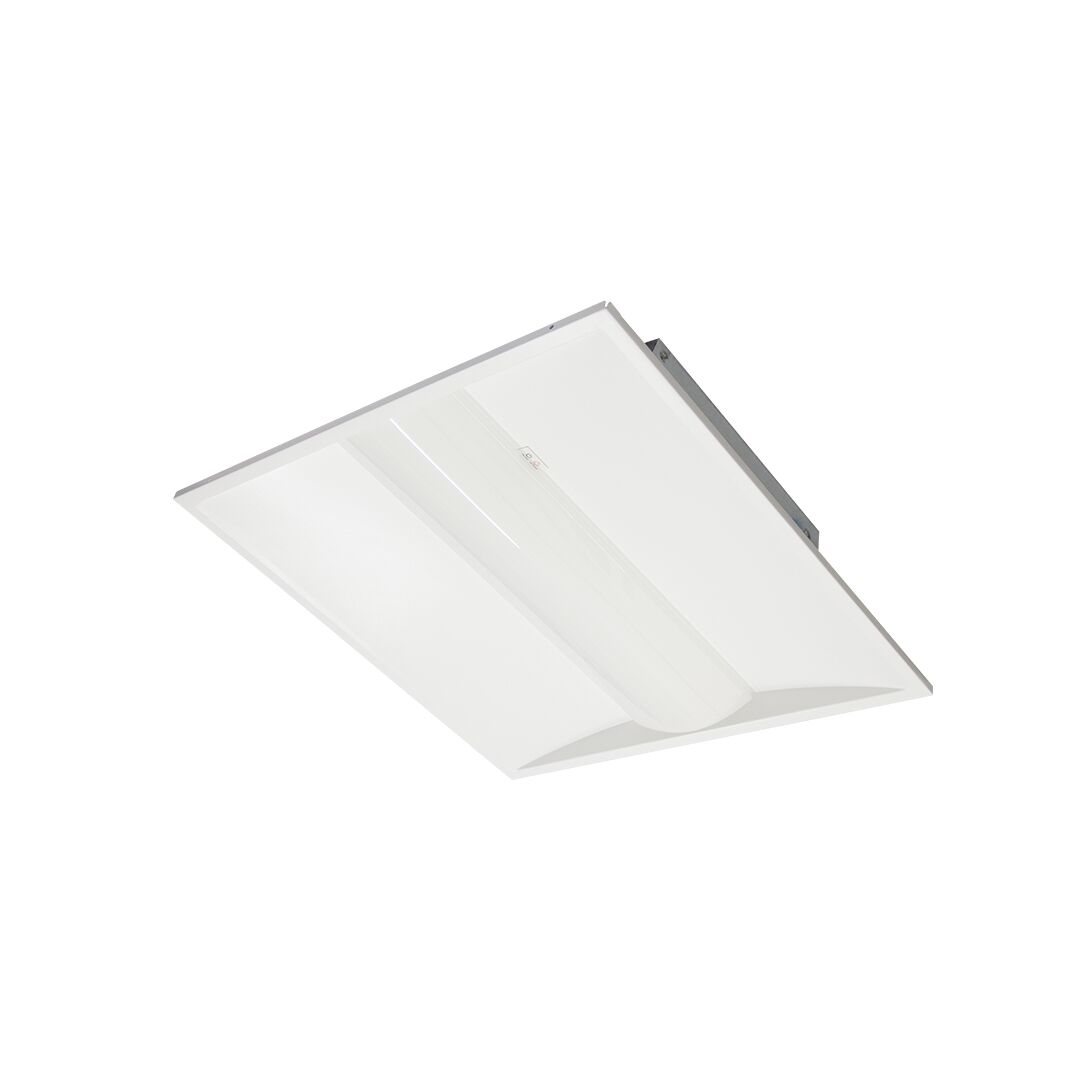

Troffer Center Basket Light 2X2
For Commercial Offices, Educational Institutions & Healthcare Facilities. Available in Selectable CCT & Wattages- 20W/30W/40W.
A versatile and efficient lighting solution designed to adapt to diverse commercial spaces. The Troffer Center Basket 2×2 features fully selectable color temperature and wattage, allowing you to fine-tune the light output based on the environment and application. Its side-mounted driver housing ensures easy installation and maintenance, while the post-painted finish adds durability and a clean, professional look.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Modern work spaces and Hospital premises.
Resources & Downloads
Specsheets
IES File
Variations
| 3500K (>80CRI) | 4000K (>80CRI) | 5000K (>80CRI) | ||||||
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-TR-2x2-MW-MCCT-TROFFER | 20W | 0.367A | 2620LM | 131 LM/W | 2720LM | 136 LM/W | 2660LM | 133 LM/W |
| 30W | 3840LM | 128 LM/W | 3990LM | 133 LM/W | 3900LM | 130 LM/W | ||
| 40W | 5000LM | 125 LM/W | 5200LM | 130 LM/W | 5080LM | 127 LM/W | ||
Max Lumens
5080LM
Min Lumens
2620LM
Wattage
20W/30W/40W
Color Temperatures
3500K/4000K/5000K
Features & Specifications
- Long Life
- Energy Efficiency
- Ecologically Friendly
- Durable Quality
- Operating temp: -20°C to +45°C
- 50,000-hour lifespan
- 5-year warranty
- Dimming feature for easy customization
- ETL listed for dry & damp locations
- Equipped with Integral NEC-compliant earthquake clips
- Fully selectable CCT and wattage for customized lighting output
- IP 20 certification makes it suitable for wet and dry locations.
- Delivers up to 5,200 lumens in the 2×2 variant for high brightness
