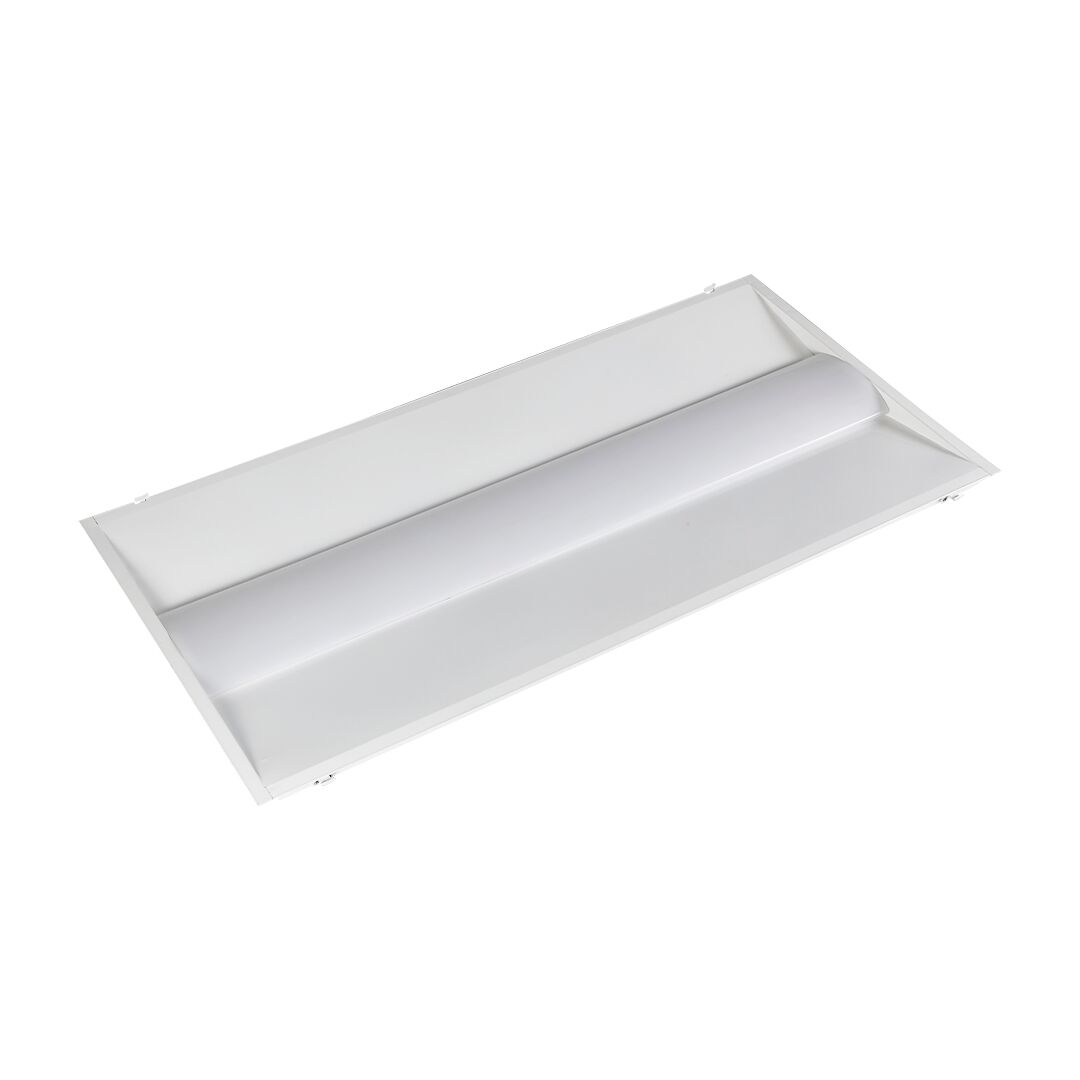

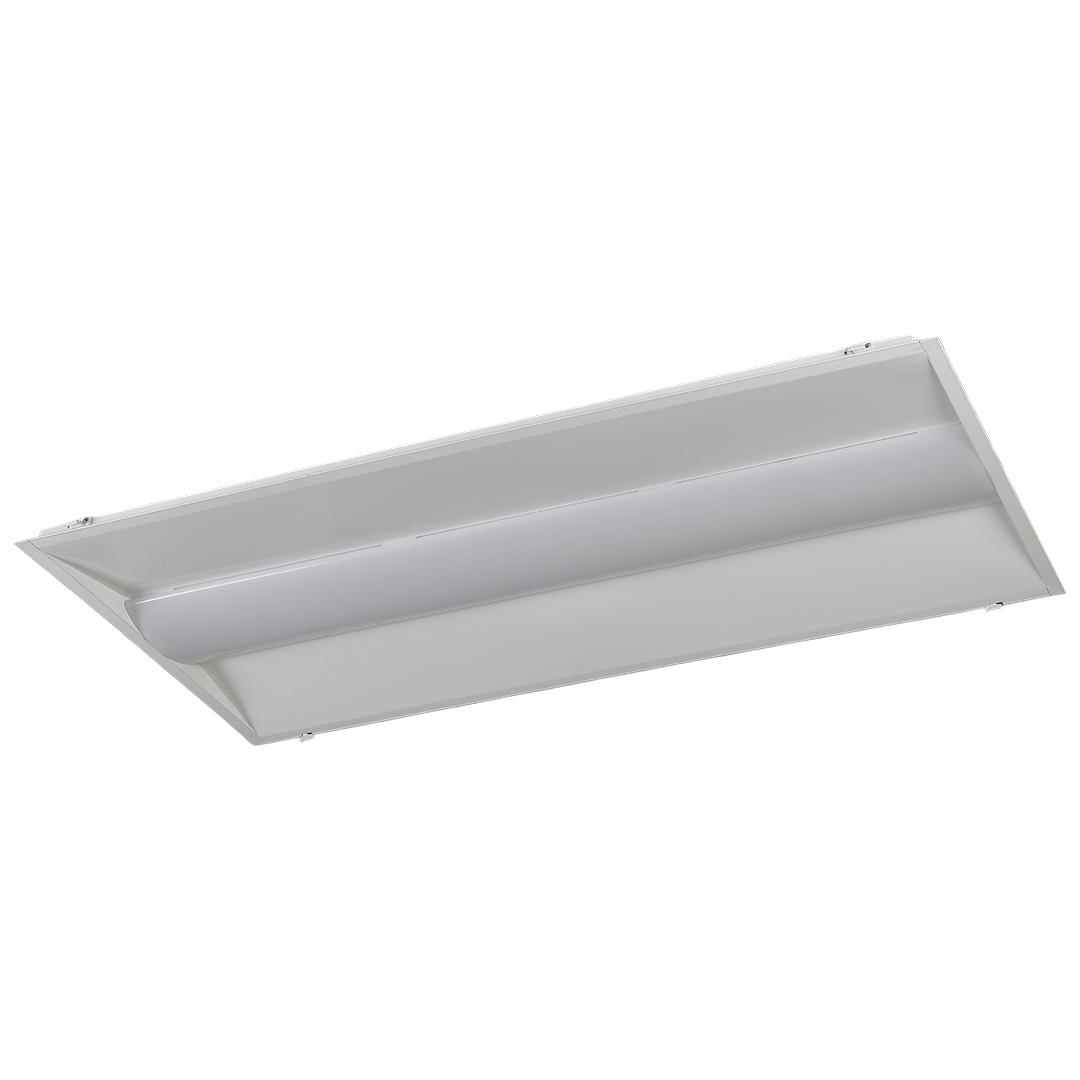

Rapid Retro Troffer Door Light 2X4
Wattage: 30W/40W/50W
Max Lumens: 5,236 lm
CCT: 3500K/4000K/5000K
Features & Benefits
- Selectable Wattage & CCT with 0–10V Dimming Compatibility
- Installation without Plenum and Post-Painted Finish
- High Efficacy – Up to 130 lm/W
- 50,000-Hour Rated Life
Performance Data
| 3500K (80 CRI) | 4000K (80 CRI) | 5000K (80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-2X4-MW-MCCT-50W-Retro Troffer | 30W | 0.46A | 3,549.0lm | 129.9 lm/W | 4,688.2lm | 126.8 lm/W | 5,236.0lm | 121.7 lm/W |
| 40W | 3,567.0lm | 134.0 lm/W | 4,766.0lm | 132.1 lm/W | 5,205.0lm | 127.6 lm/W | ||
| 50W | 3,628.2lm | 132.0 lm/W | 4,733.8lm | 128.7 lm/W | 5,182.0lm | 124.2 lm/W | ||
Product Summary
Available in Selectable CCT & Wattages- 30W/40W/50W
The Havells Rapid Retro Troffer Door Light 2×4 is designed to simplify commercial lighting upgrades without compromising performance or appearance. Selectable wattage and color temperature provide the flexibility to meet a variety of lighting needs, while the clean, low-profile design delivers bright, uniform illumination. Ideal for retrofit projects, this LED troffer door light offers a practical solution for modernizing existing ceiling systems with minimal disruption.
Applications:
Commercial Offices, Schools & Educational Facilities, Healthcare Environments, Retail Spaces and Retrofit Projects.
Product Specification
Efficacy
127.6 lm/W
Beam Angle
115°
THD
<20
Warranty
5 Years
Housing Material
CRCA
CCT (Selectable)
3500/4000/5000K
Input Voltage
120–277 Vac
Dimming
0-10V standard
Finish
White
Lens Type
Diffuser
CRI
80
Power Factor (PF)
>0.9
Operating Temp
-20°C to +40°C
Mounting
Recessed & Surface
FAQ
Frequently Asked Questions (FAQ's)
What is a 2X4 Rapid Retro Troffer Panel Door?
This product is an LED retrofit door assembly designed to upgrade existing 2×4 fluorescent troffer housings. It replaces traditional lamps and doors with an integrated LED light source, improving efficiency, light quality, and reliability without removing the original ceiling fixture.
How easy is installation?
The retrofit panel door is designed to fit compatible existing troffer housings. Contractors can perform upgrades quickly, reducing labor time and minimizing disruption compared to full fixture replacement.
How does selectable wattage help optimize lighting?
Selectable wattage enables adjustment of light output and power consumption during installation. This allows lighting levels to be matched to room size and task needs, improving efficiency and adaptability without replacing the fixture.
