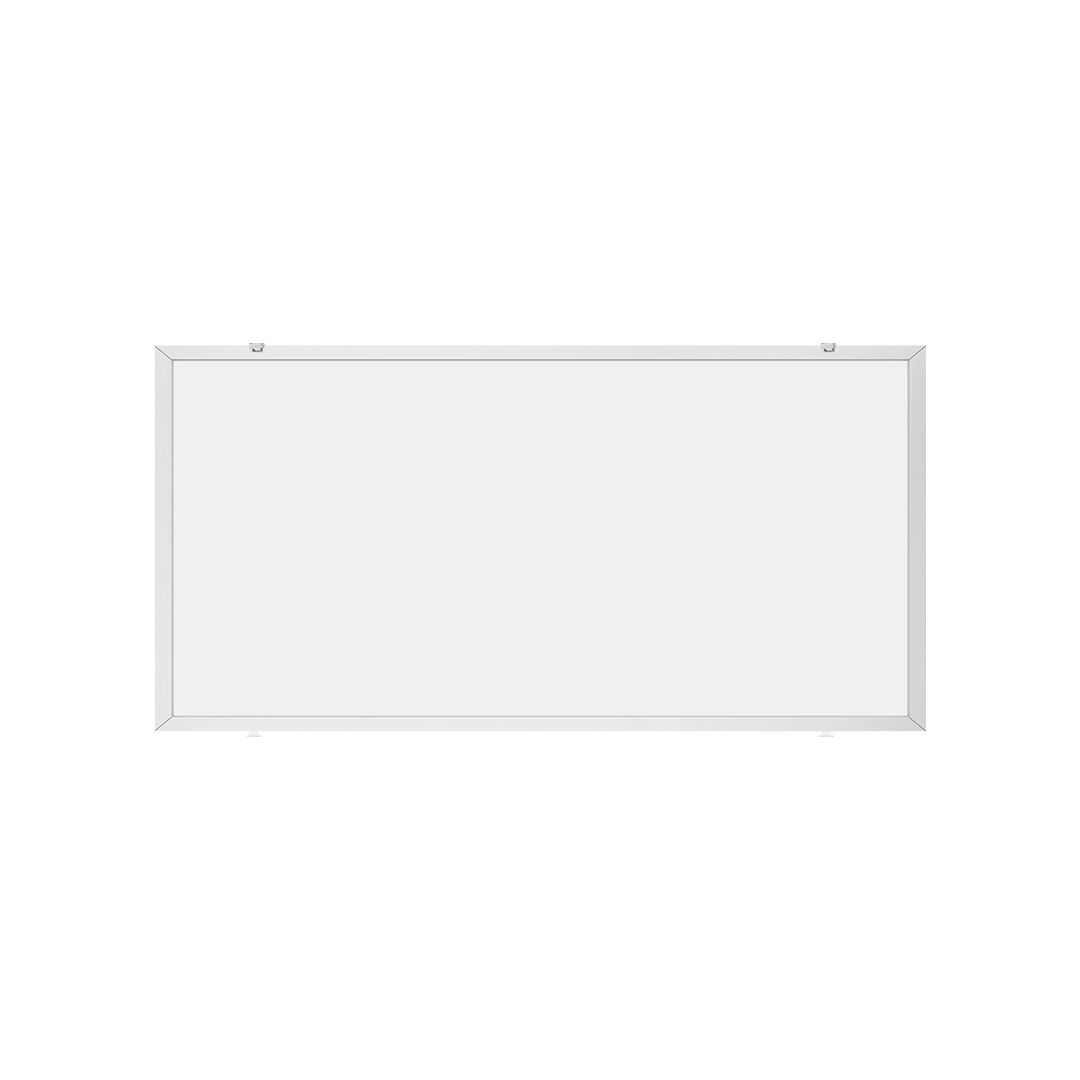

Rapid Retro Panel Door 2X4
Wattage: 50W/40W/30W
Max Lumens: 6,092.0lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Selectable Wattage & CCT with 0–10V Dimming Compatibility
- Patented Retrofit Panel Design
- Installation without Plenum and Post-Painted Finish
- 50,000-Hour Rated Life
Performance Data
| 3500K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Selectable Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-2X4-MW-MCCT-50W-Retro Troffer | 30W/40W/50W | 0.46A | 5,746.0lm | 122.20 lm/W | 6,092.0lm | 134.30 lm/W | 5,920.0lm | 125.90 lm/W |
Product Summary
Available in Selectable Wattage & CCT- 30W/40W/50W
The Havells Rapid Retro Panel Door 2×4 is designed to make commercial lighting upgrades simple while delivering a clean, modern look. With selectable wattage and color temperature, it provides the flexibility to meet a variety of lighting needs using a single fixture. Its slim design delivers bright, uniform illumination and fits seamlessly into existing ceiling systems, making it an ideal LED retrofit panel for commercial renovation and retrofit projects.
Applications
Commercial Spaces, Airport Lounges, Corporate Offices, Banks & ATM Outlets, Data Centers, Modern Work Spaces and Hospital Premises.
Product Specification
Efficacy
137.33 lm/W
Beam Angle
120°
THD
<20
Warranty
5 Years
Housing Material
CRCA
CCT (Selectable)
3500/4000/5000K
Input Voltage
120–277 Vac
Dimming
0-10V standard
Finish
White
Lens Type
Diffuser
CRI
80
Power Factor (PF)
>0.9
Operating Temp
-20°C to +40°C
Mounting
Recessed & Surface
