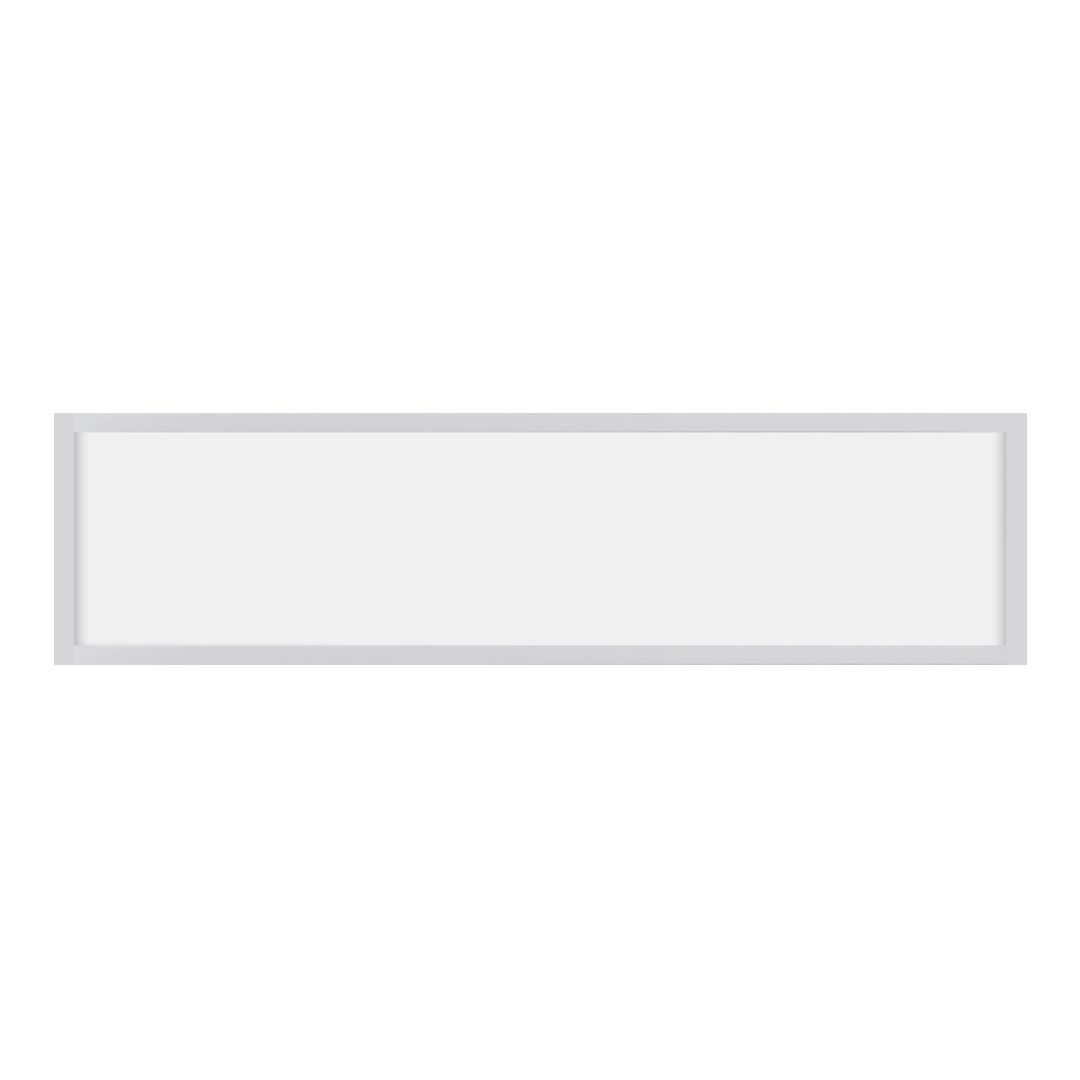

Rapid Retro Panel Door 1X4
Wattage: 40W/30W/20W
Max Lumens: 4,604.0lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Selectable Wattage & CCT with 0–10V Dimming Compatibility
- Patented Retrofit Panel Design
- Installation without Plenum and Post-Painted Finish
- 50,000-Hour Rated Life
Performance Data
| 3500K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Selectable Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-1X4-MW-MCCT-40W-Retro Troffer | 20W/30W/40W | 0.35A | 4,458.7lm | 130.36 lm/W | 4,604.0lm | 137.33 lm/W | 4,489.4lm | 129.53 lm/W |
Product Summary
Available in Selectable Wattage & CCT- 16W/26W/36W
The Havells Rapid Retro Panel Door 1×4 is designed to make commercial lighting upgrades simple while delivering a clean, modern look. With selectable wattage and color temperature, it provides the flexibility to meet a variety of lighting needs using a single fixture. Its slim design delivers bright, uniform illumination and fits seamlessly into existing ceiling systems, making it an ideal LED retrofit panel for commercial renovation and retrofit projects.
Applications:
Commercial Spaces, Airport Lounges, Corporate Offices, Banks & ATM Outlets, Data Centers, Modern Work Spaces and Hospital Premises.
Product Specification
Efficacy
137.33 lm/W
Beam Angle
120°
THD
<20
Warranty
5 Years
Housing Material
CRCA
CCT (Selectable)
3500/4000/5000K
Input Voltage
120–277 Vac
Dimming
0-10V standard
Finish
White
Lens Type
Diffuser
CRI
80
Power Factor (PF)
>0.9
Operating Temp
-20°C to +40°C
Mounting
Recessed & Surface
