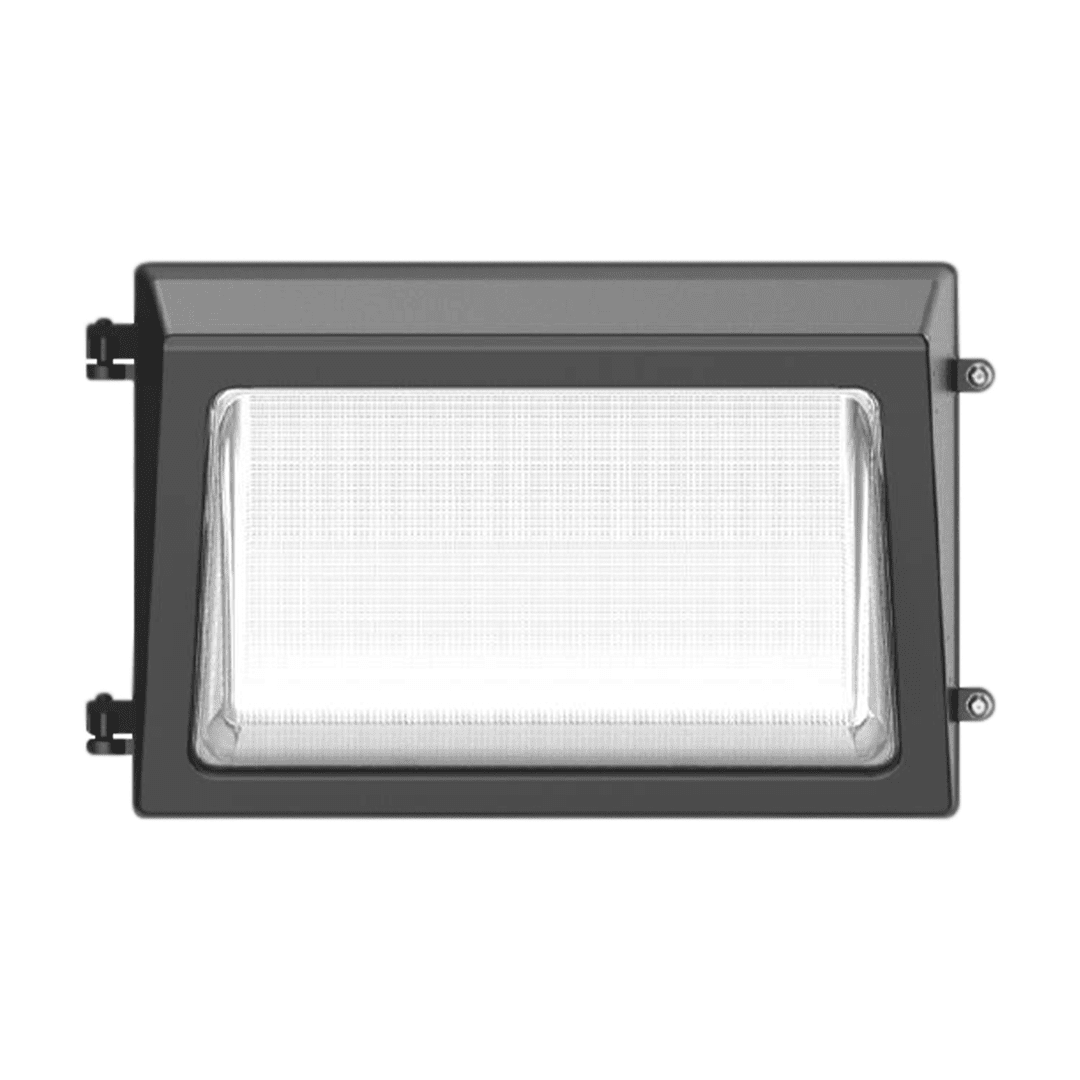

Hexa Halfcut LED Wall Pack Gen-2 with Photocell Sensor
- Built-in Photocell, Automatic Dusk-to-Dawn, and Operating Range: -40°C to +50°C.
- Up to 18,120 lumens at 120W, with efficacy up to 152 lm/W
- Selectable Wattage & CCT with Standard 0-10V dimming
- Backed by a 50,000-hour rated life for wet locations
Performance Data
| 3000K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Input Voltage | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-WP-MW-MCCT-120W-PS-Gen2 | 80W/100W/120W | 1.111A | 120-277Vac | 17,140lm | 138 lm/W | 18,120lm | 152 lm/W | 17,250lm | 139 lm/W |
Hexa Halfcut LED Wall Pack Gen-2 – 120W Output, Photocell Sensor and CCT Selectable
The Hexa Half Cut Wall Pack Gen 2 with Photocell is built for reliable outdoor performance, combining high-quality illumination with selectable wattage and color temperature for installation flexibility. Its built-in Dawn to Dusk photocell provides automatic operation, while the rugged die-cast aluminum housing is designed for demanding commercial and industrial environments, from building entrances and parking areas to warehouses and outdoor spaces. Built for consistent performance in tough conditions, it delivers dependable illumination where it is needed most. With a 50,000-hour rated life, it provides lasting value and confidence for professional lighting projects.
Applications:
Entrance lighting, Courtyard lighting, Industrial lighting, Outdoor landscape lighting, Building, hotel and Wall lighting area.
Frequently Asked Questions (FAQ's)
Can this wall pack mount to any exterior surface?
Yes — it installs on exterior walls with a compatible junction box. Ensure the wall surface is flat and rated for outdoor fixtures. Use proper anchors for masonry, brick, or concrete.
How do I prepare the electrical supply before installation?
Turn off power at the circuit breaker. Verify voltage matches the fixture rating, confirm ground connection, and ensure a weatherproof junction box is present at the mount point.
Where should I position the photocell sensor?
Locate the integrated photocell sensor on the front housing in an area with clear sky exposure. Avoid shading by structures or signage to ensure correct dusk-to-dawn operation. Also extra careful, photocell is not exposed to the lights from surrounding fixtures in the night time.
What safety practices should installers follow?
Always turn off power before wiring, use proper PPE (gloves, eye protection), follow NEC/local codes, and secure ladders or lifts. Only qualified electricians should perform wiring tasks.
Does a LED wall pack need grounding?
Yes, proper grounding is required for electrical safety and code compliance.
