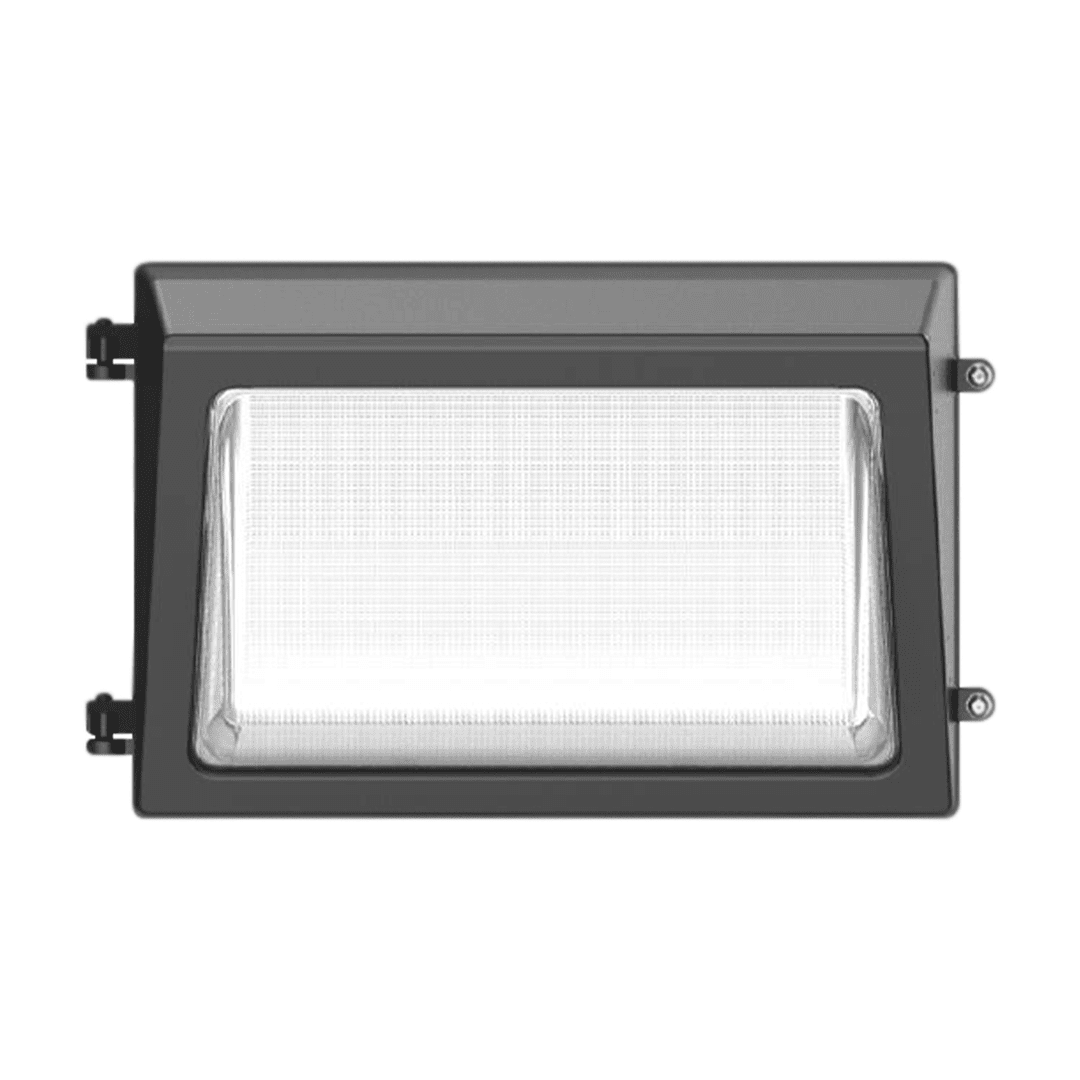

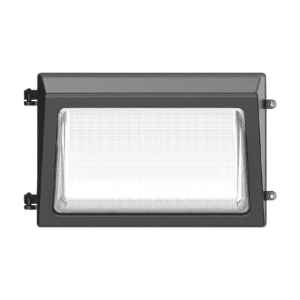

Hexa Halfcut LED Wall Pack Gen-2 High Voltage
- Built-in Photocell, Automatic Dusk-to-Dawn, and Operating Range: -40°C to +50°C.
- Up to 17,620 lumens at 120W HV, with efficacy up to 147 lm/W
- Selectable Wattage & CCT with Standard 0-10V dimming
- Backed by a 50,000-hour rated life for wet locations
Performance Data
| 3000K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Input Voltage | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-WP-MW-MCCT-120W-PS-HV-Gen2 | 80W/100W/120W | 2.07A | 277-480Vac | 16,640lm | 137 lm/W | 17620lm | 151 lm/W | 16,840lm | 139 lm/W |
Hexa Halfcut LED Wall Pack Gen-2, 120W High Voltage, CCT Selectable with Photocell Sensor
The Hexa Half Cut Wall Pack Gen 2 High Voltage with Photocell is designed for dependable outdoor lighting in demanding commercial and industrial environments. With selectable wattage and color temperature, high-voltage compatibility, and a built-in Dawn to Dusk photocell for automatic operation, its rugged die-cast aluminum housing provides lasting performance for building entrances, parking areas, warehouses, and outdoor spaces. Engineered for reliable operation in challenging outdoor conditions, it combines installation flexibility with durable construction. With a 50,000-hour rated life, it is built to deliver lasting performance and peace of mind.
Applications:
Entrance lighting, Courtyard lighting, Industrial lighting, Outdoor landscape lighting, Building, Hotel, and Wall lighting area.
Frequently Asked Questions (FAQ's)
What is a Hexa Halfcut LED wall pack?
Are Hexa Halfcut LED wall packs weatherproof?
Yes, they are built with outdoor-rated, weather-resistant housings IP65 rated or higher.
Are Hexa Halfcut wall packs UL or DLC listed?
Quality models are UL listed and often DLC certified for efficiency.
Does this wall pack include a photocell sensor?
Yes, models are available with built-in dusk-to-dawn photocell control.
Are Hexa Halfcut LED wall packs energy efficient?
Yes, they use high-efficiency LEDs to cut energy use by up to 70%.
