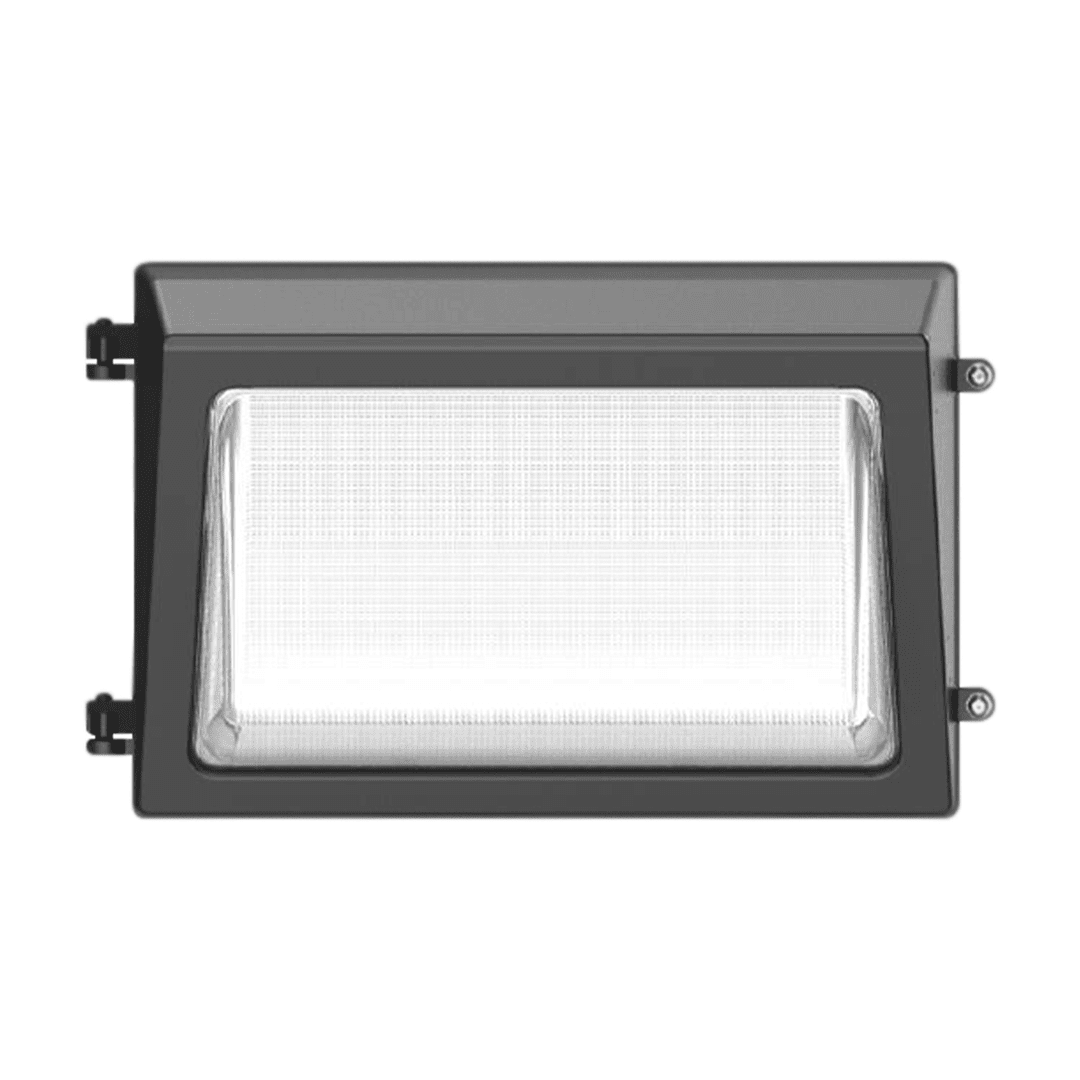

Hexa Halfcut LED Wall Pack Gen-2 with Emergency Battery Backup
- Built-in Photocell, Automatic Dusk-to-Dawn, and Operating Range: -40°C to +50°C.
- Up to 18,120 lumens at 120W, with efficacy up to 152 lm/W
- Selectable Wattage & CCT with Standard 0-10V dimming
- Backed by a 50,000-hour rated life for wet locations
Performance Data
| 3000K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Input Voltage | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-WP-MW-MCCT-120W-PS-BB-Gen2 | 80W/100W/120W | 1.111A | 120-277Vac | 17,140lm | 138 lm/W | 18,120lm | 152 lm/W | 17,250lm | 139 lm/W |
Hexa Halfcut LED Wall Pack Gen-2 – 120W Output, Photocell Sensor and CCT Selectable
The Hexa Half Cut Wall Pack Gen 2 with Battery Backup delivers dependable outdoor illumination with selectable wattage and color temperature for project flexibility. Its built-in Dawn to Dusk photocell provides automatic operation, while the integrated battery backup provides emergency lighting when normal power is interrupted. The rugged die-cast aluminum housing is built for long-term reliability in demanding commercial and industrial environments. Designed to provide consistent illumination for building entrances, parking areas, warehouses, and outdoor spaces, it combines everyday and emergency lighting in one dependable fixture. With a 50,000-hour rated life, it is built to deliver lasting performance and peace of mind.
Applications:
Entrance lighting, Courtyard lighting, Industrial lighting, Outdoor landscape lighting, Building, The hotel and Wall lighting area.
Frequently Asked Questions (FAQ's)
What is a Hexa Halfcut LED wall pack?
Where are Hexa Halfcut LED wall packs commonly used?
What certifications and ratings does it have?
The fixture is UL listed and DLC Premium certified, ensuring electrical safety, reliable performance, eligibility for utility rebates, and compliance with high energy-efficiency standards.
How does the photocell sensor improve operation?
The built-in photocell automatically turns the fixture on at dusk and off at dawn, reducing manual controls and improving energy management while ensuring consistent night-time lighting.
What is the warranty coverage?
Commercial-grade LED wall packs typically include a 5-year limited warranty, covering defects in materials and workmanship for long-term reliability.
