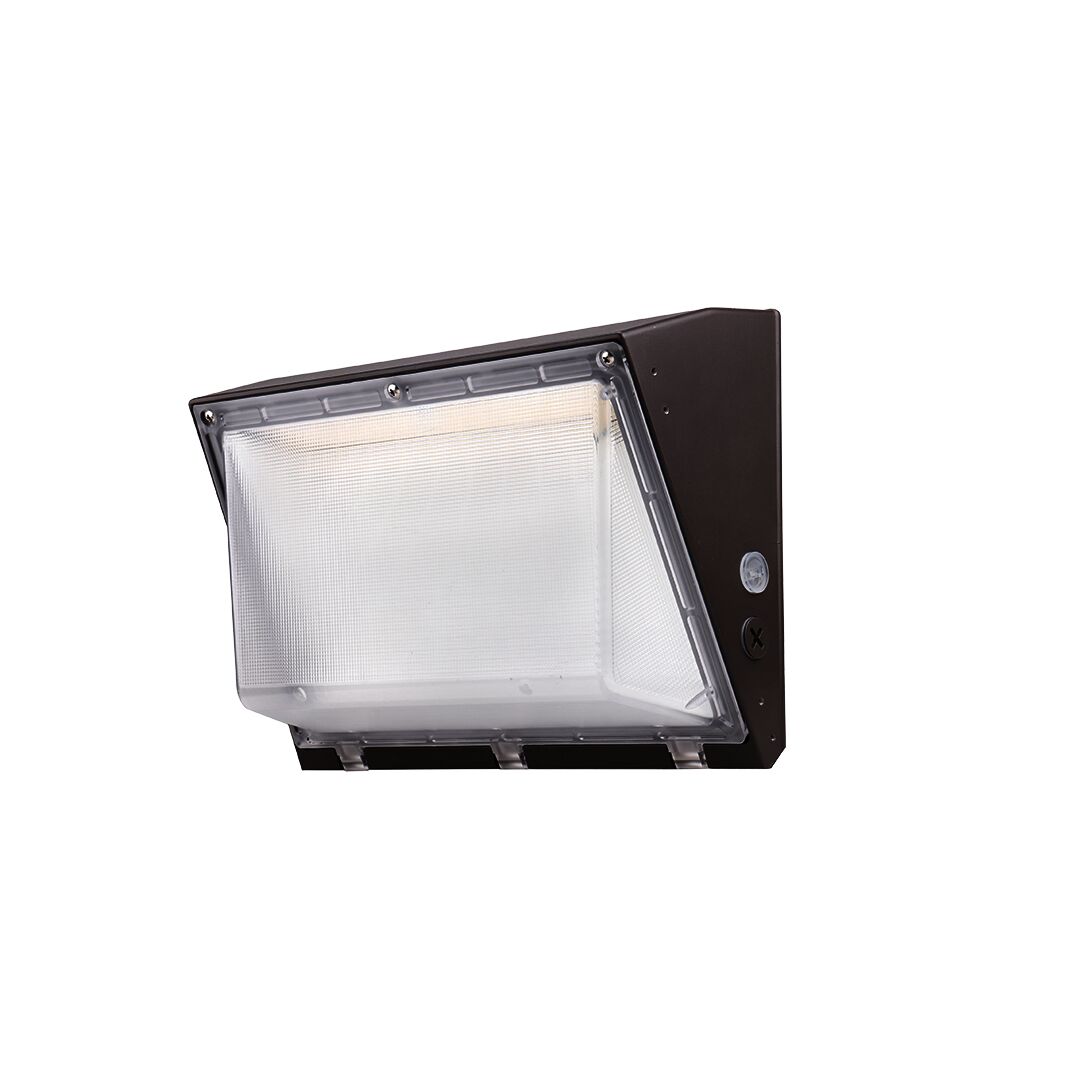

Hexa Half Cut Wall Pack 75W PS
For Exterior Walls, Parking Areas, and Industrial Applications. Available in Selectable Wattage & CCT- 45W/60W/75W.
The Half Cut Wall Packs are designed with a sleek, modern aesthetic and advanced lighting technology to provide focused, efficient illumination while minimizing light spillage. Ideal for enhancing the visibility and appeal of any outdoor environment, these fixtures combine form and function seamlessly. Best of all, they maintain the same footprint as traditional HID wall packs, allowing for straightforward replacements without the need for retrofitting or additional modifications.
Applications:
Exterior Building Lighting, Yard and Dock Lighting, Parking Lot Lighting, Industrial Lighting, Security Lighting, and Airport Lighting.
Resources & Downloads
Specsheets
IES File
Variations
| Model No. | Wattage | System Lumens | CCT | Input Current | Power Factor | Input Voltage (120V) |
| HL-WP-MW-MCCT-75W-PS | 45W/60W/75W | 5400lm/7200lm/9000lm | 3000K/4000K/5000K | 0.417A/0.555A/0.694A | 0.90 | 120-277Vac |
Max Lumens
9000LM
Min Lumens
5400LM
Wattage
45W/60W/75W
Color Temperatures
3000K/4000K/5000K
Features & Specifications
- Long Life
- Energy Efficiency
- Ecologically Friendly
- Durable Quality
- High efficacy with 120W light providing upto 14,400 lumens
- Selectable wattage & CCT
- Operating temp: -20°C to +40°C
- 50,000-hour lifespan
- 5-year warranty
Frequently Asked Questions (FAQ's)
What wattage and lumen options are available?
This model offers selectable wattages of 45W, 60W, and 75W, producing up to approximately 9,000 lumens at 75W for bright, efficient outdoor illumination.
Does it come with a warranty?
Yes, the product includes a 5-year warranty standard, providing confidence in long-term performance and reliability.
Is 75W enough for outdoor wall lighting?
Yes, 75W provides strong illumination for medium outdoor areas.
What does half-cut wall pack mean?
Half-cut means light is directed outward to light up larger area. Not just pathways.
What voltage range does this wall pack support?
The fixture operates on standard commercial input voltage, typically 120–277V AC, making it compatible with most outdoor electrical systems. Havells also stock wallpacks rate dfor 277-480V.
