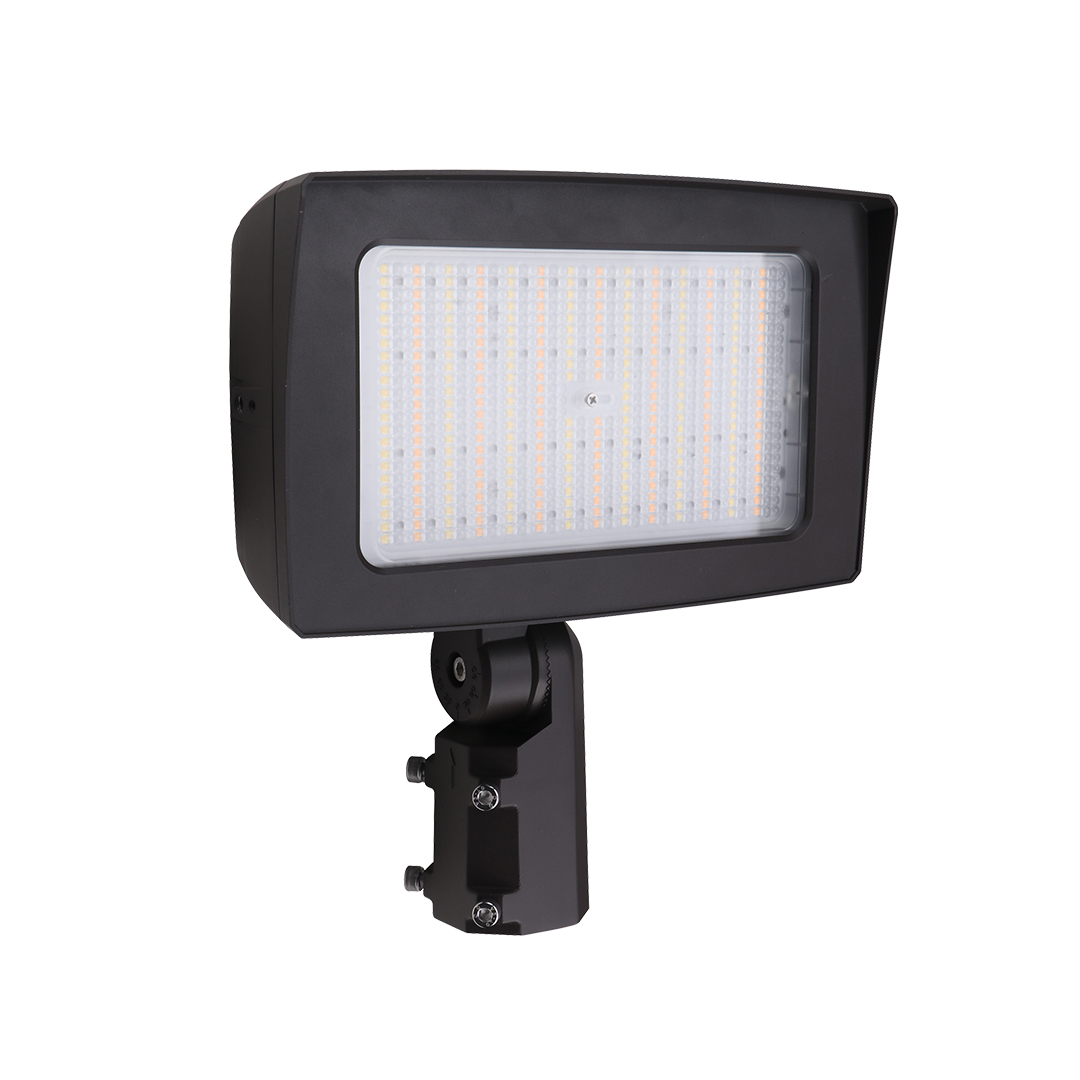

Flexi Flood Light-150W
Wattage: 100W/120W/150W
Max Lumens: 22,500lm
CCT: 3000K/4000K/5000K
Features & Benefits
- Selectable Wattage, CCT & Light Distribution
- Up to 150 lm/W and 0-10V Dimming Standard
- Built-In Photocell with ON/OFF Switch
- Built-In 6kV Surge Protection
Performance Data
| 3000K (>80 CRI) | 4000K (>80 CRI) | 5000K (>80 CRI) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Voltage | Distribution | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-FL-MW-MCCT-ML3-150W | 100W/120W/150W | 120-277 Vac | 7H6V | 19,500lm | 130 lm/W | 22,500lm | 150 lm/W | 21,000lm | 140 lm/W |
| 5H5V | 19,500lm | 130 lm/W | 22,500lm | 150 lm/W | 21,000lm | 140 lm/W | |||
| 5H5V | 19,500lm | 130 lm/W | 22,500lm | 150 lm/W | 21,000lm | 140 lm/W | |||
Product Summary
For outdoor basketball and badminton courts, warehouse and toll stations. Available in 100W/120W/150W
The Flexi LED Flood Light is designed to deliver powerful, uniform illumination for demanding outdoor and industrial applications. Its durable die-cast aluminum housing, configurable light distribution, and selectable wattage and CCT allow the fixture to be configured according to the required light level and color temperature, making one fixture suitable for multiple project needs. Flexible performance options make it a practical solution for projects that require dependable illumination with installation flexibility.
Applications:
Outdoor basketball court, tennis court, badminton court, warehouse, factory, workshops and highway toll station.
Product Specification
Efficacy
150 lm/W
Beam Angle (Selectable)
7H6V/6H6V/5H5V
THD
≤20%
Operating Temp.
-40°C to +50°C
Mounting
Knuckle / C Bracket / Slip fitter
CCT (Selectable)
3000/4000/5000K
Input Voltage
120–277 Vac | 277–480 Vac
Surge Protection
L-N:6kV, L&N-E:6kV
Warranty
5 Years
Housing Material
Aluminum
CRI
>80
Power Factor (PF)
≥0.9
Dimming
0-10V standard
Finish
Bronze
Lens Type
Glass
