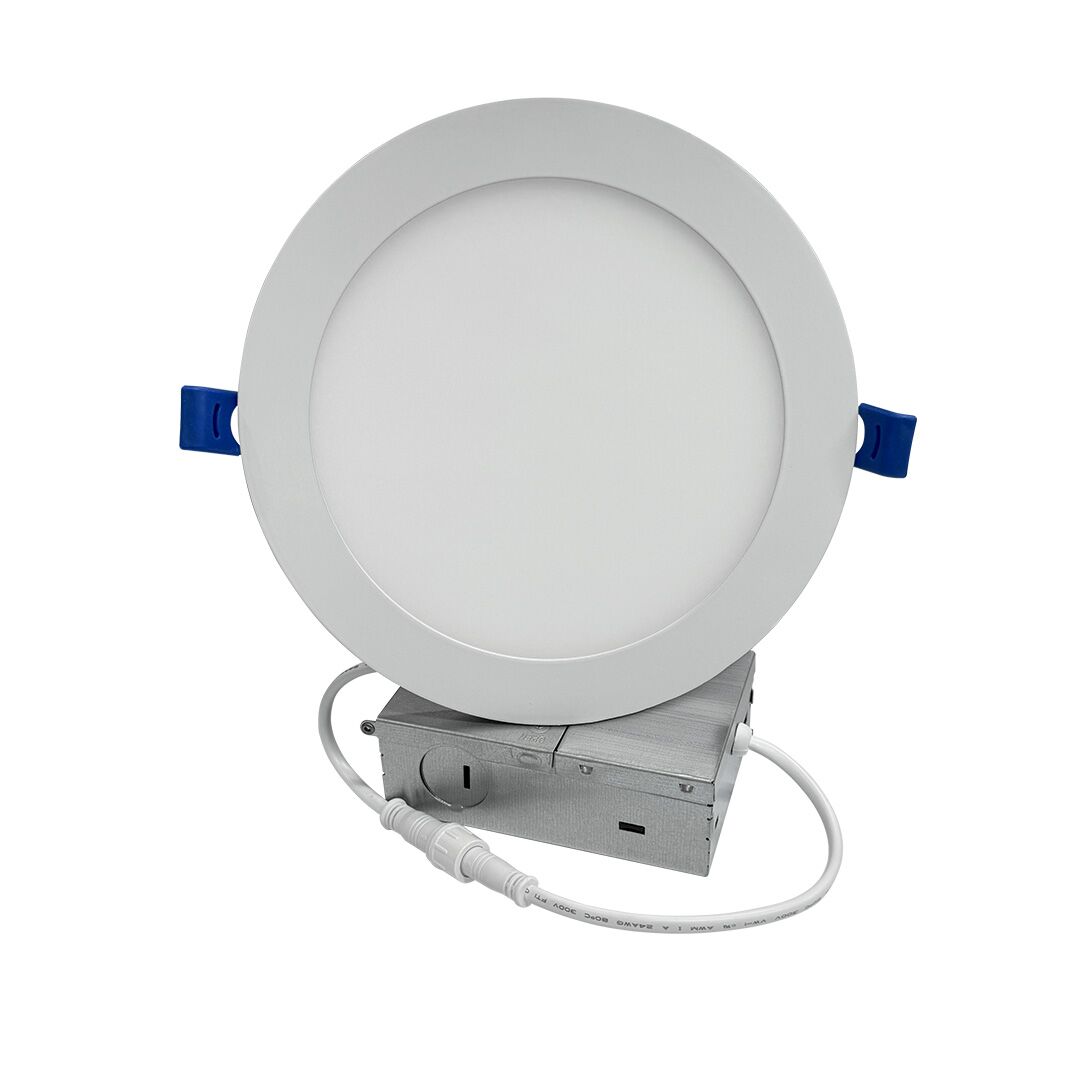

External Driver Downlight 6 inch
Wattage: 12W
Max Lumens: 985lm
CCT: 2700K|3000K|3500K|4000K|5000K
Features & Benefits
- 90 CRI with TRIAC Dimming and Aluminum Powder-Coated
- New Construction & Retrofit
- Wide 120° Beam Angle and Selectable CCT
- 50,000-Hour Rated Life
- 5-year warranty
Performance Data
| 2700K (90 CRI) | 3000K (90 CRI) | 3500K (90 CRI) | 4000K (90 CRI) | 5000K (90 CRI) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-DLE-12W-MCCT-6 Inch | 12W | 0.110A | 840lm | 70 lm/W | 900lm | 75 lm/W | 985lm | 82 lm/W | 985lm | 82 lm/W | 900lm | 75 lm/W |
Product Summary
For Commercial Luminaries, Indoor Lighting, and Offices. Available in Wattages- 12W and has Selectable CCT.
The External Driver LED Downlight is a versatile, low-profile lighting solution designed for clean and seamless recessed installations. Its slim design installs directly into the ceiling without requiring a traditional housing or can, making it well-suited for new construction and retrofit applications. With selectable color temperature, TRIAC dimming, high color rendering, and a wide beam angle, it provides flexible and comfortable illumination for a variety of indoor spaces.
Applications:
Bathroom, Bedroom, Dining Room, Home Office, Kitchen, and Living Room.
Product Specification
Efficacy 82 lm/W
CCT Options 2700/3000/3500/4000/5000K
CRI 90
Beam Angle 120°
Input Voltage 120 Vac
Power Factor (PF) >0.9
THD NA
Dimming Triac
Operating Temp. -20°C to +45°C
Warranty 5 Years
Finish White
Mounting Recessed
Housing Material Aluminum Powder Coated
Lens Type Polystyrene (PS)
FAQ
Frequently Asked Questions (FAQ's)
Are these downlights rated for damp locations?
Many external driver downlights are damp-location rated, making them suitable for bathrooms, covered porches, and kitchens where moisture may be present. Always check specific model ratings.
Can I install LED downlights in a bathroom?
Yes, if the downlight is rated for damp locations and installed per electrical codes.
Do they run cool and safe?
Yes, LEDs produce far less heat than traditional recessed lights. The external driver and heat-managing design keep temperatures low for safe operation and longer lifespan.
What key specifications define an external driver downlight?
External driver downlights include an LED fixture and a separate driver box. Specs typically include wattage, lumen output, color temperature (CCT), CRI, beam angle, and driver efficiency for consistent performance and energy savings.
What color temperatures are available?
These downlights often come in warm to cool white options (e.g., 2700K, 3000K,3500, 4000K, 5000K) to match residential, office, or retail lighting needs with natural or task-oriented light.
