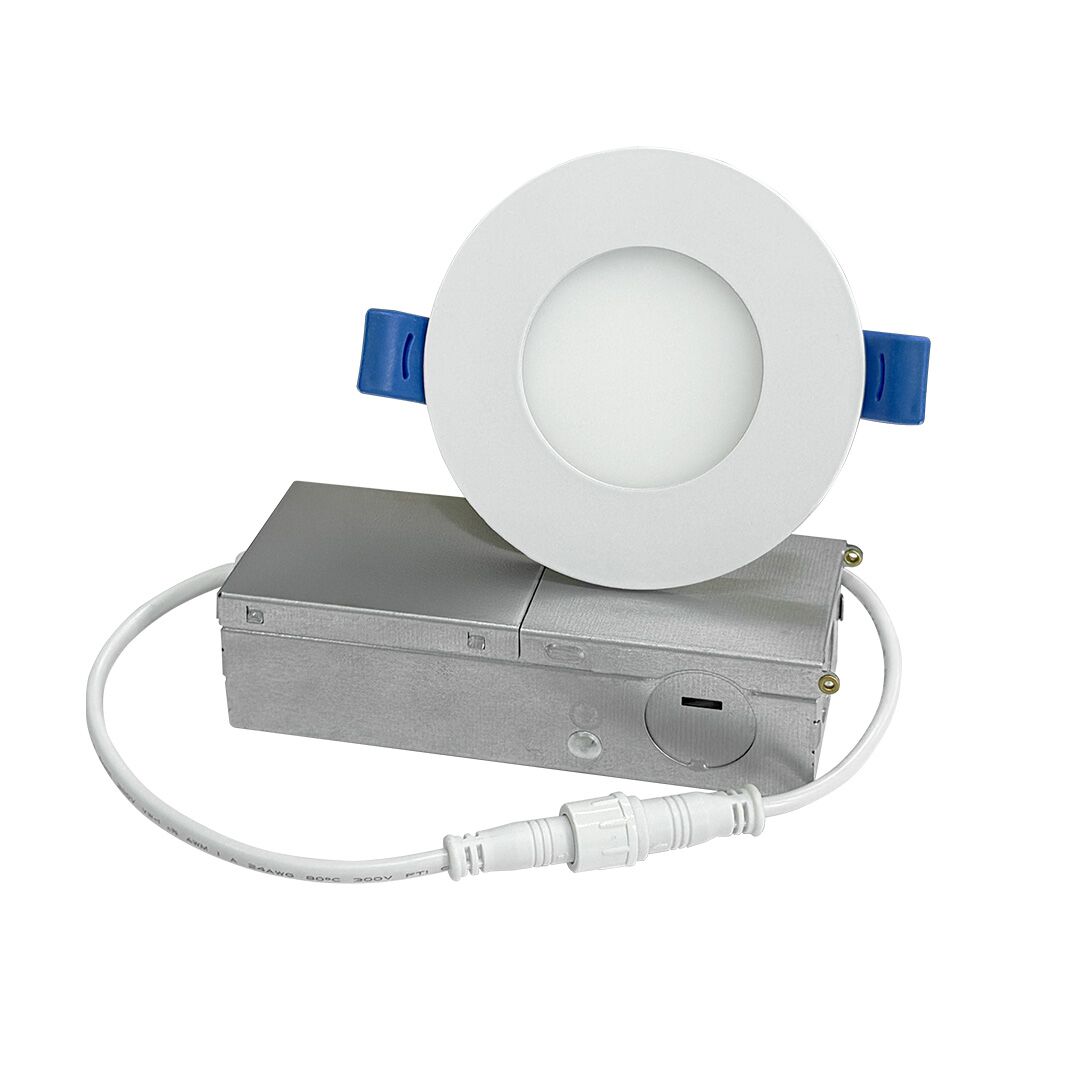

External Driver Downlight 3 inch
Wattage: 6W
Max Lumens: 492lm
CCT: 2700K|3000K|3500K|4000K|5000K
Features & Benefits
- 90 CRI with TRIAC Dimming and Aluminum Powder-Coated
- New Construction & Retrofit
- Wide 120° Beam Angle and Selectable CCT
- 50,000-Hour Rated Life
- 5-year warranty
Performance Data
| 2700K (90 CRI) | 3000K (90 CRI) | 3500K (90 CRI) | 4000K (90 CRI) | 5000K (90 CRI) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-DLE-6W-MCCT-3 Inch | 6W | 0.055A | 420lm | 70 lm/W | 450lm | 75 lm/W | 492lm | 82 lm/W | 492lm | 82 lm/W | 450lm | 75 lm/W |
Product Summary
For Commercial Luminaries, Indoor Lighting, and Offices. Available in Wattages- 6W and has Selectable CCT.
The External Driver LED Downlight is a versatile, low-profile lighting solution designed for clean and seamless recessed installations. Its slim design installs directly into the ceiling without requiring a traditional housing or can, making it well-suited for new construction and retrofit applications. With selectable color temperature, TRIAC dimming, high color rendering, and a wide beam angle, it provides flexible and comfortable illumination for a variety of indoor spaces.
Applications:
Bathroom, Bedroom, Dining Room, Home Office, Kitchen, and Living Room.
Product Specification
Efficacy 82 lm/W
CCT Options 2700/3000/3500/4000/5000K
CRI 90
Beam Angle 120°
Input Voltage 120 Vac
Power Factor (PF) >0.9
THD NA
Dimming Triac
Operating Temp. -20°C to +45°C
Warranty 5 Years
Finish White
Mounting Recessed
Housing Material Aluminum Powder Coated
Lens Type Polystyrene (PS)
