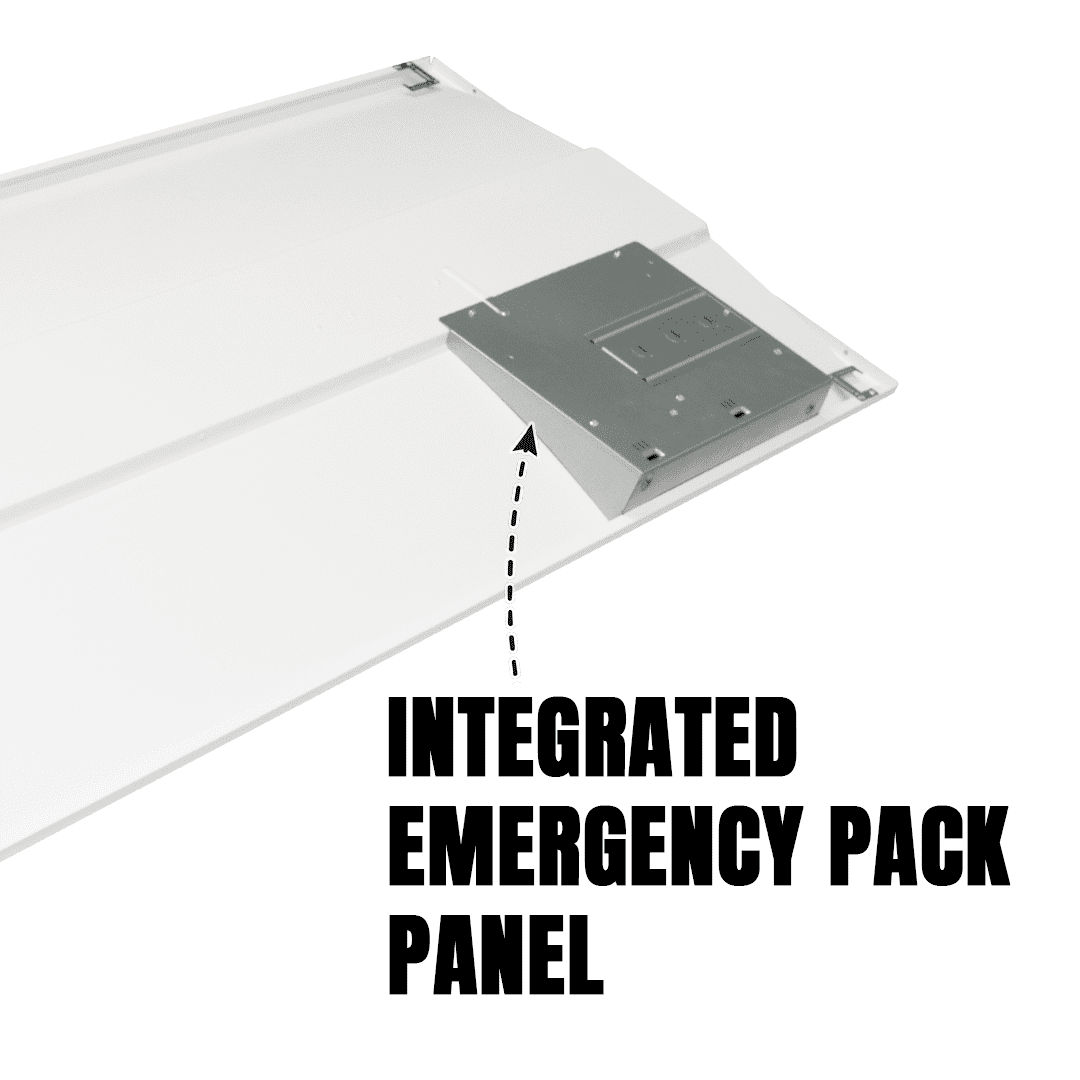

2×4 Troffer Center Basket with Emergency Battery Backup
Wattage: 50W/40W/30W
Max Lumens: 6,500lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Selectable Wattages & CCT – 30W/40W/50W
- NEC Earthquake Clip and 0-10V Dimming Compatibility
- High Efficacy – Up to 135 lm/W
- 50,000-Hour Rated Life
- Built-in Emergency Battery Backup
Performance Data
| 3500K (>80CRI) | 4000K (>80CRI) | 5000K (>80CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-TR-2X4-MW-MCCT-TROFFER-EM | 30W | 0.458A | 3,930lm | 131 lm/W | 4,080lm | 136 lm/W | 3,990lm | 130 lm/W |
| 40W | 5,120lm | 128 lm/W | 5,320lm | 133 lm/W | 5,200lm | 130 lm/W | ||
| 50W | 6,250lm | 125 lm/W | 6,500lm | 130 lm/W | 6,350lm | 127 lm/W | ||
Product Summary
Available in Selectable Wattage & CCT-30W/40W/50W
The Havells Troffer Center Basket with Emergency Battery Backup provides reliable, energy-efficient illumination with added peace of mind. In the event of a power outage, the built-in battery backup automatically activates, helping provide continuous lighting for safe egress. With selectable wattage and CCT, this fixture offers the same clean design and performance, plus emergency functionality for critical applications.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Modern work spaces, and Hospital premises.
Product Specification
Efficacy 130 lm/W
CCT Options 3500K/4000K/5000K
CRI ≥80
Beam Angle 120°
Input Voltage 120-277 Vac
Power Factor (PF) ≥0.9
THD <20%
Dimming 0-10V standard
Operating Temp -20℃ to +45℃
Warranty 5 Years
Finish White
Mounting Recessed Ceiling
Housing Material Metal+ Aluminum Powder Coated
Lens Type PC Lens, 120 degree HB Grade
FAQ
Frequently Asked Questions (FAQ's)
How does the emergency battery backup function?
The integrated emergency battery activates automatically when main power fails, providing temporary illumination for safe movement and visibility. This feature supports life-safety lighting requirements and helps facilities meet emergency lighting codes in commercial and institutional buildings.
Can the light output be adjusted?
Yes, selectable wattage enables installers to adjust lumen output during installation. This supports energy optimization, lighting design flexibility, and future adaptability without replacing fixtures, making it practical for both new projects and retrofit applications.
What safety features are included?
The troffer provides emergency illumination during outages and is built to meet electrical safety listings. Uniform, low-glare light improves visibility and visual comfort, supporting safer work environments and reducing risks associated with poor lighting conditions.
