2×2 Troffer Center Basket with Emergency Battery Backup
Wattage: 40W/30W/20W
Max Lumens: 5,200lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Selectable Wattages & CCT – 20W/30W/40W
- NEC Earthquake Clip and 0-10V Dimming Compatibility
- High Efficacy – Up to 135 lm/W
- 50,000-Hour Rated Life

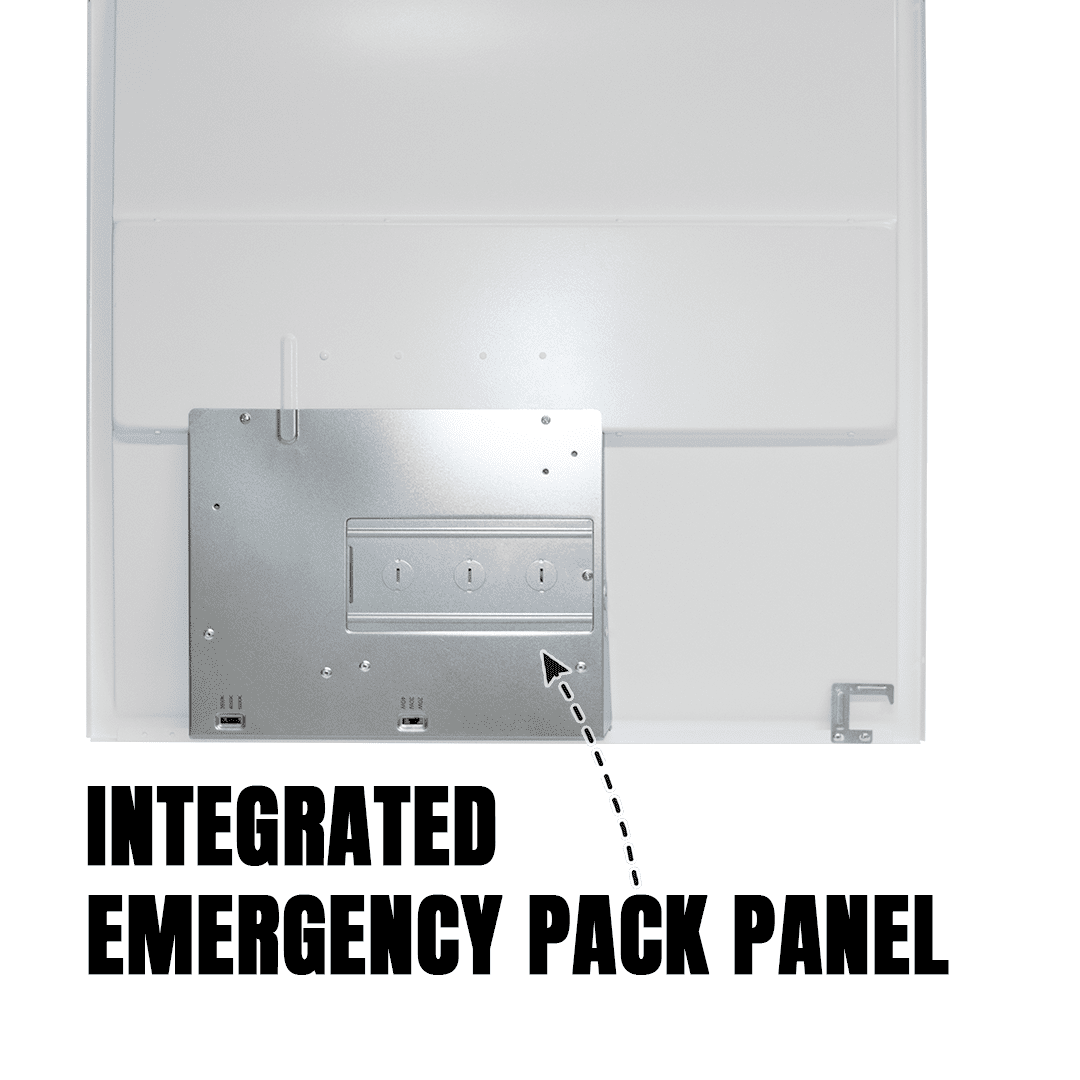

- Built-in Emergency Battery Backup
Performance Data
| 3500K (>80CRI) | 4000K (>80CRI) | 5000K (>80CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-TR-2X2-MW-MCCT-TROFFER-EM | 20W | 0.367A | 2,620lm | 131 lm/W | 2,720lm | 136 lm/W | 2,660lm | 133 lm/W |
| 30W | 3,840lm | 128 lm/W | 3,990lm | 133 lm/W | 3,900lm | 130 lm/W | ||
| 40W | 5,000lm | 125 lm/W | 5,200lm | 130 lm/W | 5,080lm | 127 lm/W | ||
Product Summary
Available in Selectable Wattage & CCT-20W/30W/40W
The Havells Troffer Center Basket with Emergency Battery Backup provides reliable, energy-efficient illumination with added peace of mind. In the event of a power outage, the built-in battery backup automatically activates, helping provide continuous lighting for safe egress. With selectable wattage and CCT, this fixture offers the same clean design and performance, plus emergency functionality for critical applications.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Modern work spaces, and Hospital premises.
Product Specification
Efficacy
130 lm/W
CCT Options
3500K/4000K/5000K
CRI
≥80
Beam Angle
120°
Input Voltage
120-277 Vac
Power Factor (PF)
≥0.9
THD
<20%
Dimming
0-10V standard
Operating Temp
-20℃ to +45℃
Warranty
5 Years
Finish
White
Mounting
Recessed Ceiling
Housing Material
Metal+ Aluminum Powder Coated
Lens Type
PC Lens, 120 degree HB Grade
FAQ
Frequently Asked Questions (FAQ's)
What is the Troffer Center Basket Light with Emergency Battery Backup 2×2?
The 2×2 center basket LED troffer is a recessed ceiling fixture with integrated emergency battery backup. It delivers uniform illumination and maintains light output during power outages, making it ideal for commercial and institutional environments.
Where can this troffer light be installed?
Designed for standard 2×2 T-grid ceilings, it suits offices, schools, hospitals, retail spaces, corridors, and commercial interiors requiring reliable general and emergency illumination.
Is this troffer compliant with safety standards?
Yes, the fixture is ETL and UL listed, confirming it meets recognized electrical safety standards. It is also rated for both dry and damp locations, expanding its suitability for various indoor commercial environments.
