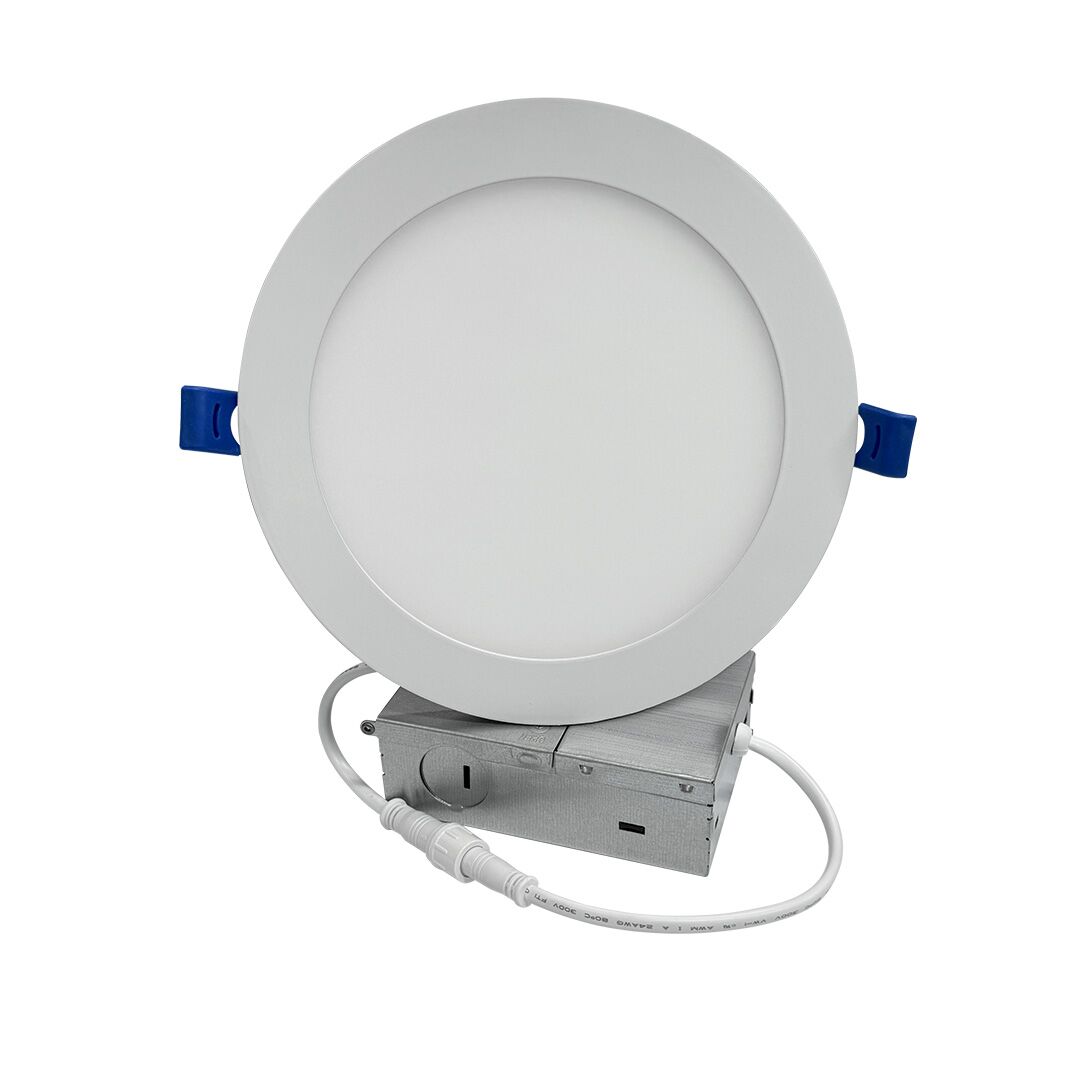

External Driver Downlight 6 inch
For Commercial Luminaries, Indoor Lighting, and Offices. Available in Wattages- 12W and has Selectable CCT.
The External Driver Flat Disk is a versatile, low-profile LED round downlight ideal for new construction and drywall ceilings. It clips directly into the ceiling without the need for housing or a ceiling can. Equipped with an external driver, it includes everything needed for installation. Rated for damp locations, it comes with a 5-year warranty.
Applications:
Commercial Luminaries, Indoor Lighting, Office, Hotels, Ceiling, Bathroom, and Residential.
Variations
| Model No. | Wattage | System Lumens | CCT | Input Current | Power Factor | Input Voltage (120V) |
| HL-DLE-12W-MCCT-6 Inch | 12W | 985lm | 2700K|3000K|3500K|4000K|5000K | 0.111A | 0.9 | 120Vac |
Max Lumens
1480LM
Min Lumens
492LM
Wattage
12W
Color Temperatures
2700K|3000K|3500K|4000K|5000K
Features & Specifications
- Long Life
- Energy Efficiency
- Ecologically Friendly
- Durable Quality
- High efficacy with 8’ light providing upto 1480 lumens.
- Operating Temperature: -20°C to +45°C
- Rated for 50,000 hours
- 5-year warranty
Frequently Asked Questions (FAQ's)
Are these downlights rated for damp locations?
Many external driver downlights are damp-location rated, making them suitable for bathrooms, covered porches, and kitchens where moisture may be present. Always check specific model ratings.
Can I install LED downlights in a bathroom?
Yes, if the downlight is rated for damp locations and installed per electrical codes.
Do they run cool and safe?
Yes, LEDs produce far less heat than traditional recessed lights. The external driver and heat-managing design keep temperatures low for safe operation and longer lifespan.
What key specifications define an external driver downlight?
External driver downlights include an LED fixture and a separate driver box. Specs typically include wattage, lumen output, color temperature (CCT), CRI, beam angle, and driver efficiency for consistent performance and energy savings.
What color temperatures are available?
These downlights often come in warm to cool white options (e.g., 2700K, 3000K,3500, 4000K, 5000K) to match residential, office, or retail lighting needs with natural or task-oriented light.
