Rapid mounting brackets

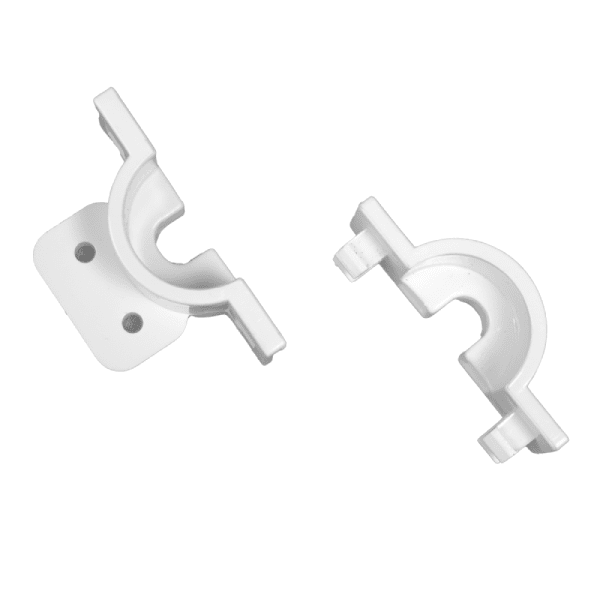

Our product, “Rapid Bracket®,” is a unique and UL Listed mounting bracket ideal for installing LED lights inside new build or existing sign cabinets and pylon signs alike. It was designed with the thought of simplifying the problem of installing LED lights within sign cabinets. With our sign light tube bracket, you can install LED light tubes in a safe and hassle-free manner. Our range of Rapid Mounting Brackets comprises of wall mounting brackets and side mounting brackets. They are the ultimate solution for your needs related to LED light installation in sign boards, under awnings, and other areas alike.

Category:

Resources & Downloads


Specsheets

Variations

Model Name Size WATTAGE Lumens CCT Lense Clearance need to use rapid bracket in cabinet
2SL07T10XX0450 F18 7W 910lm 6000K Clear 16 1/4"
2SL13T10XX0600 F24 13W 1560lm 6000K Clear 22 1/4"
2SL13T10XX0750 F30 13W 1690lm 6000K Clear 28 1/4"
2SL16T10XX0900 F36 16W 2080lm 6000K Clear 34 1/4"
2SL21T10XX1050 F42 21W 2700lm 6000K Clear 40 1/4"
2SL21T10XX1200 F48 21W 2730lm 6000K Clear 46 1/4"
2SL28T10XX1500 F60 28W 3640lm 6000K Clear 58 1/4"
2SL28T10XX1600 F64 28W 3640lm 6000K Clear 62 1/4"
2SL38T10XX1800 F72 38W 4750lm 6000K Clear 70 1/4"
2SL38T10XX2100 F84 38W 4750lm 6000K Clear 82 1/4"
2SL51T10XX2475 F96 51W 6630lm 6000K Clear 94 1/4"
2SL51T10XX2700 F108 51W 6630lm 6000K Clear 106 1/8"
2SL60T10XX2925 F117 60W 8450lm 6000K Clear 115 1/8"
2SL60T10XX3000 F120 60W 8450lm 6000K Clear 118 1/8"

Features & Specifications


  • They are UL Listed and do not compromise the warranty of your cabinets.
  • They are easy to use and install.
  • They are highly compatible for all sizes and many locations.
  • They are priced competitively.
  • They come with quality assurance.
