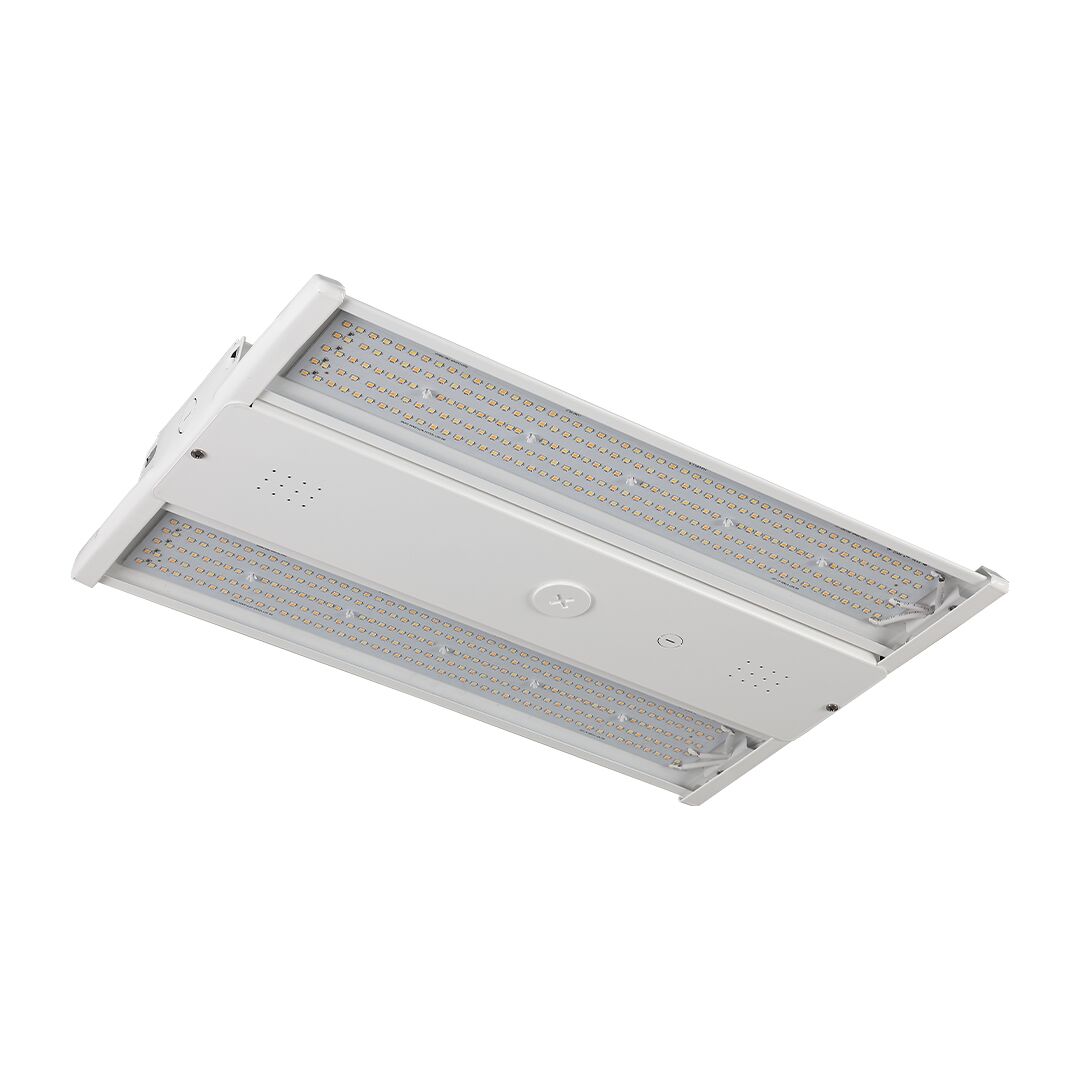

Linear High bay LED Light 180W
Wattage: 180W/160W/140W
Max Lumens: 24,300lm
CCT: 5000K/4000K/3000K
Features & Benefits
- Selectable Wattage & CCT with 0–10V Dimming
- Plug-and-Play Sensor-Ready
- Up to 135 lm/W Efficacy
- 50,000-Hour Rated Life
Performance Data
| 3000K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-LHB-MW-MCCT-180W | 140W/160W/180W | 1.228A/1.404A/1.579A | 18,900lm | 135 lm/W | 21,600lm | 135 lm/W | 24,300lm | 135 lm/W |
Product Summary
Available in Selectable Wattage & CCT – 140W/160W/180W.
The Havells Linear High Bay LED Light delivers efficient, reliable illumination for large indoor spaces. With on-field-selectable wattage and CCT, it offers the flexibility to customize light output while reducing inventory requirements. The plug-and-play sensor port enables quick occupancy sensor integration without additional wiring, simplifying installation and future upgrades.
Application :
Warehouses, Distribution Centers, Manufacturing Facilities.
Product Specification
Efficacy
135 lm/W
CCT (Selectable)
3000K / 4000K / 5000K
CRI
≥80
Beam Angle
120°
Input Voltage
120-277 Vac | 277-480 Vac
Power Factor (PF)
0.95
THD
≤10%
Dimming
0-10V Standard
Operating Temp.
-20℃ to +45℃
Warranty
5 Years
Finish
White
Mounting
Suspended and Ceiling
Housing Material
Metal Powder Coated
Lens Type
Clear Diffuser
FAQ
Frequently Asked Questions (FAQ's)
What is the 180W high bay LED light suitable for?
A 180W high bay LED delivers powerful, uniform illumination for large spaces like warehouses, factories, distribution centers, and gymnasiums with high ceilings.
What voltage does this 180W high bay support?
Our commercial high bay LEDs typically support 120–277 V input, with some models also available in 480 V variants for industrial systems, providing broad compatibility.
Is LED lighting safer than traditional high bay lighting?
Yes, LEDs operate at a lower temperatures, start instantly, and eliminate bulb rupture risks associated with metal halide lamps.
Linear High Bay LED Light 180W – Overview
A 180W linear high bay LED delivers high-output, energy-efficient lighting for US warehouses and industrial spaces with ceilings between 20–35 feet. It replaces 400–600W HID fixtures, reduces energy use by up to 70%, supports lighting controls, and lowers long-term maintenance costs.
Which wattage is best for warehouse lighting?
150W suits standard warehouses, 180W works best for high-output industrial areas, and 240W is ideal for large distribution centers with very high ceilings.
