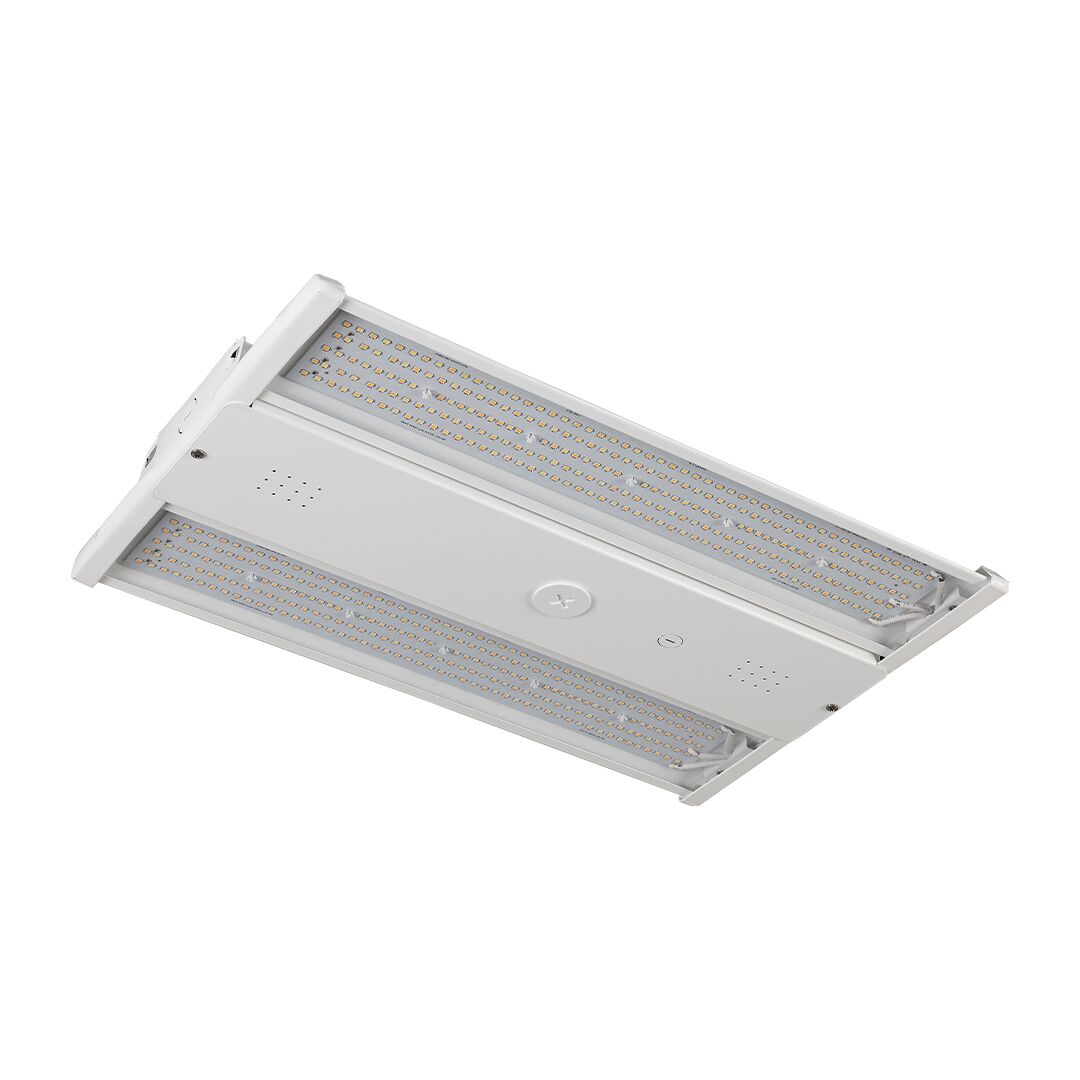

Linear High bay LED Light 150W
Wattage: 150W/135W/120W
Max Lumens: 20,250lm
CCT: 5000K/4000K/3000K
Features & Benefits
- Selectable Wattage & CCT with 0–10V Dimming
- Plug-and-Play Sensor-Ready
- Up to 135 lm/W Efficacy
- 50,000-Hour Rated Life
Performance Data
| 3000K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-LHB-MW-MCCT-150W | 120W/135W/150W | 1.053A/1.184A/1.316A | 16,200lm | 135 lm/W | 18,225lm | 135 lm/W | 20,250lm | 135 lm/W |
Product Summary
Available in Selectable Wattage & CCT – 120W/135W/150W.
The Havells Linear High Bay LED Light delivers efficient, reliable illumination for large indoor spaces. With on-field-selectable wattage and CCT, it offers the flexibility to customize light output while reducing inventory requirements. The plug-and-play sensor port enables quick occupancy sensor integration without additional wiring, simplifying installation and future upgrades.
Application :
Warehouses, Distribution Centers, Manufacturing Facilities.
Product Specification
Efficacy 135 lm/W
CCT (Selectable) 3000K / 4000K / 5000K
CRI ≥80
Beam Angle 120°
Input Voltage 120-277 Vac | 277-480 Vac
Power Factor (PF) 0.95
THD ≤10%
Dimming 0-10V Standard
Operating Temp. -20℃ to +45℃
Warranty 5 Years
Finish White
Mounting Suspended and Ceiling
Housing Material Metal Powder Coated
Lens Type Clear Diffuser
FAQ
Frequently Asked Questions (FAQ's)
What light output and performance can I expect from the 150W high bay LED?
A 150W LED high bay typically delivers high lumen output suitable for industrial spaces, replacing traditional 400W metal halide fixtures with equal or better brightness, improving visibility while reducing energy consumption.
How high can a 150W LED high bay be installed?
A 150W linear high bay LED is typically installed at ceiling heights between 18 and 30 feet.
Can motion sensors be added?
Yes, Havells linear high bay LEDs support 0–10V dimming and occupancy sensors.
Can a 150W LED high bay replace 400W HID?
Yes, a 150W LED high bay can replace a 400W metal halide fixture.
How does a 150W LED high bay Light improve facility efficiency?
It reduces energy consumption, minimizes maintenance downtime, enhances lighting quality, and supports automated controls for smarter facility management.
