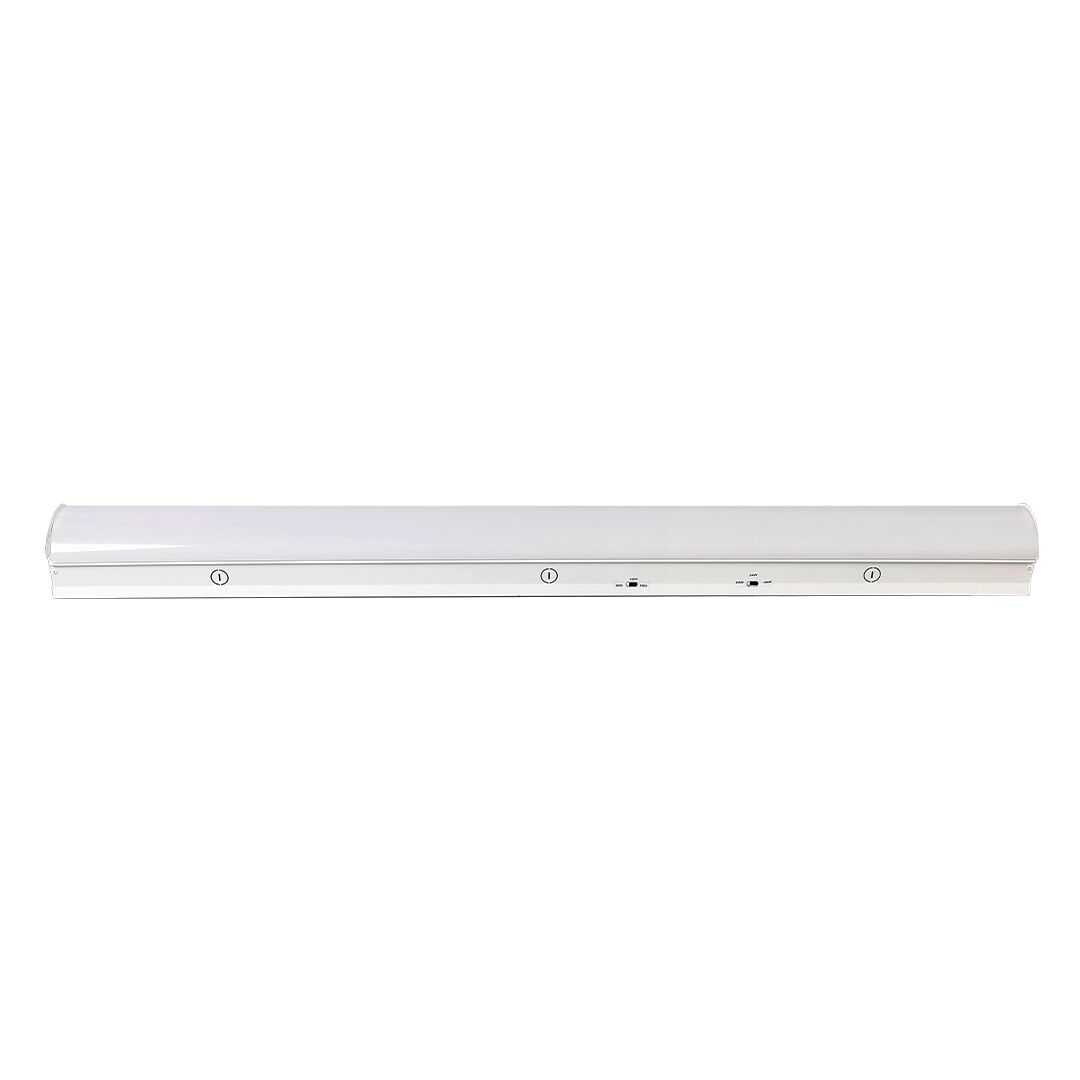

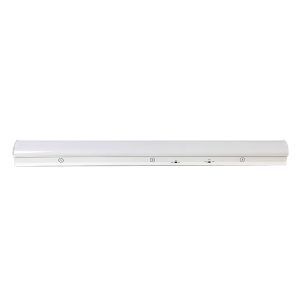

Consta Pro LED Strip Light 4 Feet
Wattage: 23W/35W/46W
Max Lumens: 5,980lm
CCT: 3500K|4000K|5000K
Features & Benefits
- Selectable Wattage & CCT
- Up to 130 lm/W and 0–10V Dimming
- Continuous-Row Mounting
- Sensor & Emergency Options
Performance Data
| 3500K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-STW-MW-MCCT-46W-4 Feet | 23W/35W/46W | 0.213A/0.324A/0.426A | 2990lm | 130 lm/W | 4550lm | 130 lm/W | 5980lm | 130 lm/W |
Product Summary
For Commercial Space, Hospital Premises, and Electric Rooms. Available in Selectable Wattage & CCT- 23W/35W/46W.
The Consta Pro LED Strip Light delivers efficient, uniform illumination in a versatile linear design. It features selectable wattage and CCT for flexible lighting performance across different spaces. Its standard-width design makes installation and fluorescent replacement easier, while single or continuous-row mounting provides added layout flexibility. Consta Pro is
built for a wide range of commercial and institutional applications.
Application:
Commercial Space, Hospital Premises, Educational institutions, Storages, Electric Rooms, Stairs and Corridors.
Product Specification
Efficacy 130 LM/W
CCT Options 3500K / 4000K / 5000K
CRI ≥80
Beam Angle 120°
Input Voltage 120-277Vac
Power Factor (PF) 0.9
THD ≤10%
Dimming 0-10V standard
Operating Temp -20℃ to +50℃
Warranty 5 Years
Finish White
Mounting Suspended and Ceiling
Housing Material Metal Powder Coated
Lens Type PC Diffuser
FAQ
Frequently Asked Questions (FAQ's)
What safety features does the Consta Pro LED Strip Light include?
Designed for indoor dry and damp locations, it operates at low temperatures with effective heat management. The LEDs emit no harmful UV or IR radiation and contain no mercury, enhancing both safety and environmental compliance.
What is the expected lifespan of the Consta Pro LED Strip Light?
The LEDs offer a long operational life—typically around 50,000 hours—reducing maintenance and replacement costs while supporting long-term facility use.
Is Consta Pro LED Strip Light good for continuous use?
Yes, it is designed for long operating hours.
What power options does the 4 ft model offer?
The 4 ft Consta Pro LED Strip Light features selectable wattages of 23 W, 35 W, and 46 W. Wattage options may vary depending on the fixture length (2 ft, 4 ft, or 8 ft) and configuration.
What voltage does it support?
The 4 ft strip light operates across 120–277 V AC, making it suitable for most electrical systems.
