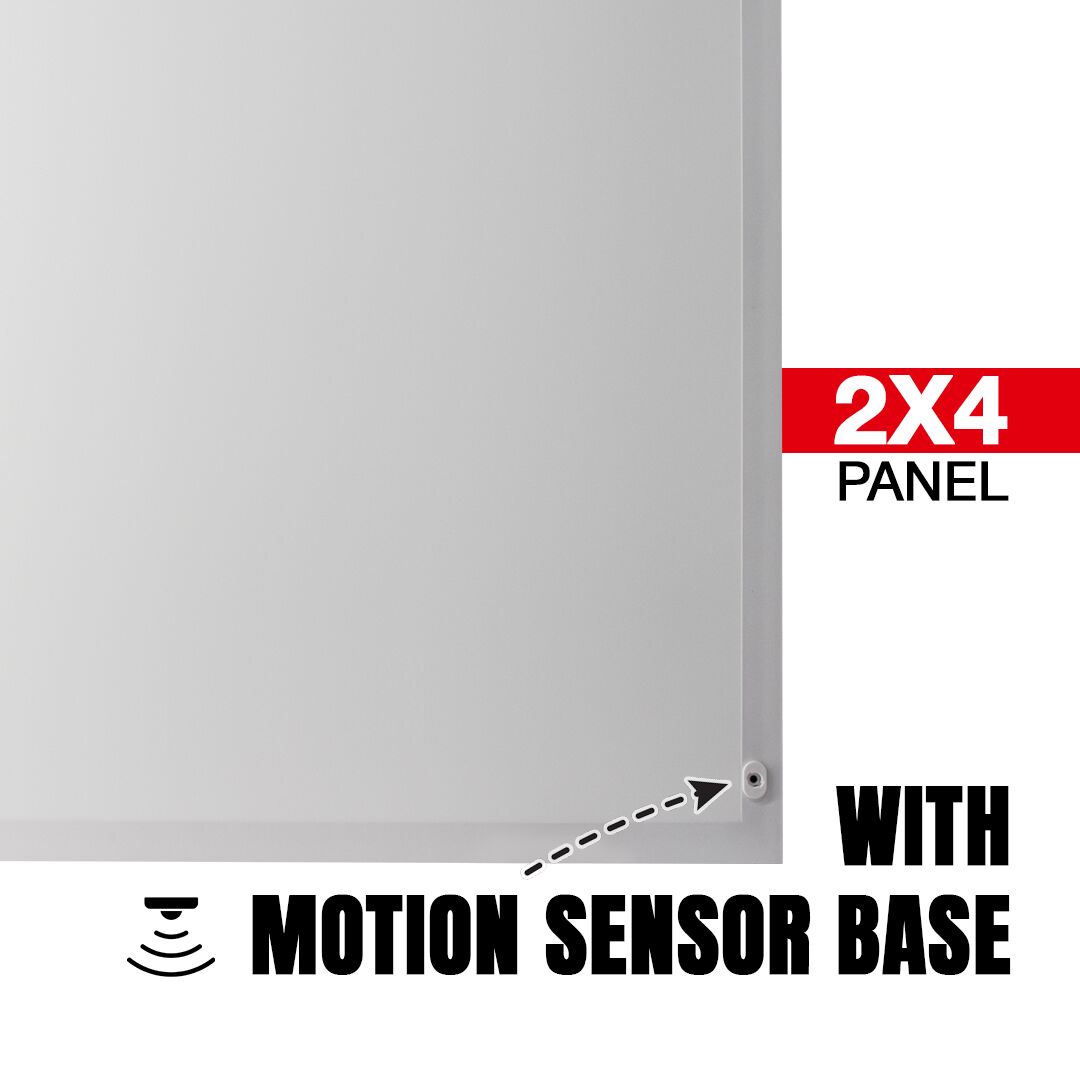

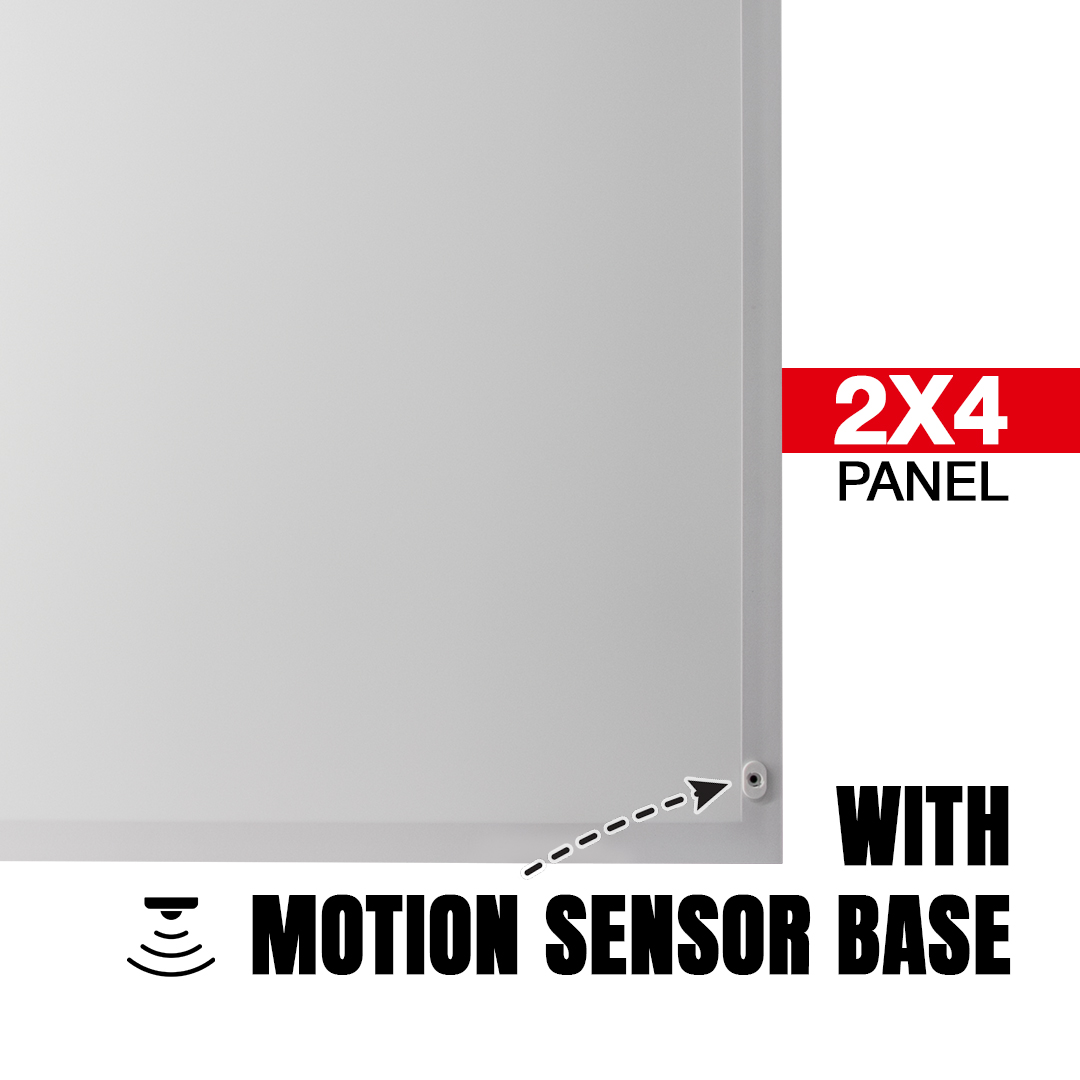

2×4 Havells Hercules Gen2 Panel with Sensor-Ready Base (Coming soon)
Wattage: 50W/40W/30W
Max Lumens: 6,250lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Selectable Wattage & CCT with 0–10V Dimming Compatibility
- Equipped with NEC Earthquake Clips and Integrated Motion Sensor Base
- High Efficacy – Up to 130 lm/W
- 50,000-Hour Rated Life
Performance Data
| 3500K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-2x4-MW-MCCT-BACK-LIT PANEL-MS | 30W | 0.278A | 3,780lm | 126 lm/W | 3,930lm | 131 lm/W | 3,840lm | 128 lm/W |
| 40W | 0.370A | 4,920lm | 123 lm/W | 5,120lm | 128 lm/W | 5,000lm | 125 lm/W | |
| 50W | 0.463A | 6,000lm | 120 lm/W | 6,250lm | 125 lm/W | 6,100lm | 122 lm/W | |
Product Summary
Available in Selectable CCT & Wattages with Sensor-Ready Base: 30W/40W/50W.
The Hercules Gen 2 LED Panel Light with Motion Sensor combines efficient, uniform illumination with automatic lighting control. Designed for commercial and indoor applications, it maintains the clean, low-profile design of the Hercules Gen 2 panel while adding occupancy sensor-based control for greater flexibility and convenience.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Data centres, Modern Work spaces, Schools, Churches, and Hospital premises.
Product Specification
Efficacy 120 lm/W
CCT (Selectable) 3500K / 4000K / 5000K
CRI ≥80
Beam Angle 120°
Input Voltage 120-277 Vac
Power Factor (PF) 0.9
THD 20%
Dimming 0-10V standard
Operating Temp. -20℃ to +45℃
Warranty 5 Years
Finish White
Mounting Recessed Ceiling Mounting
Housing Material Metal+ Aluminum Powder Coated
Lens Type PC Lens, 120 degree HB Grade
