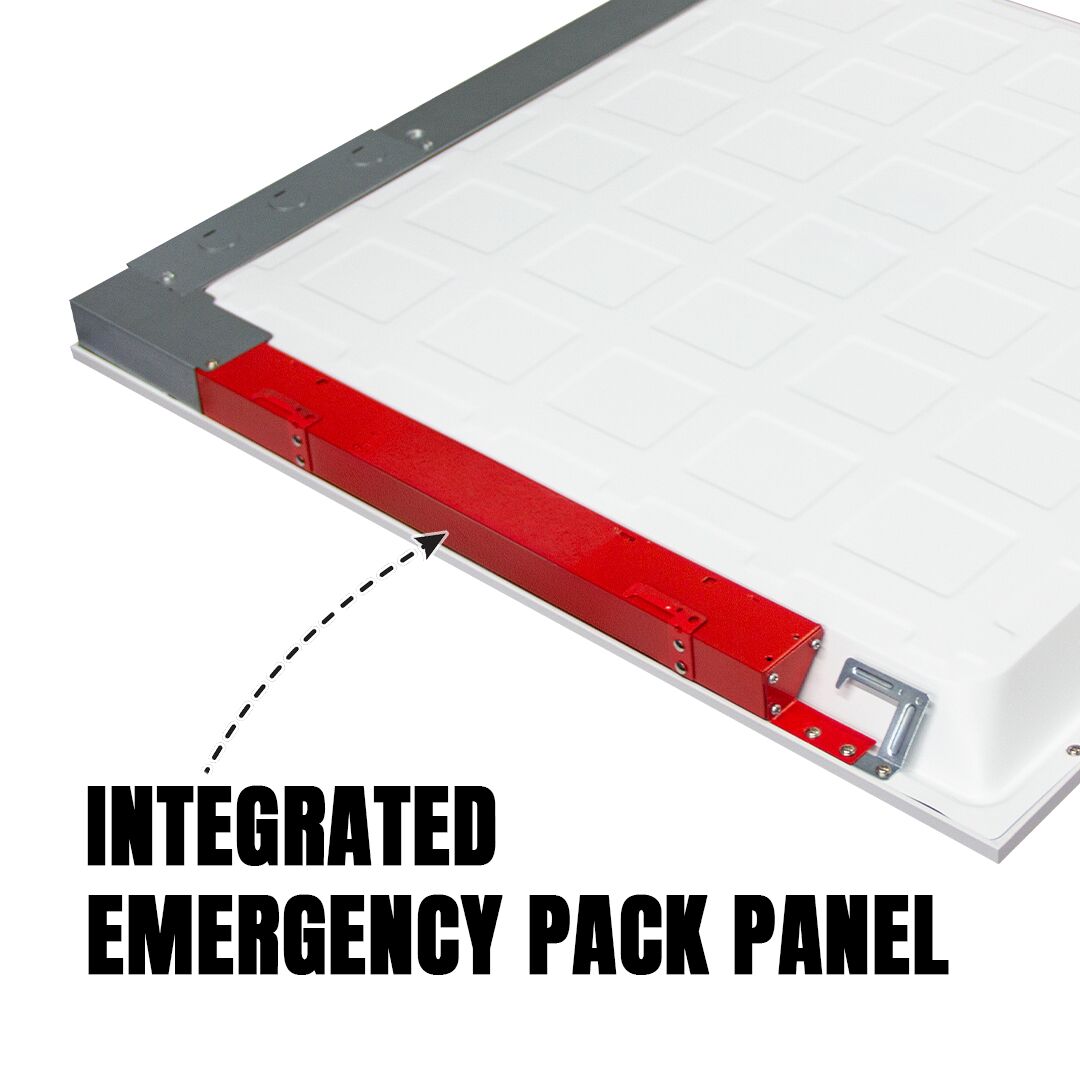

2×2 LED Backlit Panel Light with Emergency Battery Backup
Wattage: 40W/30W/20W
Max Lumens: 5,000lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Selectable Wattage & CCT with 0–10V Dimming Compatibility
- Equipped with NEC Earthquake Clips and Integrated Emergency Battery Backup
- High Efficacy – Up to 130 lm/W and 50,000-Hour Rated Life
- Recessed T-Bar Grid Ceiling Mount
Performance Data
| 3500K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-2x2-MW-MCCT-BACK-LIT PANEL-EM | 20W | 0.148A | 2,520lm | 126 lm/W | 2,620lm | 131 lm/W | 2,560lm | 128 lm/W |
| 30W | 0.241A | 3,690lm | 123 lm/W | 3,840lm | 128 lm/W | 3,750lm | 125 lm/W | |
| 40W | 0.333A | 4,800lm | 120 lm/W | 5,000lm | 125 lm/W | 4,880lm | 122 lm/W | |
Product Summary
Available in Selectable CCT & Wattages with Emergency Battery Backup: 20W/30W/40W
The Hercules Gen 2 Panel Light with Emergency Battery Backup combines efficient, uniform illumination with integrated emergency lighting capability. Designed for commercial and indoor applications, it provides the same clean, low-profile panel design as the standard Hercules Gen 2, with added backup power for emergency lighting needs.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Data centres, Modern Work spaces, Schools, Churches, and Hospital premises.
Product Specification
Efficacy
120 lm/W
CCT (Selectable)
3500K / 4000K / 5000K
CRI
≥80
Beam Angle
120°
Input Voltage
120-277 Vac
Power Factor (PF)
0.9
THD
20%
Dimming
0-10V standard
Operating Temp.
-20℃ to +45℃
Warranty
5 Years
Finish
White
Mounting
Recessed Ceiling Mounting
Housing Material
Metal+ Aluminum Powder Coated
Lens Type
PC Lens, 120 degree HB Grade
