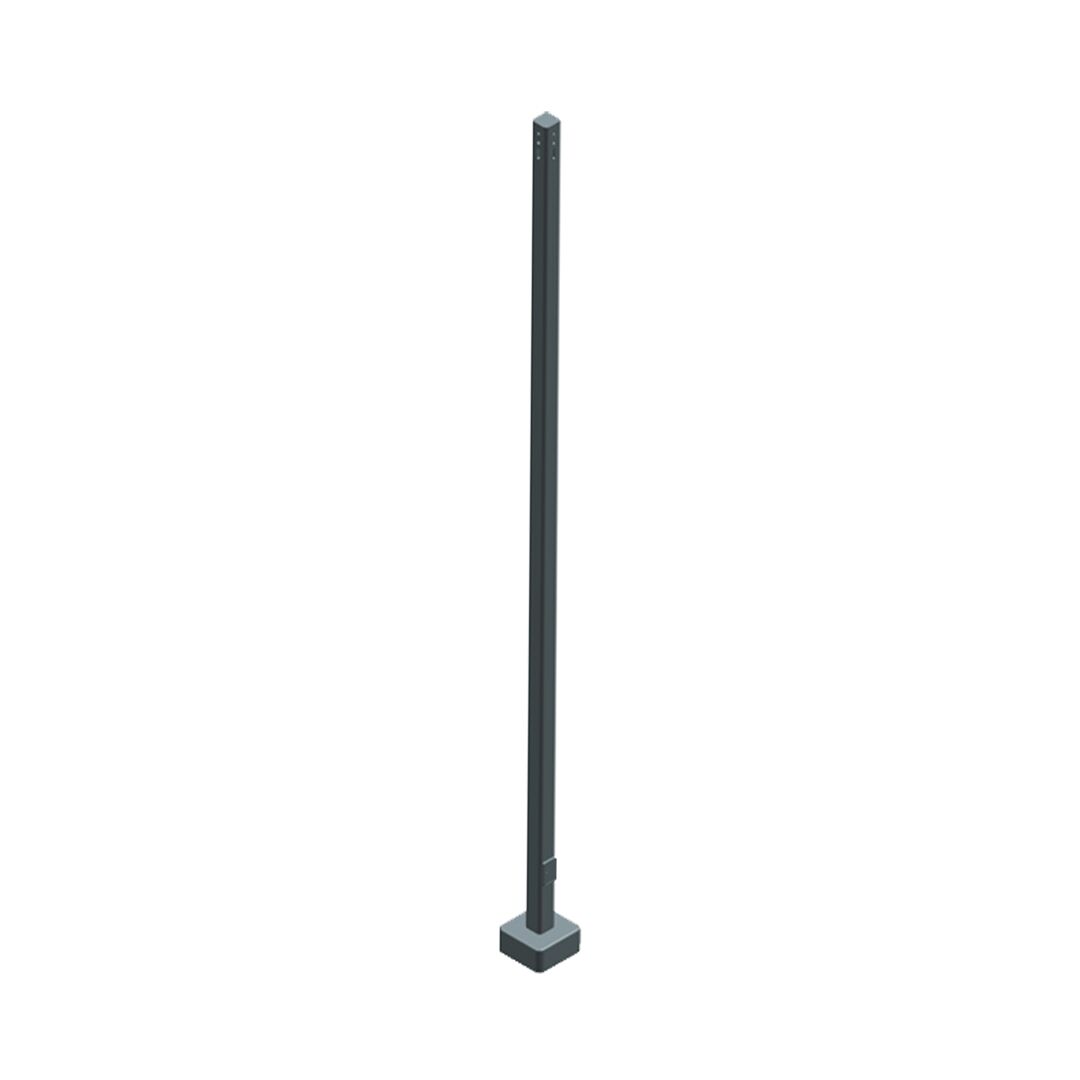

Square Steel Poles
The Straight Square Steel poles are built from high-strength steel tube and are available side-drilled for arm-mounted area lighting luminaires or with tenon mounts for flood and post-top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings, and medical facilities. Mounting heights of 15 to 25 feet can be used based on the selected luminaire application. Each pole comes with base mounting and includes a complete accessory set: four square steel poles, one spray paint, one hand hole cover, and an anchor bolt set.
Applications:
Retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.
Variations
| ORDER CODE | NOM MTG ""H"" (FT) | Shaft Size ""S"" (IN.) | Shaft Thickness (IN.) | @ 80 MPH Luminaire Wt. (lb.) 50 | @ 90 MPH Luminaire Wt. (lb.) 50 | @ 100 MPH Luminaire Wt. (lb.) 50 |
| KLSSP10XX4BG11 | 10 | 4 | 1/8 | 24.9 | 19.2 | 103 |
| KLSSP15XX4BG11 | 15 | 4 | 1/8 | 11.9 | 8.8 | 135 |
| KLSSP20XX4BG11 | 20 | 4 | 1/8 | 6.8 | 4.5 | 167 |
| KLSSP20XX4BG11 | 20 | 4 | 3/16 | 10.2 | 6.9 | 225 |
| KLSSP20XX5BG11 | 20 | 5 | 3/16 | 13.7 | 10 | 295 |
| KLSSP25XX4BG11 | 25 | 4 | 1/8 | 23.8 | 17.7 | 201 |
| KLSSP25XX4BG11 | 25 | 4 | 3/16 | 31.8 | 23.8 | 272 |
| KLSSP25XX5BG11 | 25 | 5 | 3/16 | 3.2 | 1.4 | 375 |
| KLSSP30XX4BG11 | 30 | 4 | 1/8 | 5.2 | 2.5 | 241 |
| KLSSP30XX4BG11 | 30 | 4 | 3/16 | 8.6 | 5.6 | 322 |
| KLSSP15XX5BG11 | 15 | 5 | 3/16 | 16.1 | 11.3 | 464 |
| KLSSP30XX5BG11 | 30 | 5 | 1/8 | 22 | 15.7 | 310 |
Features & Specifications
Mounting Type
Base Mount
Shaft Size (inches)
4 inches
Mounting Height (Height)
15, 18 , 20 , 25
