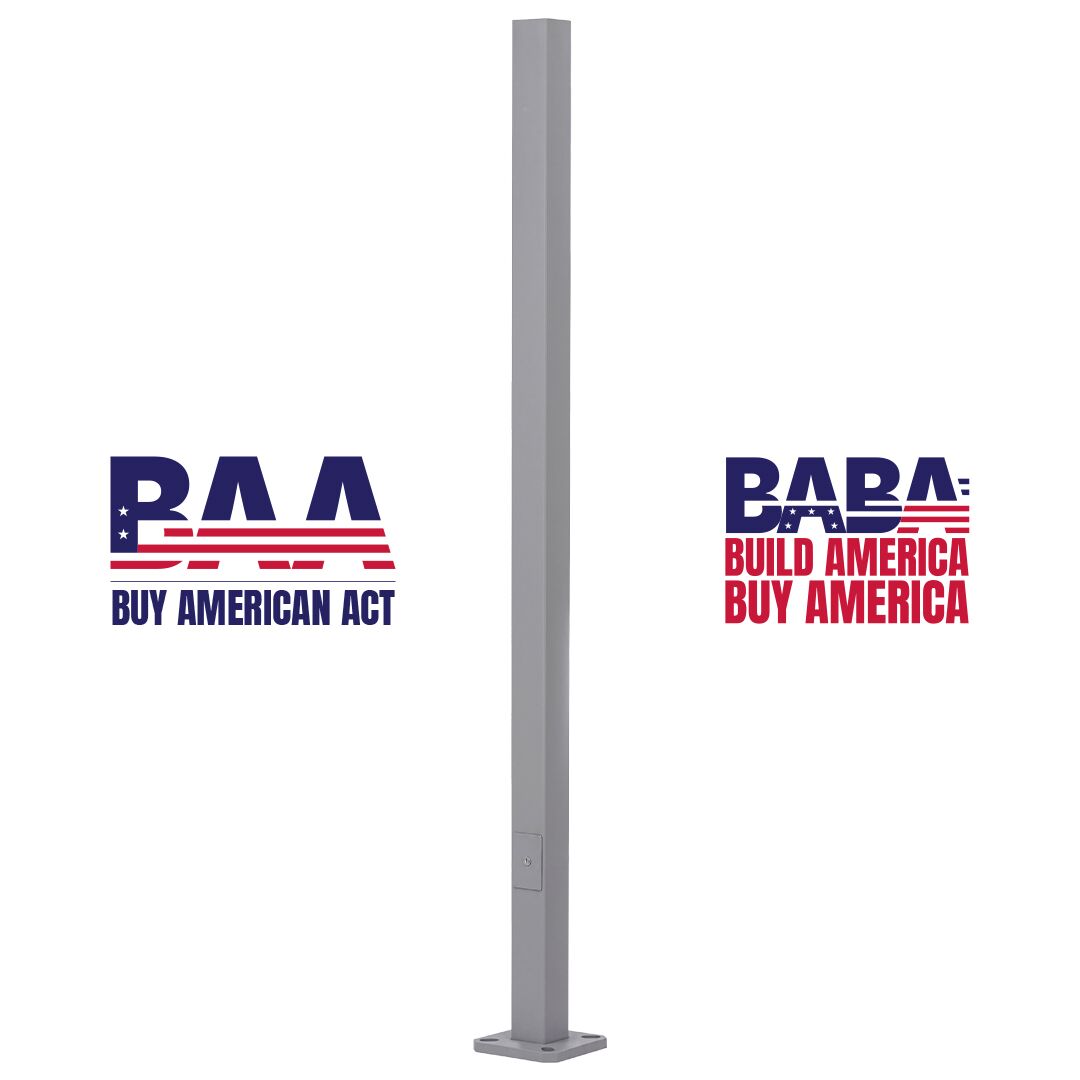

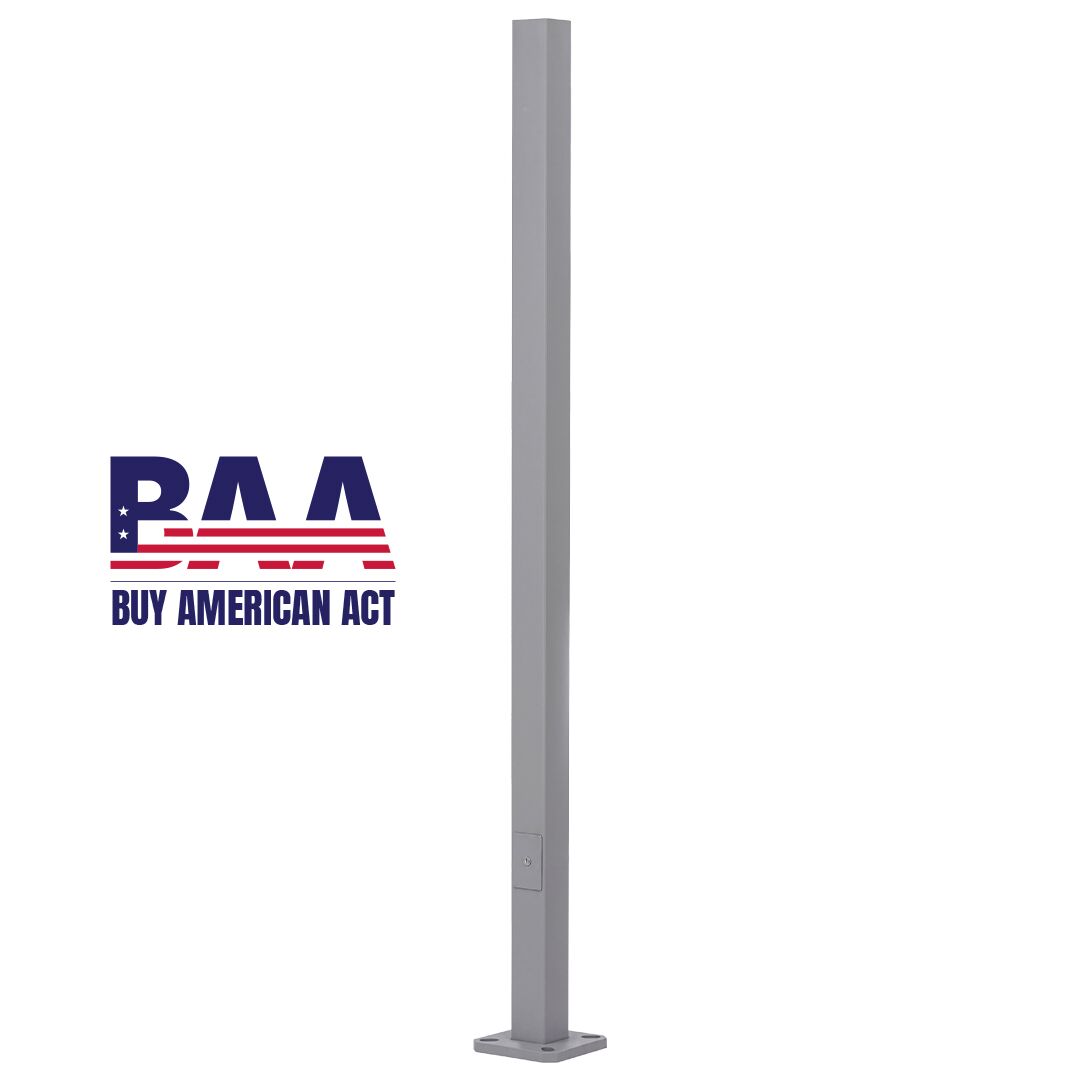

Square Non-Tapered Steel Light Pole (SNTS)
The SNTS Series Square Non-Tapered Steel Light Pole is built for commercial, roadway, parking lot, and area lighting applications requiring strength and long-term durability. Manufactured from ASTM-A-501 structural steel with a 46,000 PSI yield strength, it offers reliable outdoor performance and corrosion resistance. Available in multiple sizes to meet project-specific height and wind load requirements:
- 4″ Diameter: Heights from 10′ to 25′
- 5″ Diameter: Heights from 18′ to 25′
- 6″ Diameter: Heights from 20′ to 25′
The pole features 11 GA or 7 GA wall thickness options, reinforced wiring access, a welded base plate, galvanized anchor bolts, and a TGIC powder coat finish for weather protection. Fully BAA- and BABA-compliant, it is ideal for commercial and infrastructure projects.
Ideal Locations:
Commercial Parking Lots, Streetscapes, Retail Centers, Industrial Facilities, Municipal Projects, Walkways & Pathways, Business Parks, Sports Facilities, and Large Area Lighting Applications.
Variations
| Series Model | Pole Diameter | Height Range | Wall Thickness (In/Ga) | Anchor Bolt Size | Bolt Circle Diameter | Base Plate Size |
| HL-SNTS4 | 4" | 10' – 25' | 11 GA / 7 GA | 3/4" × 18"–30" | 9" – 11" | ¾" x 10" x 10" |
| HL-SNTS5 | 5" | 18' – 25' | 11 GA / 7 GA | 1" × 36" | 12" | 1" x 11½" x 11½" |
| HL-SNTS6 | 6" | 20' – 25' | 7 GA | 1" × 36" | 12" | 1" x 13½" x 13½" |
Features & Specifications
- BAA & BABA compliant
- Pole Top Mounting Standard PT27 (2-7/8″ × 3″) Optional PT23 ( 2-3/8″ × 3″)
- Side Drill Mounting Removable Pole Cap
- Handhole Cover with Locking Bar
- Base Plate Slotted holes
- (4) Galvanized Anchor Bolts with Nuts & Washers set
- 2-Piece Metal Base Cover Assembly
- Touch-Up Paint Included for Installation Maintenance
