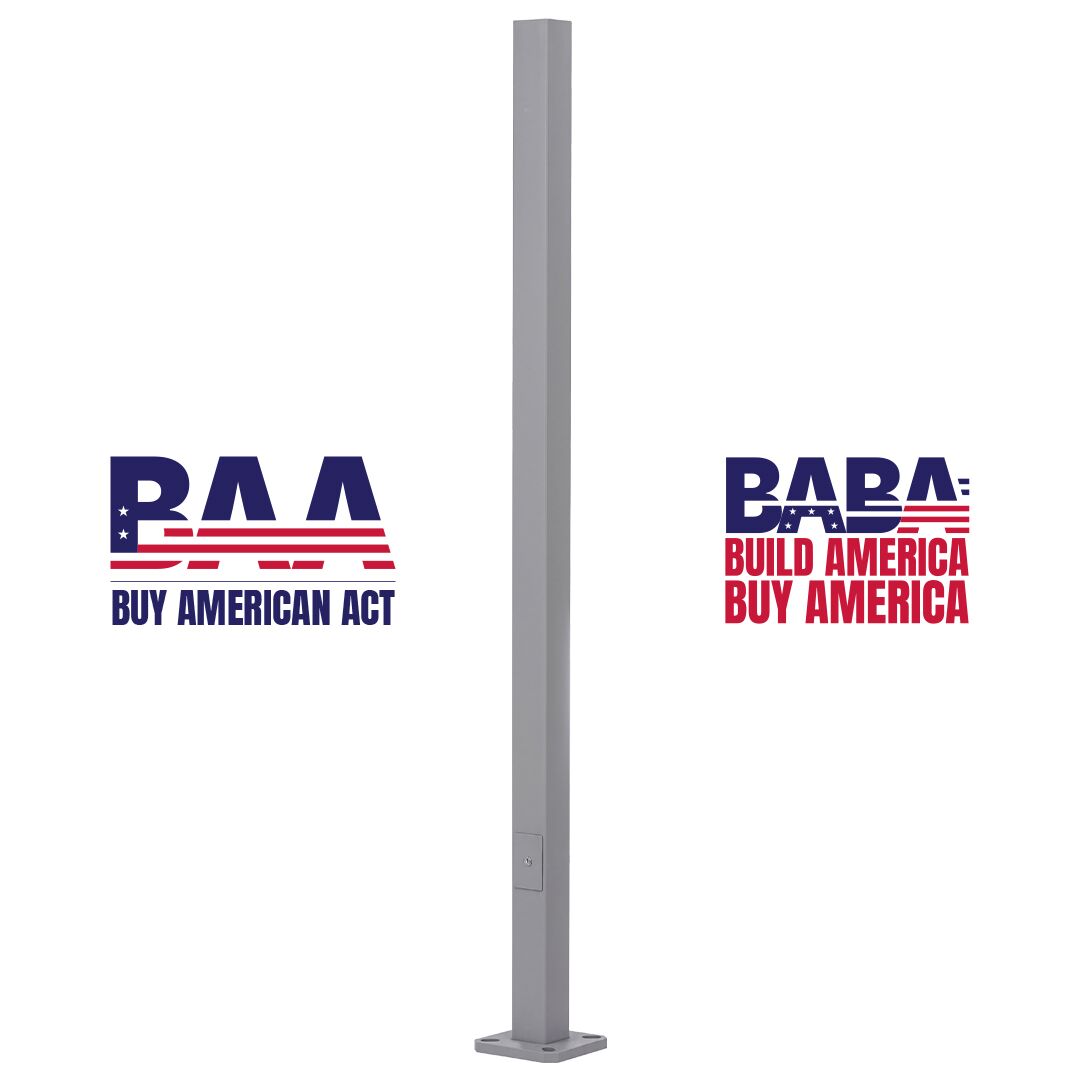

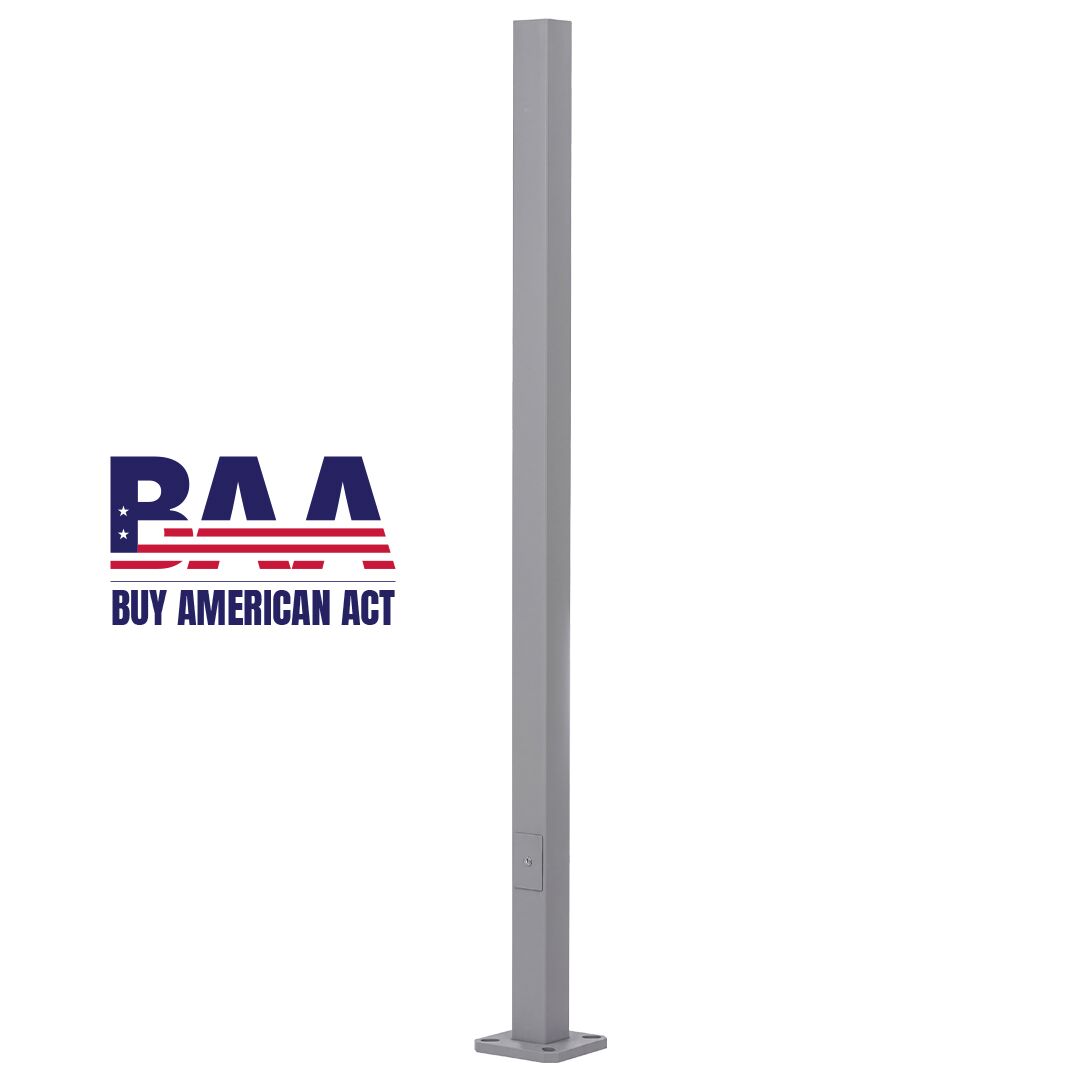

Square Non-Tapered Aluminum Light Pole (SNTA)

Square Non-Tapered Aluminum Light Pole (SNTA)

Features & Benefits
  • BAA & BABA compliant
  • Pole Top Mounting Standard PT23 ( 2-3/8″ × 3″), Optional PT27 (2-7/8″ × 3″)
  • Side Drill Mounting, Removable Pole Cap
  • Handhole Cover with Locking Bar
  • Base Plate Slotted Holes
  • (4) Galvanized Anchor Bolts with Nuts & Washers Set
  • 2-Piece Metal Base Cover Assembly
  • Touch-Up Paint Included for Installation and Maintenance
Spec Sheet
Get a Quote Get In Touch

Performance Data

SERIES MODEL POLE DIAMETER HEIGHT RANGE WALL THICKNESS (In/Ga) ANCHOR BOLT SIZE BOLT CIRCLE DIAMETER BASE PLATE SIZE
HL-SNTA4 4" 8' – 20' 0.125" – 0.188" ¾" × 18" × 3" 10" ¾" x 10" x 10"
HL-SNTA5 5" 12' – 25' 0.125" – 0.188" ¾" × 18" × 3" 12" 1" x 11" x 11"
HL-SNTA6 6" 20' – 25' 0.188" – 0.250" 1" × 36" × 4" 13" 1" x 11½" x 11½"
Product Summary

BAA Compliant Standard Offering, BABA Manufacturing Available by Project Request.

The SNTS Series Square Non-Tapered Steel Light Pole is built for commercial, roadway, parking lot, and area lighting applications requiring strength and long-term durability. Manufactured from ASTM-A-501-68 structural steel with a 46,000 PSI yield strength, it offers reliable outdoor performance and corrosion resistance. Available in multiple sizes to meet project-specific height and wind load requirements:

  • 4″ Diameter: Heights from 10′ to 25′
  • 5″ Diameter: Heights from 18′ to 25′
  • 6″ Diameter: Heights from 20′ to 25′

The pole features 11 GA or 7 GA wall thickness options, reinforced wiring access, a welded base plate, galvanized anchor bolts, and a TGIC powder coat finish for weather protection. Fully BAA- and BABA-compliant, it is ideal for commercial and infrastructure projects.

Ideal Locations:

Commercial Parking Lots, Streetscapes, Retail Centers, Industrial Facilities, Municipal Projects, Walkways & Pathways, Business Parks, Sports Facilities, and Large Area Lighting Applications.

FAQ

Frequently Asked Questions (FAQ's)

What material is used in these poles?
These poles are made from high-strength 6063-T6 aluminum alloy with a reinforced A-356 cast base, making them corrosion-resistant, durable, and suitable for long-term outdoor use.
What type of lighting fixtures can be installed on these poles?
The poles support multiple mounting options, including 2-3/8” and 2-7/8” tenon mounts, and can also be custom side-drilled to fit different lighting fixtures and signage systems.
Are these poles suitable for harsh weather conditions?
Yes, they are designed for all-weather performance. The TGIC polyester powder coating and corrosion-resistant aluminum construction ensure protection against rain, UV exposure, and environmental wear.
How is the load capacity of the pole determined?
Load capacity is calculated using EPA (Effective Projected Area) values of all installed fixtures and accessories. The final allowable load must not exceed the structural limit of 300 lbs.
Do these poles require special installation guidelines?
Yes, proper installation is essential. Bolt size, bolt circle, slope conditions, and total EPA load must be followed as per specifications. For complex installations or structures like bridges or buildings, a structural engineer should be consulted.
