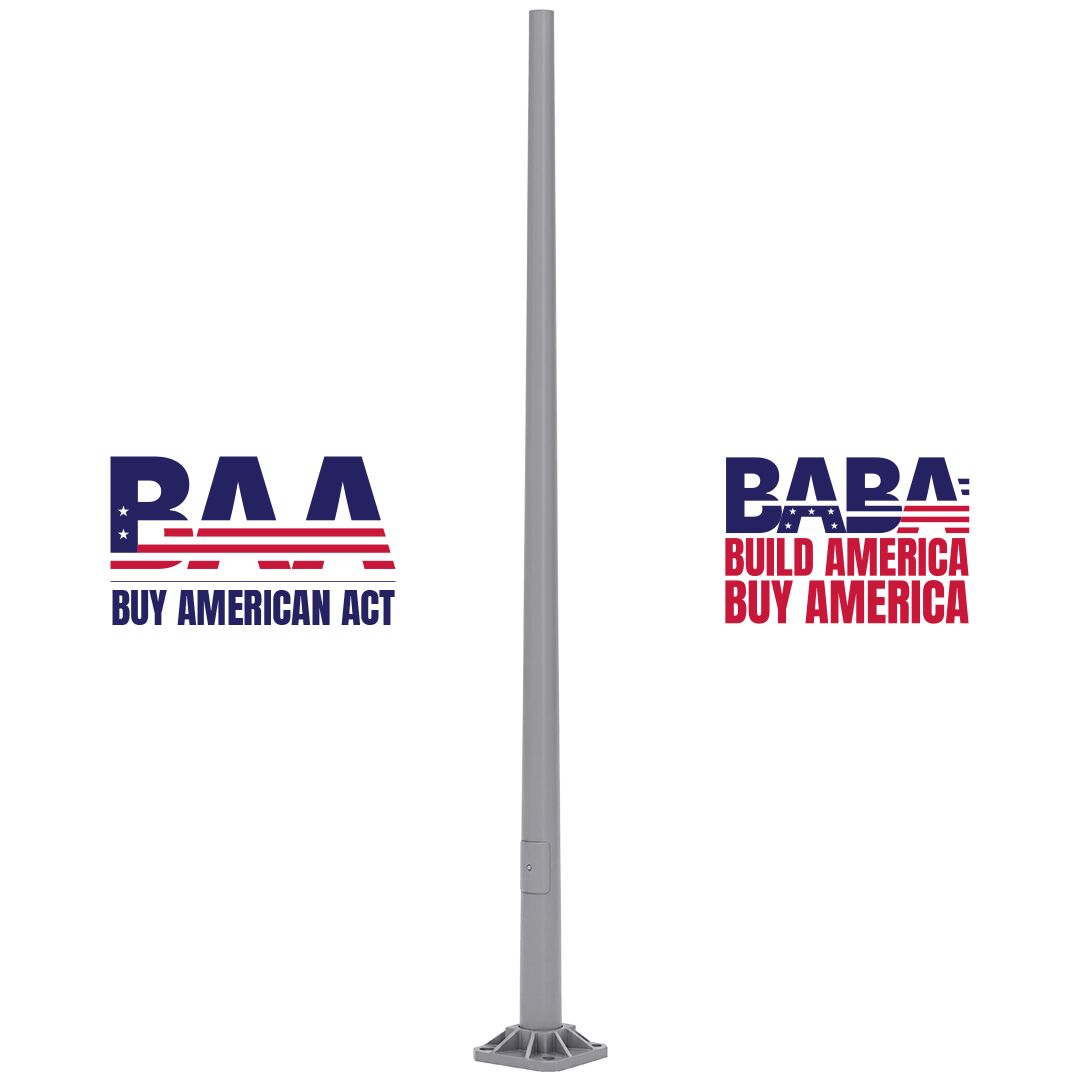

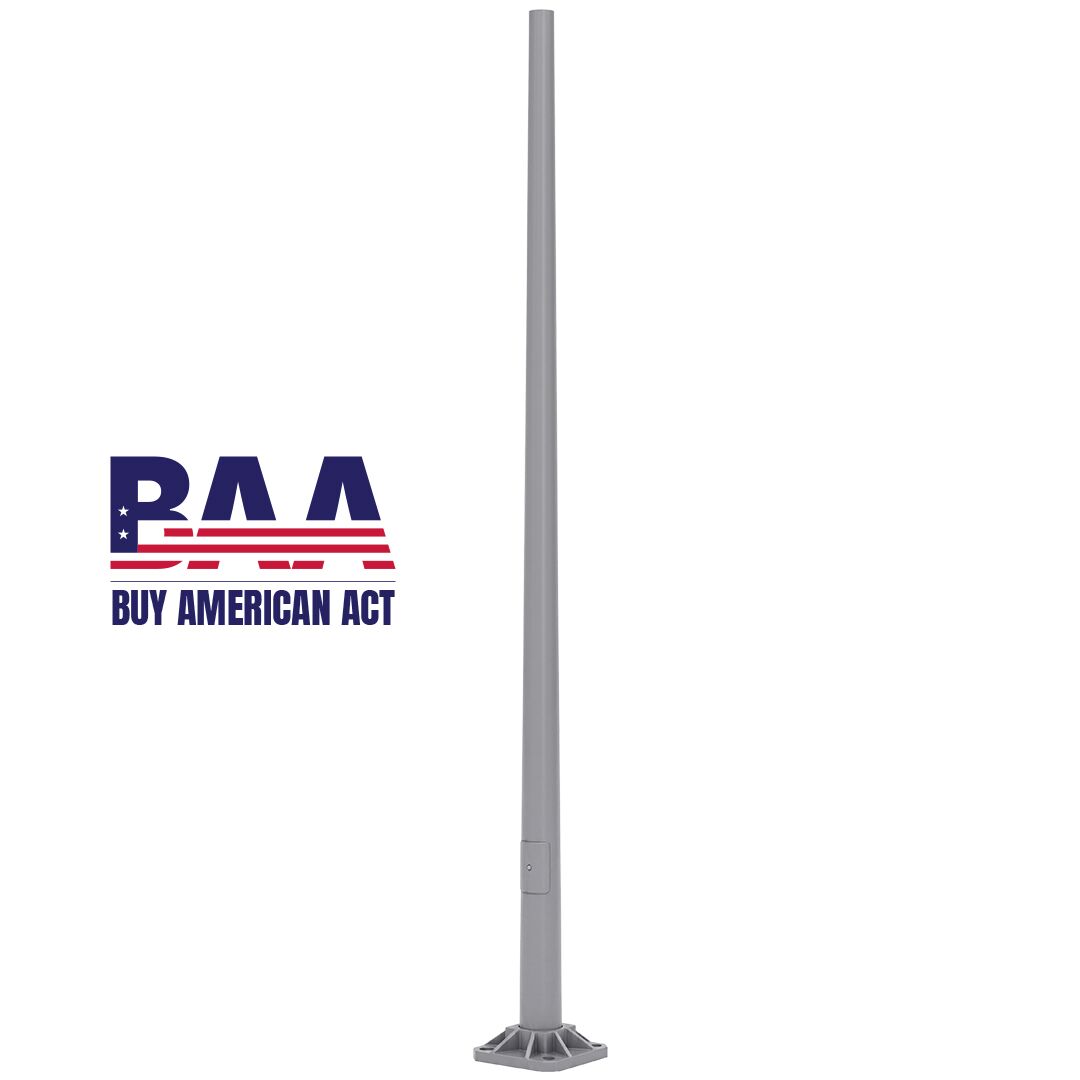

Round Tapered Aluminum Lighting Pole (RTA)
The Round Tapered Aluminum Lighting Pole is an ideal solution for outdoor lighting applications. Manufactured from high-strength 6063-T6 spun aluminum, this pole offers excellent rust resistance and easier installation. Engineered with a reinforced cast aluminum base and a heavy duty anchorage system to secure ground mounting and dependable stability under varying wind conditions.
Available in multiple wall thicknesses and mounting configurations to meet project-specific structural and lighting requirements.
- 4″ Bottom Diameter: Heights from 14′ to 16′
- 5″ Bottom Diameter: Heights at 18′
- 6″ Bottom Diameter: Heights at 20′
- 7″ Bottom Diameter: Heights at 25′
Each pole is finished with a premium TGIC polyester powder coating process, the pole provides enhanced weather protection, long-lasting surface and durability for harsh exterior conditions.
Ideal Locations:
Commercial Parking Lots, Streetscapes, Municipal Projects, Roadway Lighting, Parks & Recreational Areas, Walkways & Pathways, Retail Centers, Business Parks, Campus Lighting, Industrial Facilities, Public Spaces, Security Lighting Areas, Residential Developments, Architectural Lighting Projects, and Large Outdoor Illumination Applications.
Variations
| Series Model | Pole Height | Bottom Diameter | Top Diameter | Wall Thickness | Weight | Anchor Bolt Size | Recommended Bolt Circle | Base Plate Size |
| HL-RTA 14 | 14 ft | 4" | 3" | 0.125" | 31 lbs | ¾" x 18" x 3" | 10" | ¾" x 10" x 10" |
| HL-RTA 16 | 16 ft | 4" | 3" | 0.125" | 34 lbs | ¾" x 18" x 3" | 10" | ¾" x 10" x 10" |
| HL-RTA 18 | 18 ft | 5" | 3" | 0.188" | 56 lbs | 1" x 36" x 4" | 12" | 1" x 11" x 11" |
| HL-RTA 20 | 20 ft | 6" | 4" | 0.188" | 81 lbs | 1" x 36" x 4" | 13" | 1" x 12" x 12" |
| HL-RTA 25 | 25 ft | 7" | 4" | 0.188" | 106 lbs | 1" x 36" x 4" | 13" | 1" x 13" x 13" |
Features & Specifications
- BAA & BABA Compliant
- Standard Pole Top Mounting – PT27 (2-7/8″ × 3″)
- Optional PT23 (2-3/8″ × 3″) Tenon Configuration
- Side Drill Mounting with Removable Pole Cap
- 18″ Hand Hole with Tamper-Resistant Locking Cover
- Reinforced Cast Aluminum Base Plate with Structural Gussets
- (4) Fully Galvanized Anchor Bolts with Nuts & Washers Set
- 2-Piece Heavy-Duty Aluminum Base Cover Assembly
- Internal Ground Lug for Electrical Grounding
- Welded Base-to-Shaft Construction for Added Stability
Optional Accessories
- Duplex GFI with Cover
- Duplex GFI with In-Use Cover
- T3120 3-Way Adapter
- T490 4-Way Adapter
- Coupling Options (½”, ¾”, 1¼”, 1½”, 2″)
- Nipple Options (½”, ¾”, 1¼”, 1½”, 2″)
- PT276 Extended Tenon Configuration
- Custom Side Drill Mounting Templates
- Vibration Dampener for Tall Pole Installations
- Galvanized Finish Option
- Custom RAL Color Finish Options
