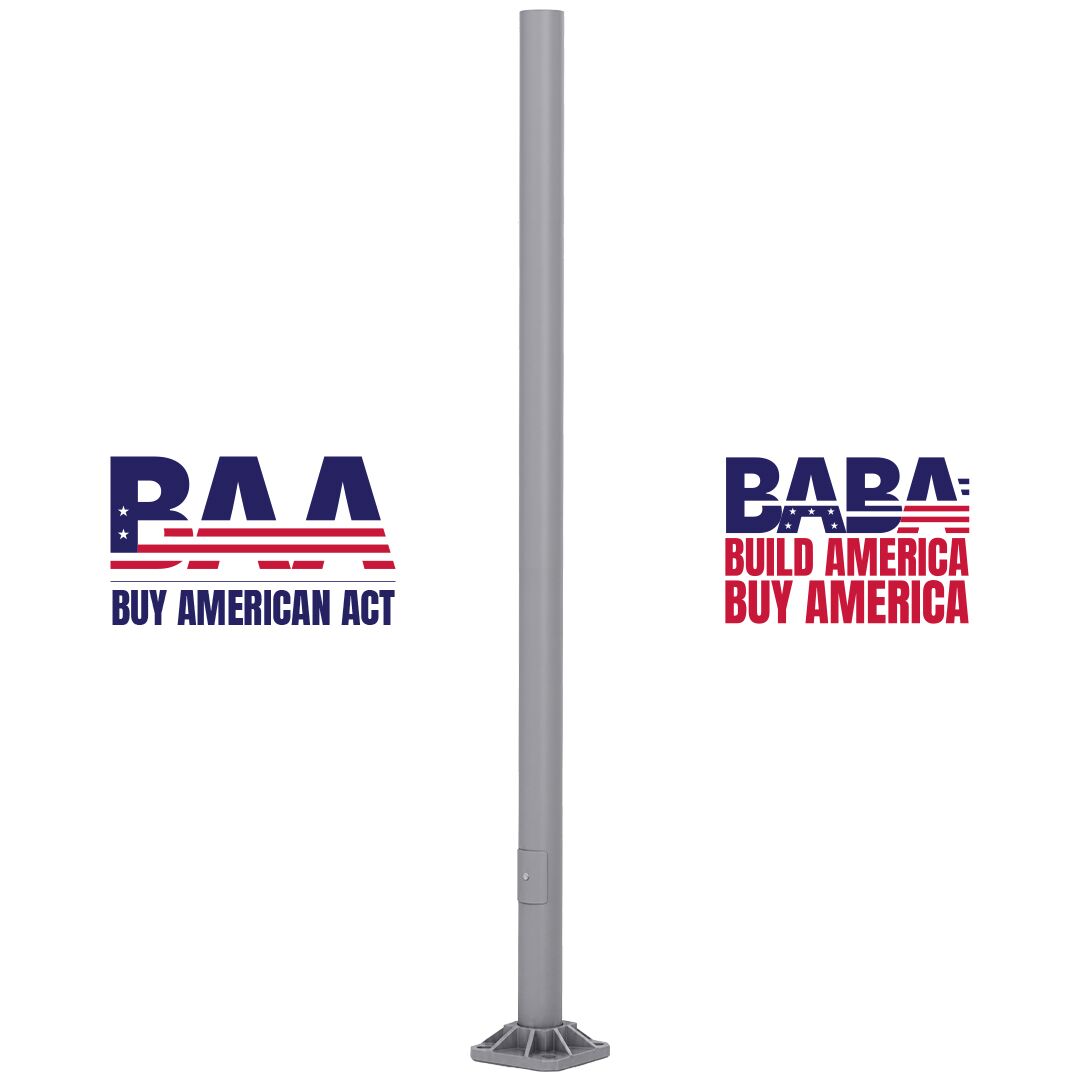

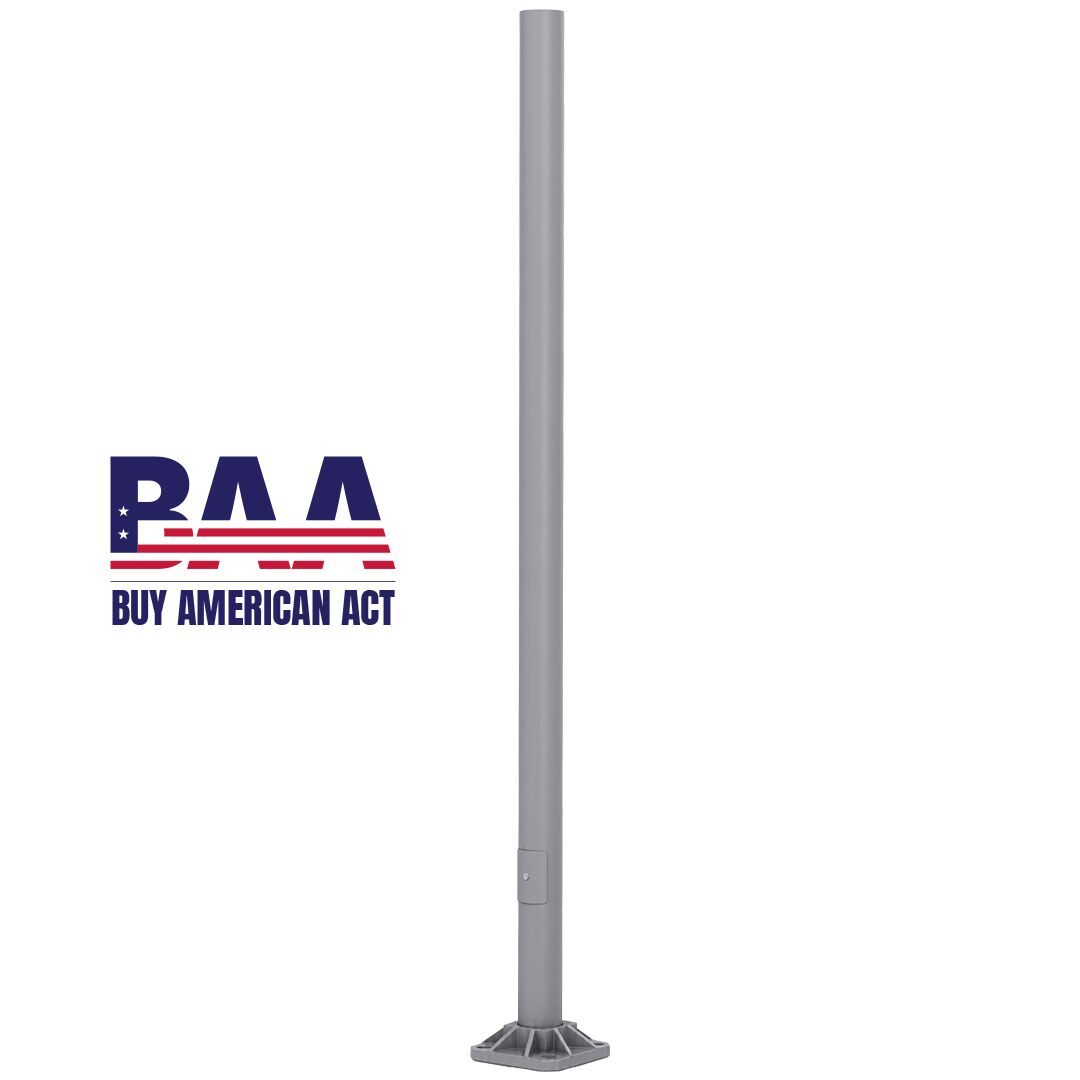

Round Non-Tapered Aluminum Lighting Pole (RNTA)
The RNTA Series Round Non-Tapered Aluminum Lighting Pole is designed to provide lasting strength, clean design and reliable outdoor performance for a wide range of lighting applications. Crafted from durable 6063-T6 aluminum, it offers strong corrosion resistance and dependable structure support easy installation.
- 4″ Diameter: Heights from 8′ to 14′
- 5″ Diameter: Heights from 10′ to 20′
- 6″ Diameter: Heights from 20′ to 25′
- 6 5/8″ Diameter: Heights from 20′ to 25′
Each pole is designed to perform in demanding outdoor environments. Its clean, round profile provides a timeless architectural look while supporting multiple mounting configurations for compatibility with various lighting fixtures and brackets.
Ideal Locations:
Commercial Parking Lots, Streetscapes, Retail Centers, Industrial Facilities, Municipal Projects, Walkways & Pathways, Business Parks, Sports Facilities, Roadways, Public Areas, Security Lighting Zones, Parks, Campus Lighting, and Large Area Outdoor Applications.
Variations
| Series Model | Pole Diameter | Height Range | Wall Thickness (In/Ga) | Approx. Weight | Bolt Circle Diameter | Base Plate Size | Anchor Bolt Size |
| HL-RNTA4 | 4" | 8' – 14' | .125"(11Ga) | 23 – 34 lbs | 10" | ¾" x 10" x 10" | ¾" × 18" × 3" |
| HL-RNTA5 | 5" | 10' – 20' | .125" / .188" (11Ga/ 7Ga) | 32 – 76 lbs | 12" | 1" x 11" x 11" | ¾" × 24" × 3" |
| HL-RNTA6 | 6" | 20' – 25' | .188" / .250" (7 Ga/ 3Ga) | 95 – 147 lbs | 13" | 1" x 11½" x 11½" | 1" × 36" × 4" |
| HL-RNTA658 | 6.63" | 20' – 25' | .250" (3Ga) | 135 – 165 lbs | 13" | 1" x 11½" x 11½" | 1" × 36" × 4" |
Features & Specifications
- BAA & BABA Compliant
- Pole Top Mounting – Standard PT27 (2-7/8″ × 3″)
- Side Drill Mounting with Removable Pole Cap
- 18″ Hand Hole with Locking Cover
- Reinforced Cast Aluminum Base Plate
- (4) Galvanized Anchor Bolts with Nuts & Washers Set
- 2-Piece Aluminum Base Cover Assembly
- Internal Ground Lug for Electrical Grounding
- Tamper-Resistant Hand Hole Cover with Stainless Steel Fastener
- Heavy-Duty Reinforcing Gussets for Structural Stability
Optional Accessories
- Duplex GFI with Cover
- Duplex GFI with In-Use Cover
- T3120 3-Way Adapter
- T490 4-Way Adapter
- Coupling Options (½”, ¾”, 1¼”, 1½”, 2″)
- Nipple Options (½”, ¾”, 1¼”, 1½”, 2″)
- PT276 Extended Tenon Configuration
- Pole Top MOunting l PT23 (2-3/8″ × 3″)
- Custom Side Drill Mounting Templates
- Vibration Dampener for Tall Pole Applications
- Custom RAL Color Finish Options
