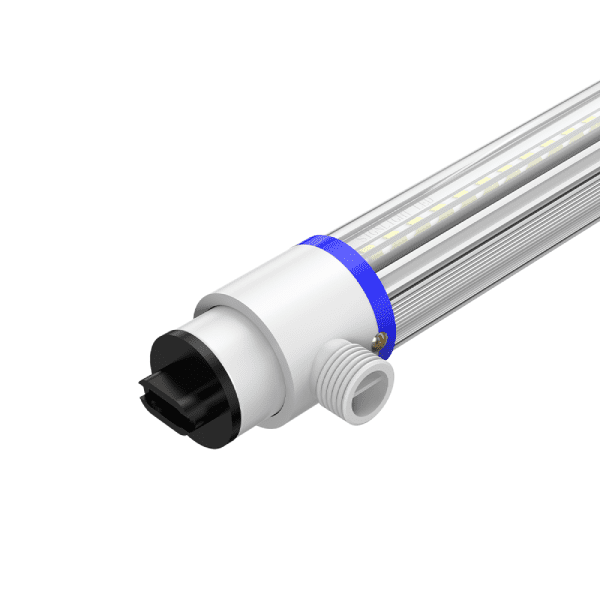

Rapid Lamp Generation 3 – Revolutionary LED Tubes with Special Lens Designed for Slim Cabinets
Experience the revolutionary, patented Gen 3 design, specially equipped with a lens for slim and narrow cabinets. Our Gen3 Sign Lamps boast UL certification, SAM listing, and suitability for damp locations. These non-sagging LED lamps deliver exceptional lumens output, transforming any slim sign into a brilliantly lit masterpiece.
Our retrofit system is meticulously engineered for superior heat dissipation, vibrant lighting, extended durability, and substantial cost savings over your sign’s lifetime. Installation is swift, straightforward, and nearly foolproof, making it a hassle-free experience. We like to think of it as so simple that even an 8-year-old can do it – taking away the installation headache.

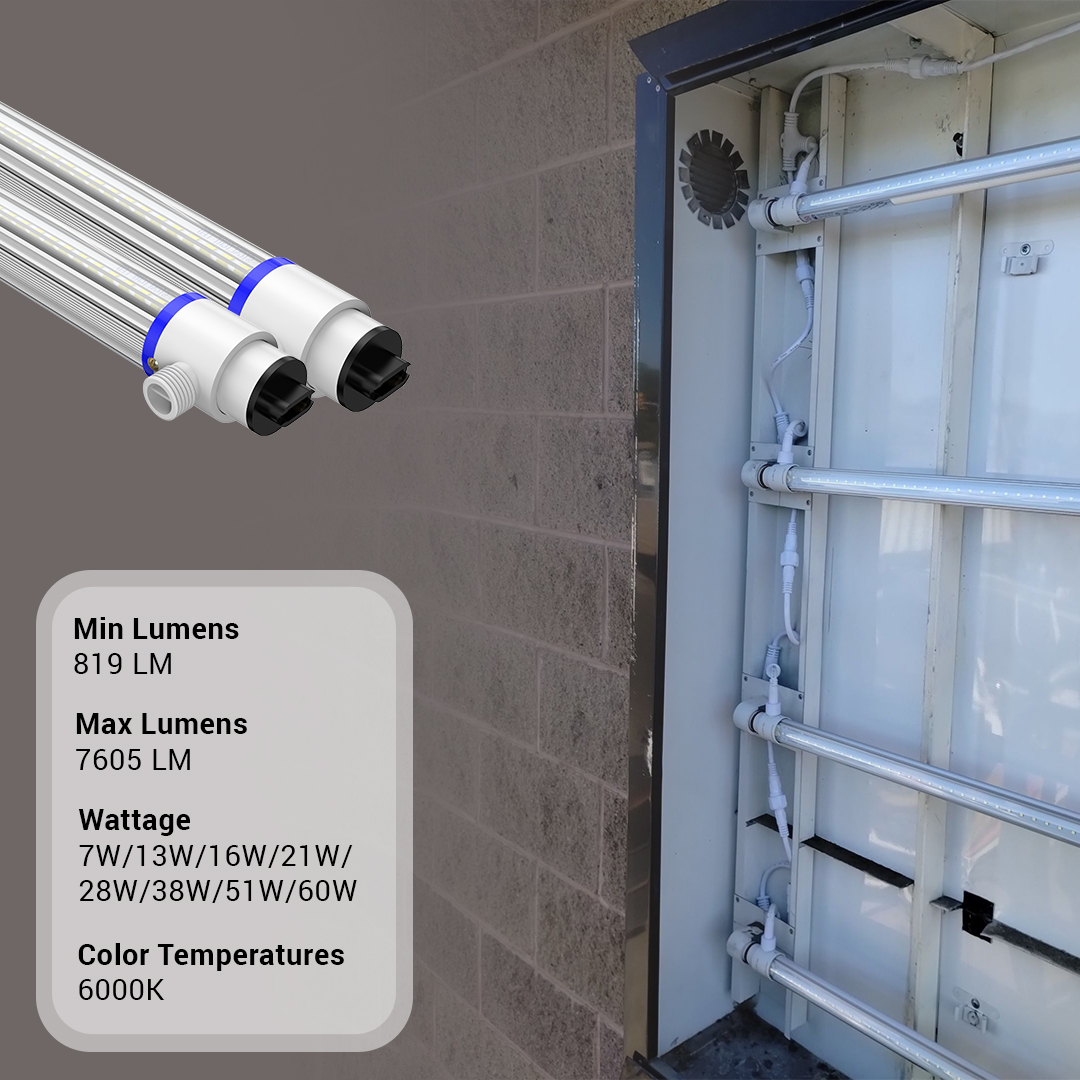

Gen 3 Sign Lamps are unrivaled worldwide, offering a unique installation process: cut the power, remove the old bulbs, cut the power leads to the existing ballast, and remove the ballast entirely. Insert the new Gen3 tube lights from Havells Lighting, connect them using the user-friendly power cable, and wire the lead cable to T’s with black and white wires. Your installation is complete in no time.
Available Sizes:
F18, F24, F30, F36, F42, F48, F60, F64, F72, F84, F96, F108, F117, F120
Variations
| Model Name | Tube Size | Input Voltage | WATTAGE | Lumens | Cover | |
| 2SL07T10XX0450 | F18 | AC100-277V | 7W | 910lm | Clear | - |
| 2SL13T10XX0600 | F24 | AC100-277V | 13W | 1560lm | Clear | - |
| 2SL13T10XX0750 | F30 | AC100-277V | 13W | 1690lm | Clear | - |
| 2SL16T10XX0900 | F36 | AC100-277V | 16W | 2080lm | Clear | - |
| 2SL21T10XX1050 | F42 | AC100-277V | 21W | 2700lm | Clear | - |
| 2SL21T10XX1200 | F48 | AC100-277V | 21W | 2730lm | Clear | - |
| 2SL28T10XX1500 | F60 | AC100-277V | 28W | 3640lm | Clear | - |
| 2SL28T10XX1600 | F64 | AC100-277V | 38W | 3640lm | Clear | - |
| 2SL38T10XX1800 | F72 | AC100-277V | 38W | 4750lm | Clear | - |
| 2SL38T10XX2100 | F84 | AC100-277V | 38W | 4750lm | Clear | - |
| 2SL51T10XX2475 | F96 | AC100-277V | 51W | 6630lm | Clear | - |
| 2SL51T10XX2700 | F108 | AC100-277V | 51W | 6630lm | Clear | - |
| 2SL60T10XX2925 | F117 | AC100-277V | 60W | 8450lm | Clear | - |
| 2SL60T10XX3000 | F120 | AC100-277V | 60W | 8450lm | Clear | - |
Features & Specifications
- Innovative LED Technology in Sign Retrofitting
- Patented Technology
- Designed to retrofit any Sign(any size) in less than 30 minutes
- Retrofit kit-Super bright, efficient LED light, light output over 700lm/ft
- Lower energy consumption and Maintenance free.
- Internal Power Supply-No need for any External LED driver or ballast.
- Heat Dissipation-Super heat dissipation structure, lower luminous decay, longer lifespan
- Two sides illumination-Circular Tube with two sided LEDs, creates a wider illumination and it’s an ideal solution for Pylon & Monument Signs
- Multiple Size available for any of the application.
