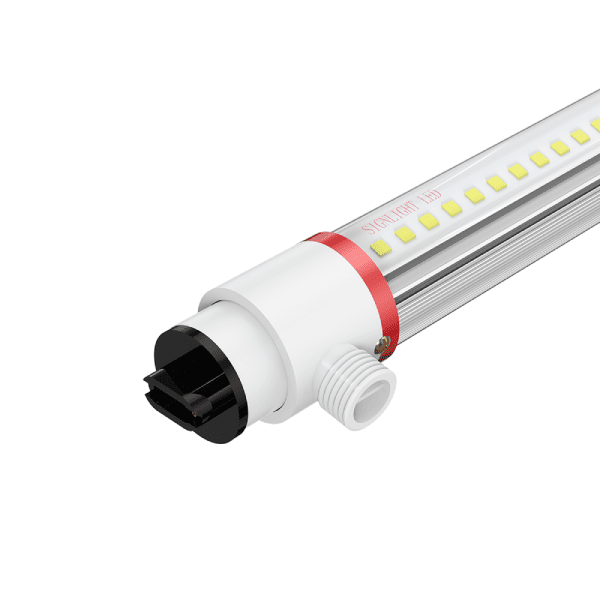

Rapid Lamp Generation 2 – Double-Sided LED Sign Tube Retrofit Kit
- Patented Design, Double-Sided, No Hot Spots, and No Sagging
- Daisy-Chain Connect up to 20 tubes
- Driver Inside Retrofit Design and Ballast Bypass
- 50,000 Hours Rated Life
- Lower energy consumption and Maintenance free.
- Internal Power Supply-No need for any External LED driver or ballast.
- Heat Dissipation-Super heat dissipation structure, lower luminous decay, longer lifespan
- Two sides illumination-Circular Tube with two sided LEDs, creates a wider illumination and it’s an ideal solution for Pylon & Monument Signs
- Multiple Size available for any of the application.
Performance Data
| MODEL NAME | TUBE SIZE | INPUT VOLTAGE | WATTAGE | LUMENS | COVER | CLEARANCE NEEDED TO USE RAPID BRACKET |
| 2SL07T10XX0450 | F18 | AC100-277V | 7W | 910lm | Clear | 16 1/4" |
| 2SL13T10XX0600 | F24 | AC100-277V | 13W | 1560lm | Clear | 22 1/4" |
| 2SL13T10XX0750 | F30 | AC100-277V | 13W | 1690lm | Clear | 28 1/4" |
| 2SL16T10XX0900 | F36 | AC100-277V | 16W | 2080lm | Clear | 34 1/4" |
| 2SL21T10XX1050 | F42 | AC100-277V | 21W | 2700lm | Clear | 40 1/4" |
| 2SL21T10XX1200 | F48 | AC100-277V | 21W | 2730lm | Clear | 46 1/4" |
| 2SL28T10XX1500 | F60 | AC100-277V | 28W | 3640lm | Clear | 58 1/4" |
| 2SL28T10XX1600 | F64 | AC100-277V | 38W | 3640lm | Clear | 62 1/4" |
| 2SL38T10XX1800 | F72 | AC100-277V | 38W | 4750lm | Clear | 70 1/4" |
| 2SL38T10XX2100 | F84 | AC100-277V | 38W | 4750lm | Clear | 82 1/4" |
| 2SL51T10XX2475 | F96 | AC100-277V | 51W | 6630lm | Clear | 94 1/4" |
| 2SL51T10XX2700 | F108 | AC100-277V | 51W | 6630lm | Clear | 106 1/8" |
| 2SL60T10XX2925 | F117 | AC100-277V | 60W | 8450lm | Clear | 115 1/8" |
| 2SL60T10XX3000 | F120 | AC100-277V | 60W | 8450lm | Clear | 118 1/8" |
Rapid Lamp Gen 2 is a patented LED retrofit solution designed to upgrade illuminated signs quickly and efficiently, regardless of sign size. Its two-sided LED design delivers broad, bright illumination for more uniform sign faces, while a super heat-dissipation structure helps reduce luminous decay and support long-lasting performance. An integrated power supply eliminates the need for an external LED driver or ballast, making Gen 2 a simpler retrofit solution designed to be completed in less than 30 minutes. Gen 2 gives contractors a practical solution for upgrading existing sign lighting.
Available Sizes:
F18, F24, F30, F36, F42, F48, F60, F64, F72, F84, F96, F108, F117, F120
Frequently Asked Questions (FAQ's)
What is Rapid Lamp Gen 2 LED sign tube?
A double-sided LED retrofit Signage solution that replaces fluorescent lamps.
What lumen output does Rapid Lamp Gen 2 provide?
It delivers over 700 lumens per foot for bright sign illumination.
What color temperature do Gen 2 tubes use?
Standard kits use a crisp 6000K daylight-white color.
Are Gen 2 tubes UL or safety listed?
Yes, they are UL certified in specific use as sign component and SAM listing for safe commercial use.
Is Rapid Lamp Gen 2 suitable for outdoor signs?
Yes, it is suitable for indoor and outdoor sign applications. They are IP65 rated
Do RAPID LAMPS reduce installation time?
Yes, RAPID LAMPS significantly reduce installation time and labor effort, as RAPID LAMPS do not draw power from the ends and do not rely on existing wiring or ends. RAPID LAPMS removes all and any challenges for retrofitting for sign with a combination of RAPID BRACKET. RAPID BRACKETS only required where the ends are broken and not able to hold RAPID LAPMS in place,
