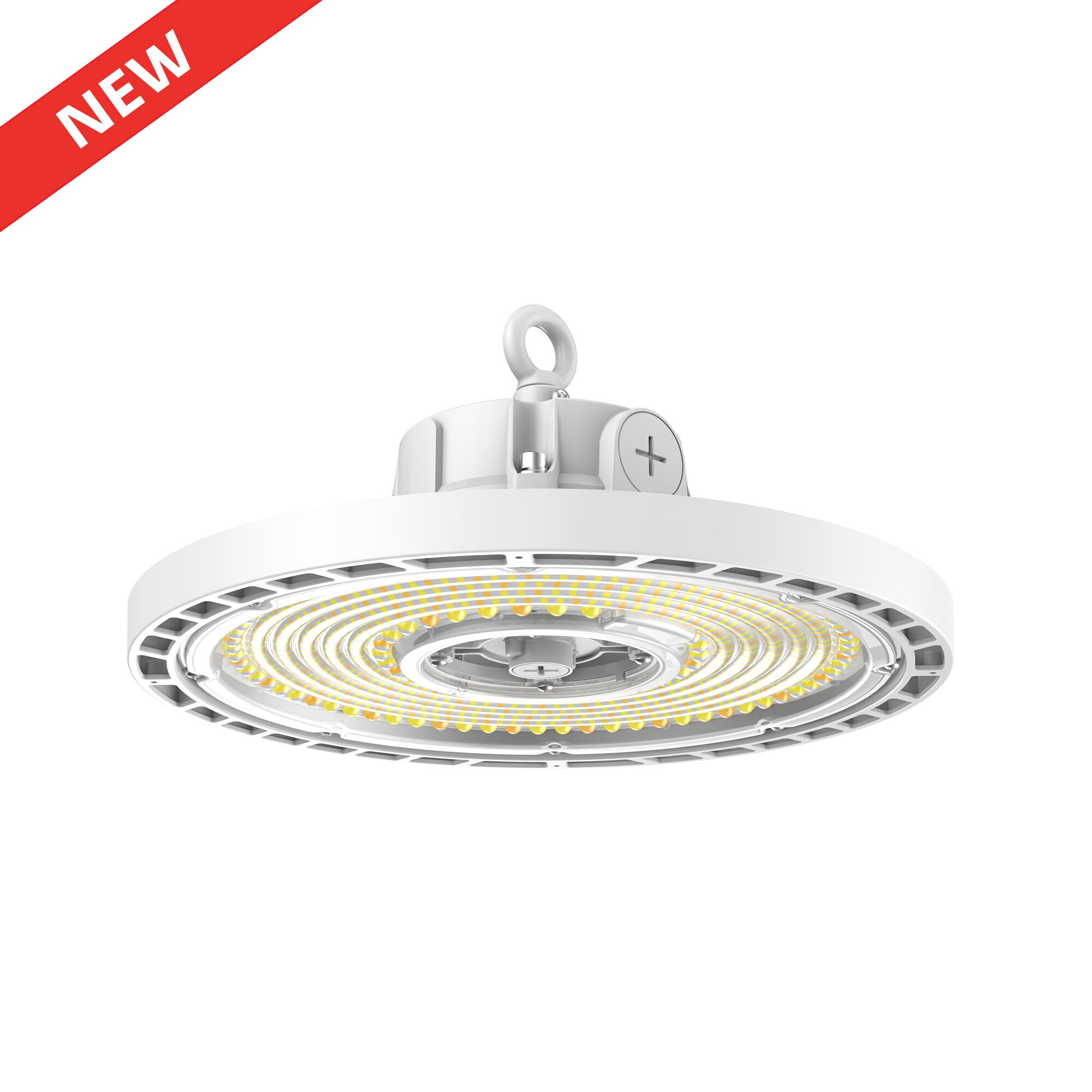

Flexi Round Highbay- 200W
Wattage: 200W/150W/120W
Max Lumens: 32,400lm
CCT: 5000K/4000K
Features & Benefits
- Fully selectable Wattage, CCT & Beam Angle
- 0-10V Dimming with Wide Operating Range
- Durable Construction with 50,000-hour rated life
- Up to 162 lm/W Efficacy
Performance Data
| 4000K (>80 CRI) | 5000K (>80 CRI) | ||||||
|---|---|---|---|---|---|---|---|
| Model Number | Selectable Wattages | Distribution | Lumens | Efficacy | Lumens | Efficacy | Input Voltage |
| HL-RHB-MW-MCCT-ML2-200W | 120W/150W/200W | 60° | 32,400lm | 162 lm/W | 31,400Im | 157 lm/W | 120-277 Vac |
| 90° | 31,600lm | 158 lm/W | 30,000Im | 155 lm/W | 120-277 Vac | ||
Product Summary
Available in Fully Selectable Wattage, CCT & Beam-120W/150W/200W.
The Havells Flexi Round Highbay is engineered to provide unmatched flexibility for industrial and commercial lighting applications. With fully selectable wattage, CCT, and beam angle, a single fixture can adapt to a wide range of mounting heights and lighting requirements while reducing inventory.
Applications:
Warehouse & Storage, Industrial Facilities, Sports Facilities & Gyms, Manufacturing Facilities, and Retail Centers.
Product Specification
Efficacy
162 lm/W
CCT (Selectable)
4000K / 5000K
CRI
>80
Beam Angle (Selectable)
60° / 90°
Input Voltage
120–277 Vac | 277-480 Vac
Power Factor (PF)
≥ 0.9
THD
≤20%
Dimming
0-10V Standard
Operating Temp.
-40℃ to +50℃
Warranty
5 Years
Finish
White or Custom
Mounting
Eye Bolt
Housing Material
Die-cast Aluminum
Lens Type
Polycarbonate
