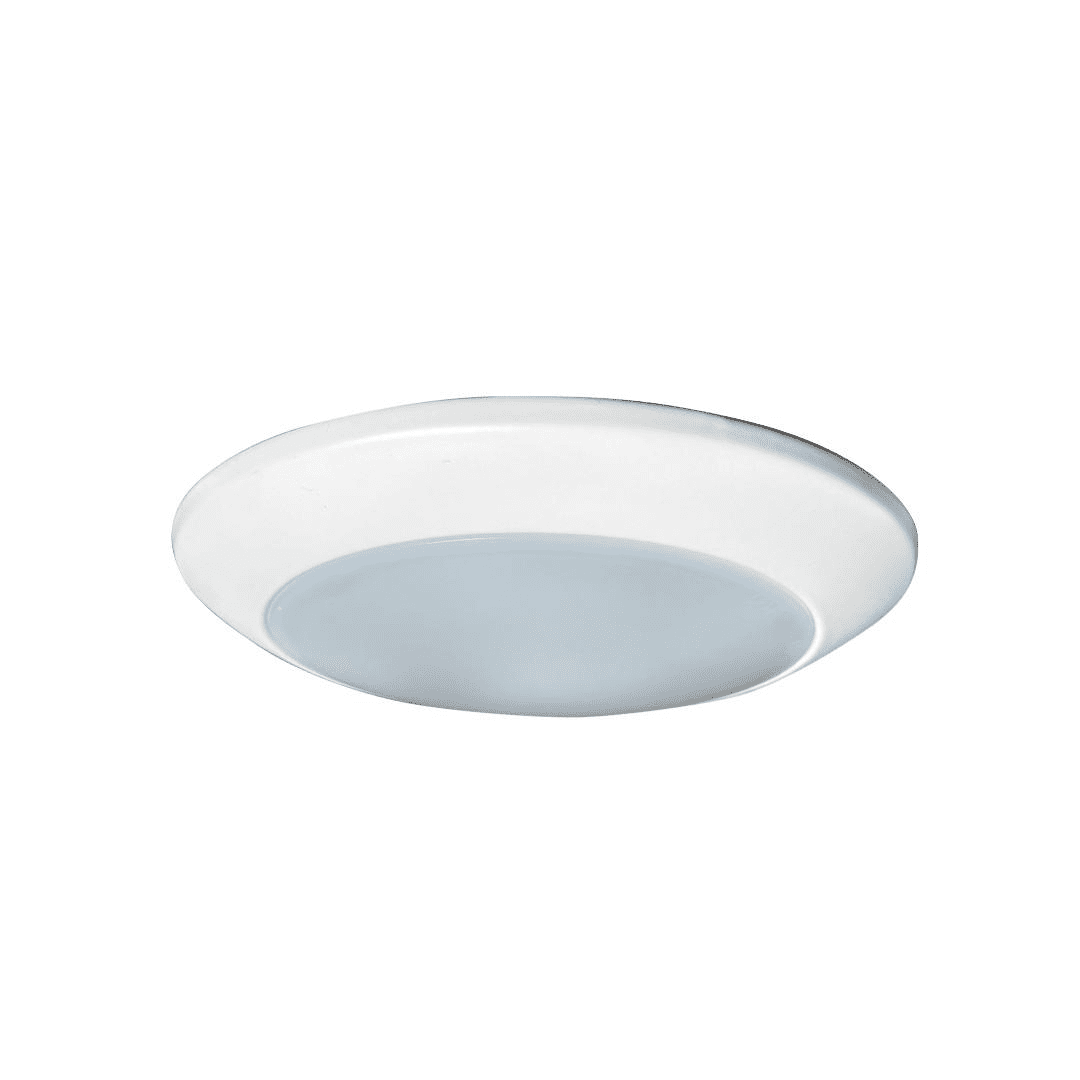

Disk Light – 4 inch
Wattage: 5W/7W/9W
Max Lumens: 738lm
CCT: 2700K/3000K/3500K/4000K/5000K
Features & Benefits
- Selectable Wattage & CCT and 120° Beam distribution
- Retrofit-Friendly Design and Surface & Flush Mounting
- Operating temperature: -20°C to +45°C
- 50,000-Hour Rated Life
Performance Data
| 2700K (90 CRI) | 3000K (90 CRI) | 3500K (90 CRI) | 4000K (90 CRI) | 5000K (90 CRI) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-DLS-MW-MCCT-9W-4 Inch | 5W/7W/9W | 0.083A | 630lm | 70 lm/W | 675lm | 75 lm/W | 738lm | 82 lm/W | 738lm | 82 lm/W | 675lm | 75 lm/W |
*Lumen and efficacy data are based on the CCT of each higher wattage SKU.
Product Summary
For lobbies, hall areas and residential spaces. Available in wattage 5W/7W/9W
The LED Disk Light offers a sleek, low-profile solution with modern LED performance. Designed to fit compatible downlight fixtures and existing housings, it provides flexible installation with surface or flush mounting options. Selectable wattage and CCT make it easy to customize the lighting for different applications, while TRIAC dimming provides convenient light-level control. With a wide beam distribution, high color rendering, and long-lasting performance for commercial environments.
Applications:
Homes, Lobbies, Common Area, Office, and Shopping Malls.
Product Specification
Efficacy 82 lm/W
CCT Options 2700/3000/3500/4000/5000K
CRI 90
Beam Angle 120°
Input Voltage 120 Vac
Power Factor (PF) >0.8
THD NA
Dimming Triac
Operating Temp. -20°C to +45°C
Warranty 5 Years
Finish White
Mounting Surface/Flush Mount
Housing Material Metal
Lens Type PC+PS
