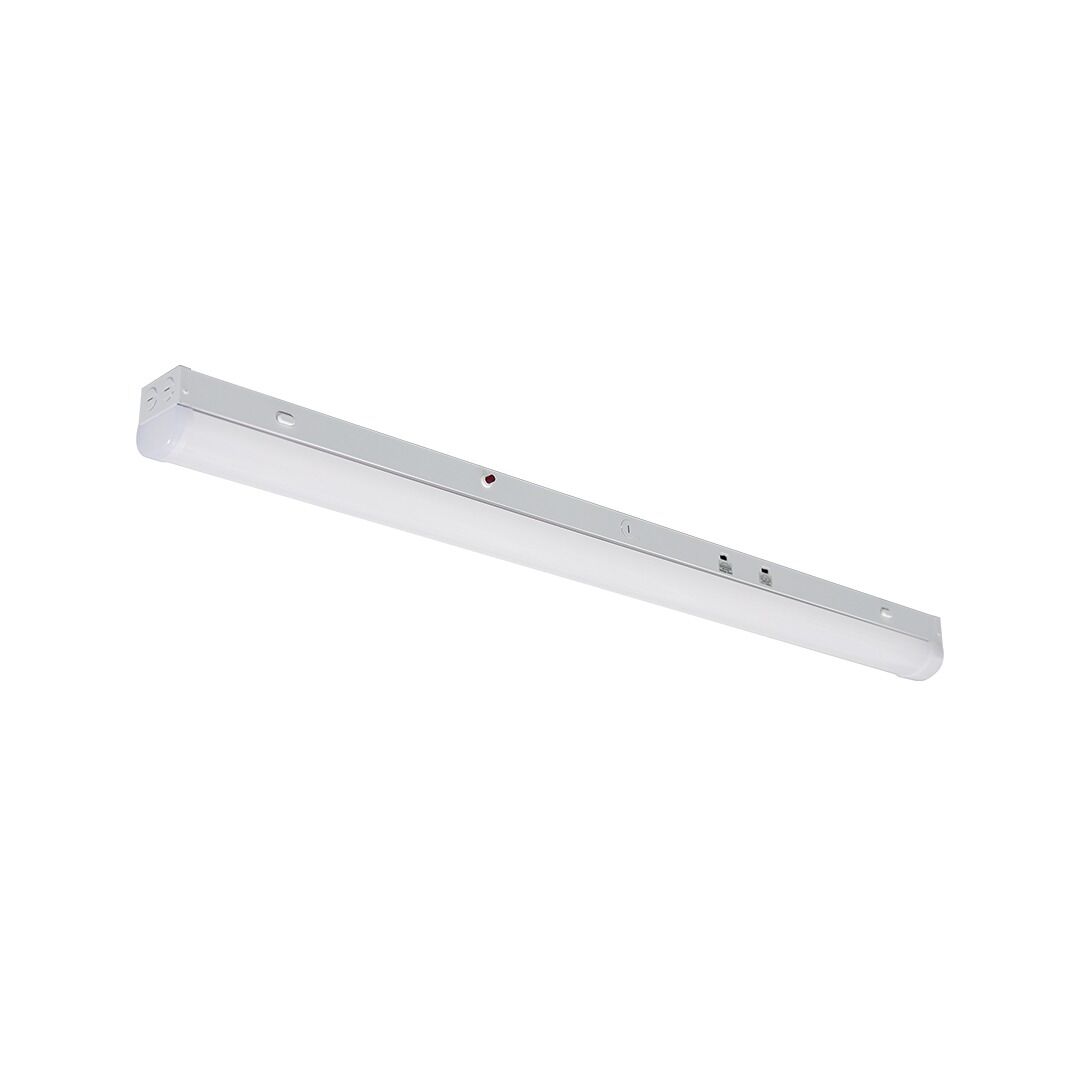

Consta Slim LED Strip Light 4 Feet
Wattage: 20W/30W/40W
Max Lumens: 5,800lm
CCT: 3500K|4000K|5000K
Features & Benefits
- Slim Linear Design with Selectable Wattage & CCT
- Up to 11,600 Lumens and Linkable Design
- 0-10V Dimming Standard
- 50,000-Hour Rated Life
Performance Data
| 3000K (>80 CRI) | 4000K (>80 CRI) | 5000K (>80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Selectable Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-STM-MW-MCCT-40W-4 Feet | 20W/30W/40W | 0.5A | 2,900lm | 135 lm/W | 4,350lm | 145 lm/W | 5,800lm | 140 lm/W |
Product Summary
Available in Selectable Wattage & CCT – 20W/30W/40W
The Consta Slim LED Strip Light combines a sleek, compact design with flexible lighting performance for modern commercial spaces. It features selectable wattage and CCT with fingertip-accessible side switches for quick configuration. Delivering up to 11,600 lumens and up to 145lm/W efficacy, Consta Slim also offers standard 0-10V dimming and optional accessories for surface mounting, pendant mounting, continuous linking, and sensing.
Application:
Commercial Space, Hospital Premises, Educational institutions, Storages, Electric Rooms, Stairs and Corridors.
Product Specification
Efficacy 140 lm/W
Beam Angle 120°
THD ≤20%
Operating Temp. -20°C - +50°C
Mounting Ceiling Mount
CCT (Selectable) 3000K / 4000K / 5000K
Input Voltage 100-277 Vac
Surge Protection L/N-PE:2kV,L-N:1kV
Warranty 5 Years
Housing Material Iron
CRI >80
Power Factor (PF) ≥0.9
Dimming 0-10V standard
Finish White
Lens Type PC Lens(Round)
