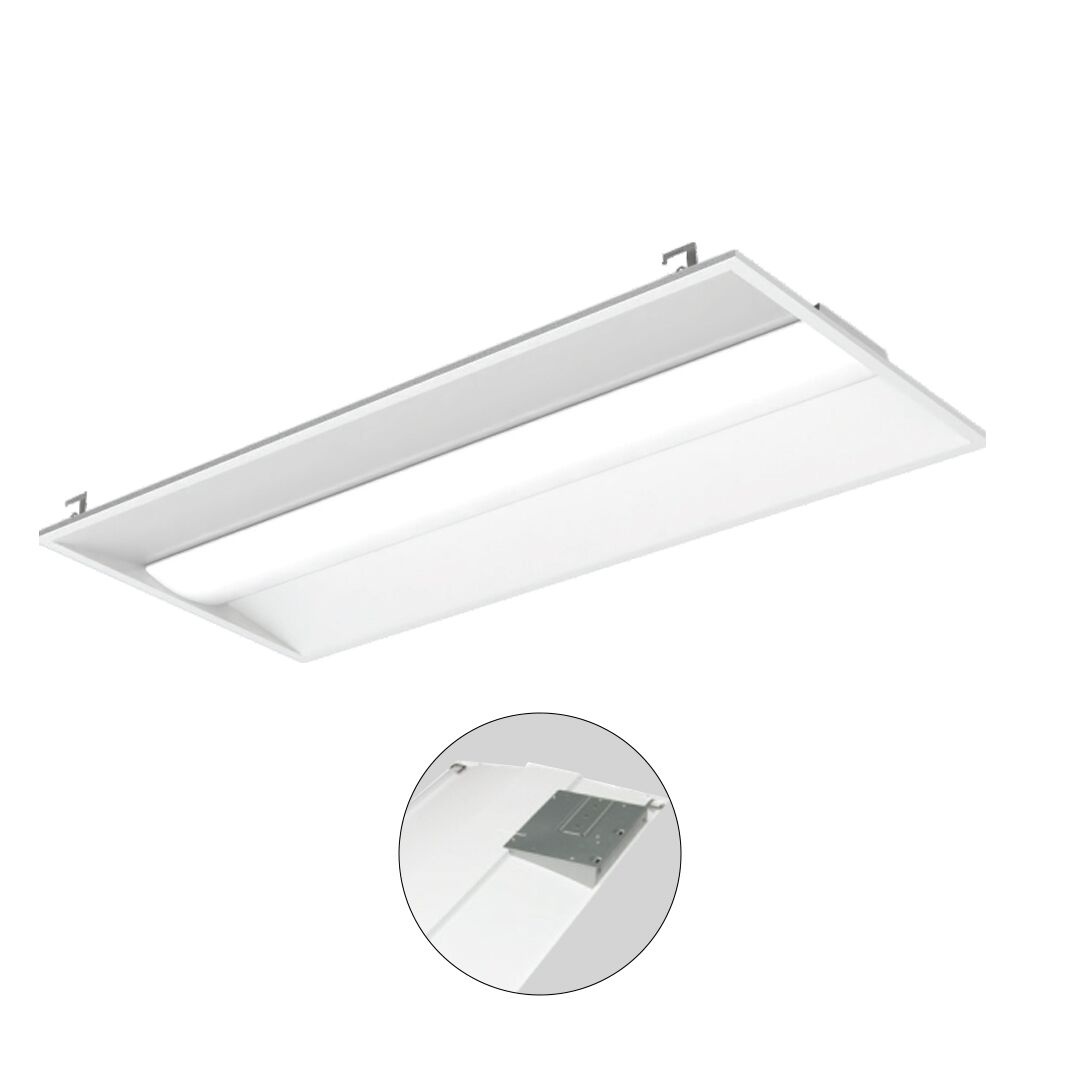

Troffer Center Basket Light 2X4 with Emergency Battery Backup
  • Troffer Center Basket Light 2X4 with Emergency Battery Backup

Troffer Center Basket Light 2X4 with Emergency Battery Backup (Coming Soon)

for Commercial Offices, Educational Institutions & Healthcare Facilities. Available in Selectable Wattages & CCT- 30W/40W/50W

The Troffer Center Basket Light 2X4 with Emergency Battery Backup is a versatile and reliable lighting solution designed for commercial environments that demand consistent performance and safety. This 2×4 emergency battery backup variant features fully selectable CCT and wattage, allowing for precise optimization to suit different applications. Engineered for high efficiency, it delivers uniform brightness while supporting optional motion sensor integration and emergency driver functionality, ensuring dependable illumination during power interruptions.

Applications:

Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Modern work spaces, and Hospital premises.

Category:

Variations

PRODUCT NUMBER SELECTABLE WATTAGE SYSTEM LUMENS LUMENS EFFICIENCY SELECTABLE CCT INPUT VOLTAGE
HL-TR-2X4-MW-MCCT-TROFFER-EM 30W/40W/50W 6,250lm 125 lm/W 3500K/4000K/5000K 120-277 Vac
Max Lumens

6,250lm

Wattage

30W/40W/50W

Color Temperatures

3500K/4000K/5000K

dlc listed logo
etl listed logo
UL Logo
selectable_wattages
selectable_cct_35-4-5

Features & Specifications


  • Fully selectable CCT & wattage for maximum optimization
  • Built-in emergency battery backup in case of power outages
  • Equipped with Integral NEC-compliant earthquake clips for safety.
  • ETL and UL listed, making it suitable for both dry and damp locations.

Frequently Asked Questions (FAQ's)

How does the emergency battery backup function?
The integrated emergency battery activates automatically when main power fails, providing temporary illumination for safe movement and visibility. This feature supports life-safety lighting requirements and helps facilities meet emergency lighting codes in commercial and institutional buildings.
Can the light output be adjusted?
Yes, selectable wattage enables installers to adjust lumen output during installation. This supports energy optimization, lighting design flexibility, and future adaptability without replacing fixtures, making it practical for both new projects and retrofit applications.
What safety features are included?
The troffer provides emergency illumination during outages and is built to meet electrical safety listings. Uniform, low-glare light improves visibility and visual comfort, supporting safer work environments and reducing risks associated with poor lighting conditions.
